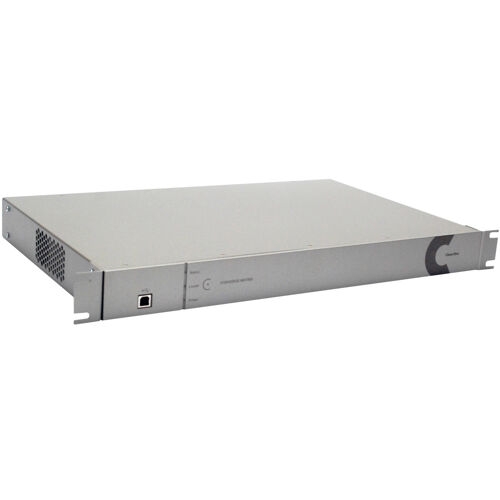

CONVERGE Matrix 64 EX Converge Matrix, Type B/USB 2.0 with 64x64 Dante channels, 4 Line Inputs, 4 Line Outputs
Please sign in so that we can notify you about a reply
ClearOne’s CONVERGE MATRIX audio mixer and router opens new opportunities for largescale pro audio installations. Featuring up to 512 x 512 audio channels, it seamlessly integrates with the CONVERGE product line and any other 3rd party products, using Dante™ audio-over-IP networking technologies. It is ideal for audio distribution applications like sound reinforcement, live announcements, pre-recorded audio, emergency information, background music, and paging.
Features- CONVERGE MATRIX supports up to 512x512 audio channel matrix
- Comes with multiple channel size: 512x512, 256x256, 128x128, 64x64
- Expands using field upgradable Expansion Card
- Distributes digital audio using Dante networking technology
- Mixes and routes audio channels
- Works with all CONVERGE units (840T, 880, 880T, 880TA, 8i, SR1212, SR1212A, TH20, VH20) & CONNECT Dante bridge and WS800 wireless mic system
- Works with any 3rd party Dante products
- Shows full matrix view, filtered matrix view based on groups/zones
- Provides highly scalable, reliable, modular system adds flexibility
- Offers complete system redundancy support for network and device
Brand:
ClearOne
Product Type:
Converge Matrix
Specifications
Applications:
Government Facility, Corporate Building, Transportation Center/Airport, University, Houses of Worship, Hospitality & Entertainment Venue, Convention Center/Auditorium, Healthcare Center, Cruise Ship
Performance
Frequency Rating:
20Hz to 22kHz
Inputs and Ports
Connector Type:
Type B, USB 2.0
Power
Maximum Operating Voltage:
240V AC
Minimum Operating Voltage:
100V AC
Phantom Power (Yes/No):
Yes
Dimensions
Width:
43.2cm
Depth:
4.4cm
Height:
27.3cm
Other
Voltage Rating:
100 TO 240V AC
