102XL Dual Channel Balanced Mono Audio Mixer, XLR Connector
Please sign in so that we can notify you about a reply

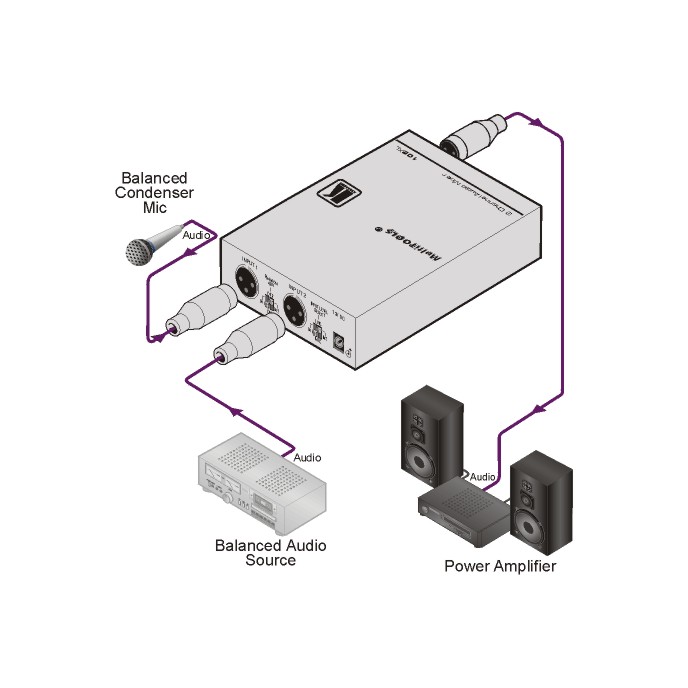

The 102xl is a high-performance 2-channel mono audio mixer for balanced line level and mic level mono audio signals. The unit mixes two mono inputs and produces a mixed audio output signal.
Features
- S/N Ratio - 91.5dB (line level), 62.5dB (mic level)
- Line or Mic Level - Input selectable
- Phantom Power - 48V DC (input selectable)
- Level (Gain) Control - Input 1, input 2, and master
- Compact MultiTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter
- Applications
- Live Stage & Studio Audio Mixing
- Presentation Systems & press conferences
Brand:
Kramer
Part number:
90-70300090
Product Type:
Balanced Mono Audio Mixer
Specifications
Mono Line Input:
2
Rack Mountable (Yes/No):
Yes
Special Features:
Selectable Microphone Input - Dynamic or Condenser Microphone with Bias Voltage, Talkover Button - Microphone Input Signal Mutes Line Audio Output when a Microphone Detects Sound, Compact Kramer TOOLS - 3 Units Can be Rack Mounted Side-by-Side in a 1U Rac
Applications:
Live Stage & Studio Audio Mixing, Presentation Systems & Press Conferences
Includes:
Power Supply Unit
Performance
Maximum Frequency Rating:
>100kHz
Signal-to-Noise Ratio:
91.5dB (Line Level), 62.5dB (MIC Level)
Frequency Rating:
>100kHz
Inputs and Ports
Connector Type:
XLR
Stereo Pair Input:
1
Number of Microphone Input:
2
Number of Ports:
2
Power
Maximum Operating Voltage:
12V DC
Current Rating:
140mA
Phantom Power (Yes/No):
Yes
Dimensions
Width:
10.6cm
Depth:
10.3cm
Height:
4.36cm
Weight:
0.3kg
Shipping Weight:
0.7kg
Other
Voltage Rating:
12V DC
