102MX Dual Channel Stereo Audio Mixer, RCA Connector
Please sign in so that we can notify you about a reply

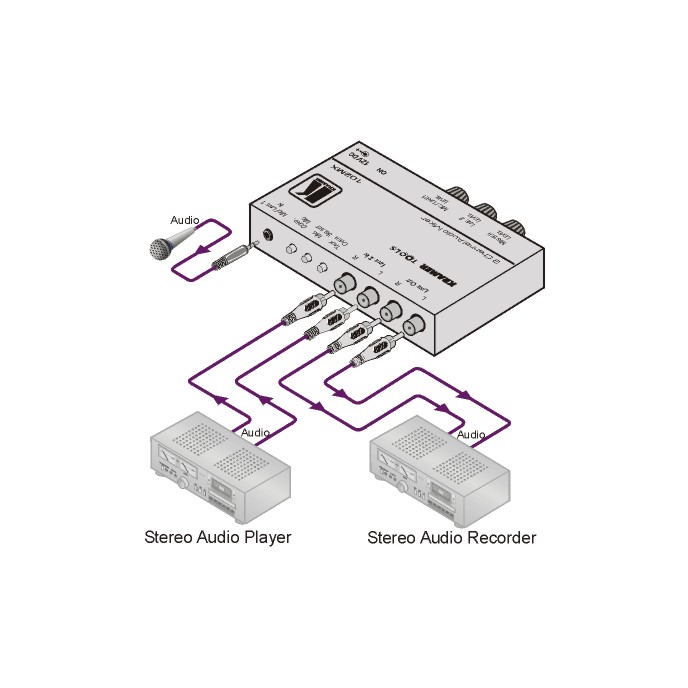

The 102MX is a high-performance 2-channel stereo audio mixer for line level and mic level audio signals. It mixes one line level input with either a microphone or a second line level input and produces a mixed audio output signal.
Features
- S/N Ratio - 69dB
- Level (Gain) Control - Line 1 (or microphone), line 2, and master level
- Selectable Microphone Input - Dynamic or condenser microphone with bias voltage
- Talkover Button - Microphone input signal mutes line audio output when a microphone detects sound
- Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter
Brand:
Kramer
Part number:
90-011290
Product Type:
Stereo Audio Mixer
Specifications
Rack Mountable (Yes/No):
Yes
Special Features:
Selectable Microphone Input - Dynamic or Condenser Microphone with Bias Voltage, Talkover Button - Microphone Input Signal Mutes Line Audio Output when a Microphone Detects Sound, Compact Kramer TOOLS - 3 Units Can be Rack Mounted Side-by-Side in a 1U Rac
Applications:
Small Audio Studio Applications, Presentation Applications for Microphone/Line Mixing Simultaneously
Humidity:
10 to 90%
Includes:
Power Supply Unit, Mounting Bracket
Performance
Maximum Frequency Rating:
100kHz
Signal-to-Noise Ratio:
69dB
Frequency Rating:
100kHz
Inputs and Ports
Connector Type:
RCA
Stereo Pair Input:
1
Number of Microphone Input:
2
Number of Ports:
2
Power
Maximum Operating Voltage:
12V DC
Current Rating:
40mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Shipping Weight:
0.5kg
Other
Voltage Rating:
12V DC
