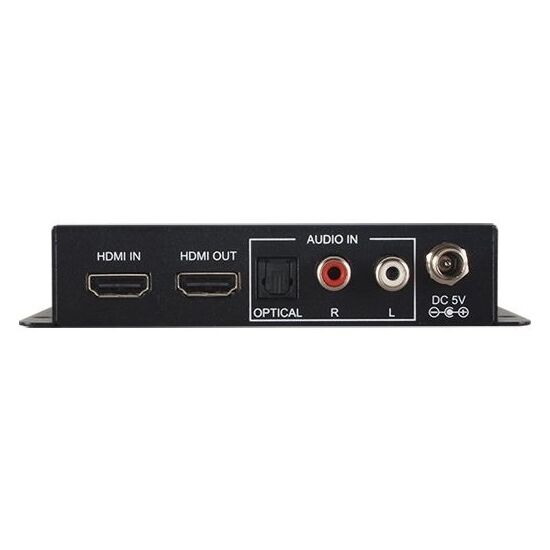

CPLUS-V11SI Audio Inserter, 4K UHD HDMI
Please sign in so that we can notify you about a reply
CPLUS-V11SI – embedder of a stereo audio signal (2xRCA) or digital 5.1-channel S/PDIF (TOSLINK) with a sampling frequency of up to 192 kHz into a pass-through HDMI 2.0 signal with a resolution of up to 4096x2160/60 (with YUV 4:4:4 digital space) with HDCP 2.2 and CEC, 600 MHz bandwidth. Supported audio formats: LPCM 2/5.1/7.1, Dolby Digital 2/5.1, DTS 2/5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio.
Features- Supports HDMI (including 4K2K/60, 4:4:4), HDCP 2.2 and DVI
- Integrates stereo audio and multi-channel digital audio into HDMI
- Accepts audio signals via TOSLINK optical port and analog unbalanced stereo audio port
- HDMI and S/PDIF embedded audio sampling rate on optical port - up to 192 kHz
- End-to-end CEC control signaling
- Works with signals up to 4Kx2K resolution (3840×2160, 24/25/30/50/60, YUV 4:4:4 and 4096×2160, 24/25/30/50/60, YUV 4:4:4)
- It is possible to connect devices with DVI interfaces using an HDMI-DVI adapter (purchased separately)
Brand:
Cypress Technology
Product Type:
Audio Inserter
Specifications
Cable Length:
15m
Maximum Operating Temperature:
40°C
Colour:
Black
L/R Audio Format Type:
Analog Stereo 2CH
Number of Channels:
Special Features:
HDMI Supports High-Bit-Rate (HBR) Audio, Supports Cec Bypass
Power Rating:
3.42W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×5V/2.6A Power Adaptor, 1xOptical Adaptor
Performance
Video Bandwidth:
6Gbps
Audio Sample Rate:
192kHz
Inputs and Ports
Input Port Type:
1×HDMI, 1×Optical, 2×RCA (Analog Audio), 1×Mini-USB (Service only)
Output Port Type:
1×HDMI
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.6cm
Height:
3cm
Weight:
358g
Other
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified, US/EU Standards
