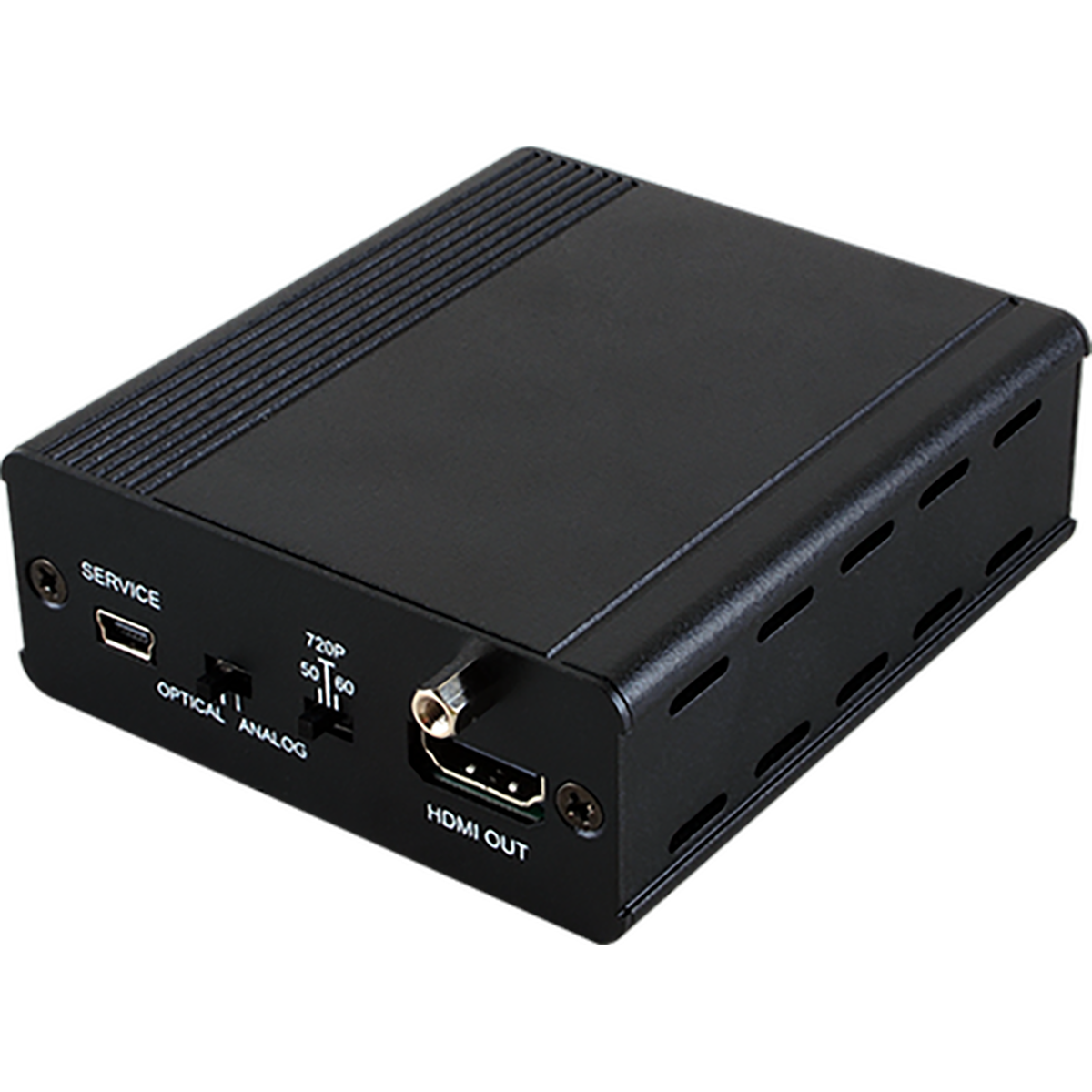

CLUX-11HB HDMI Audio Inserter with freerun video
Please sign in so that we can notify you about a reply
This unit is designed to convert analog or digital audio signals into an HDMI output, allowing easy integration of audio only sources with HDMI distribution systems. This device adds a 'blue-screen' video feed with a simple on-screen display that shows the current audio input so that any HDMI AV Receiver, display or matrix will accept the audio signal. It supports digital audio sampling rates up to 192 kHz and stereo analog audio sampling rates up to 48 kHz.
Features
- Supports Analog to Digital audio Conversion (ADC)
- Supports Optical audio sampling rate 32 kHz to 192 kHz and LPCM 2CH
- Supports analog (L/R) audio sampling rate of 48 kHz
- Plug and play, with no software required
Brand:
Cypress Technology
Product Type:
Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Output Audio Format Type:
LPCM 2 CH
Converter Type:
Analog to Digital Audio
Special Features:
Supports Analog to Digital Audio Conversion (ADC), Supports Optical Audio Sampling Rate 32kHz to 192kHz and LPCM 2 CH, Supports L/R Audio Smapling Rate at 48kHz, Plug and Play with no Software Require
Applications:
L/R or Optical Audio Convert to HDMI Output, HDCP Regulated HDMI Devices, Audio Management and Control System
Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xL/R & Optical Audio to HDMI Bridge, 1x5V DC Power Adaptor, Operational Manual
Performance
Signal-to-Noise Ratio:
>80dB
Frequency Rating:
±1dBFS
Sample Rate:
L/R: 48kHz
Crosstalk Level:
<-80dB

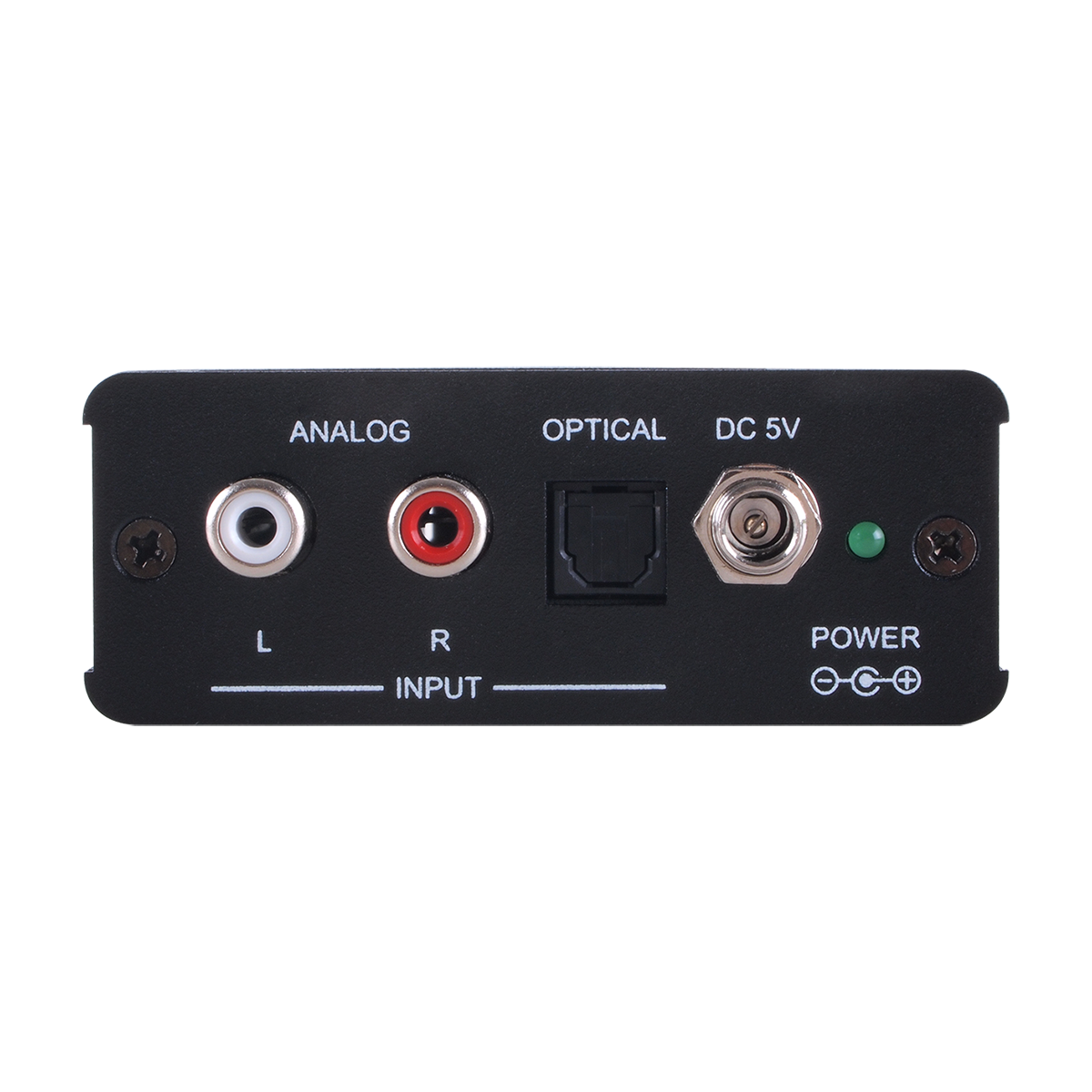

Inputs and Ports
Input Audio Format Type:
Analog 2 CH
Number of Ports:
2 (Input), 1 (Output)
Power
Current Rating:
2.6A
Dimensions
Width:
7.85cm
Depth:
9.5cm
Height:
3cm
Weight:
170g
Other
Standards Met:
CE, FCC Compliant, UL Certified
