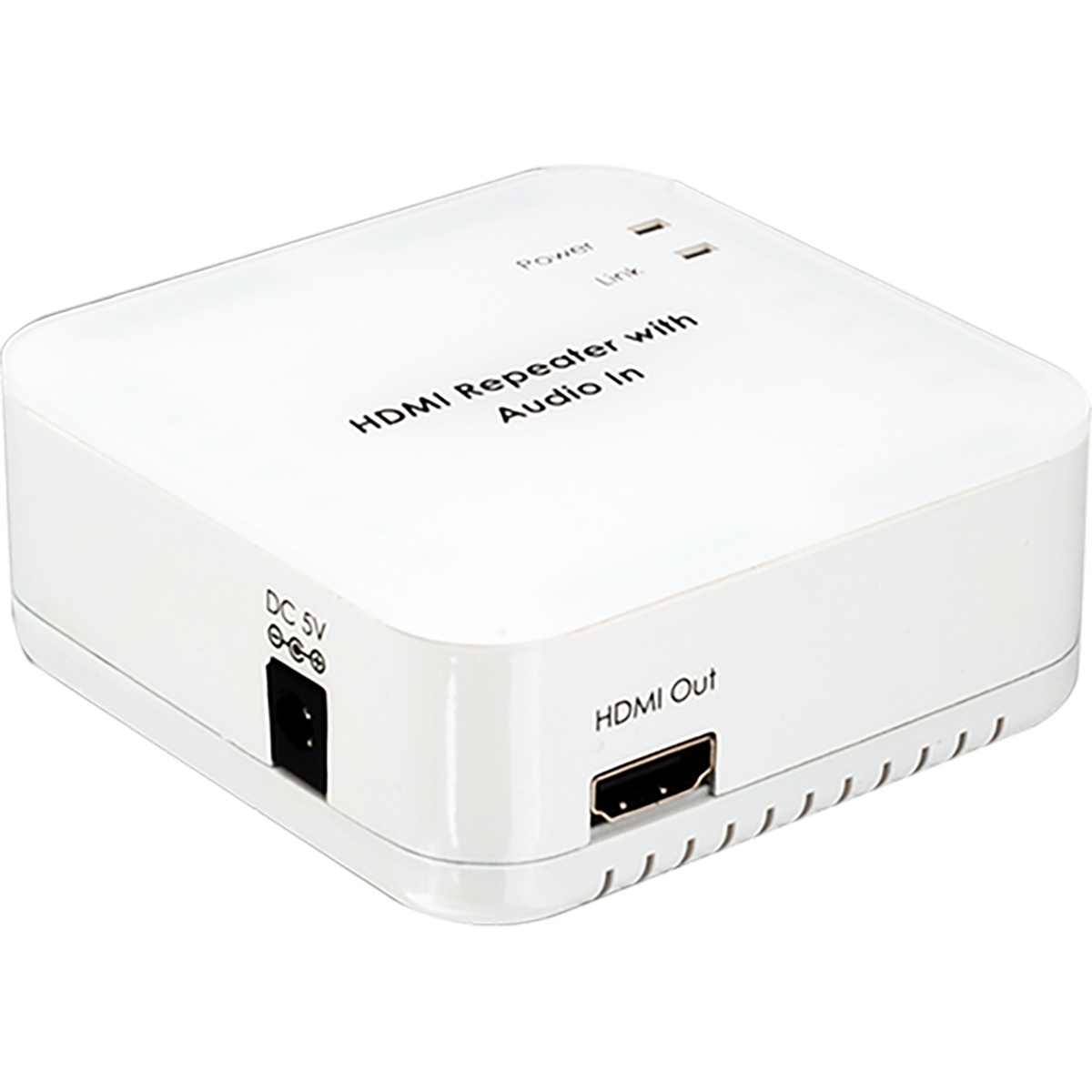

CLUX-11CA HDMI Audio Embedder

The HDMI Audio Inserter lets you insert an external audio signal into your HDMI or DVI signal path. The unit allows you to insert stereo and multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal.

Features

  • Supports HDMI audio sampling rates up to 192 kHz
  • Supports Optical S/PDIF audio sampling rate up to 48 kHz
  • Supports TMDS clock frequency up to 225 MHz
  • Supports high-bit-rate (HBR) audio
  • HDMI cable distance tested with 1080p at 8-bit or 12-bit resolution, the input and output can run up to 15 meters (8-bit) or 10 meters (12-bit)
  • Low power consumption
  • Supports 3D signal
Brand:
Cypress Technology
Product Type:
HDMI Audio Inserter
Specifications
Cable Length:
15m, 10m
Maximum Operating Temperature:
+40°C
Colour:
White
Optical Audio Format:
LPCM 2, Dolby Digital, DTS Digital Audio 5.1
Special Features:
Supports Optical S/PDIF Audio Sampling Rate Up to 48kHz, Supports TMDS Clock Frequency Up to 225MHz, Supports Highbits-rate (HBR) Audio, HDMI Cable Distance Tested with 1080p at 8bits or 12bits Resolution, the Input and Output can Run Up to 15m (8bits) or
Power Rating:
2.7W
Chassis Material:
Plastic
Applications:

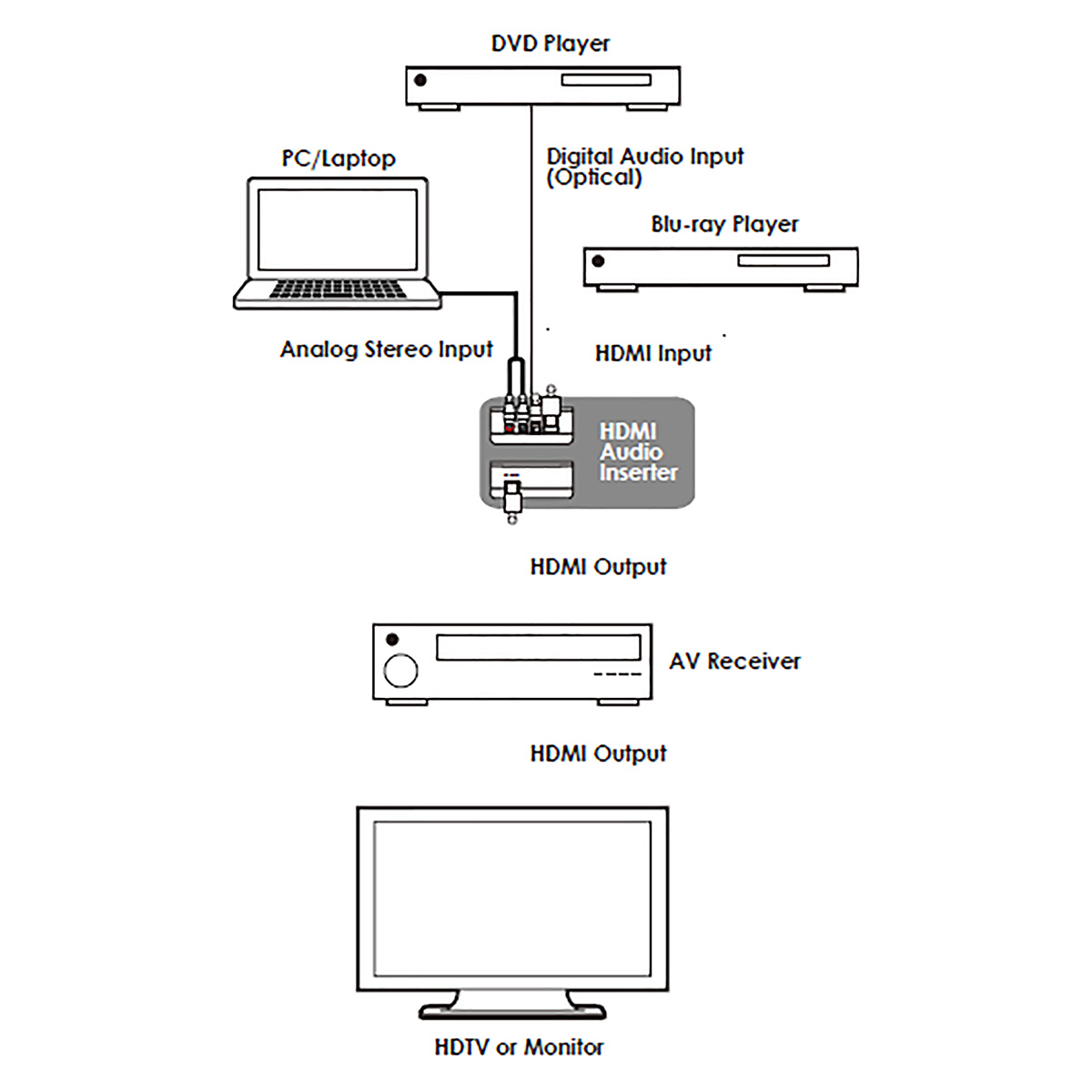

Embeds External Audio into HDMI Signal, Integrates Audio and DVI Video to HDMI Signal Output, Replaces Audio in the Original HDMI Signal by other Input Source
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
HDMI Audio Inserter, 5V/1A Power Adaptor, Operation Manual
Performance
Audio Sample Rate:
Up to 192kHz
Inputs and Ports
Input Port Type:

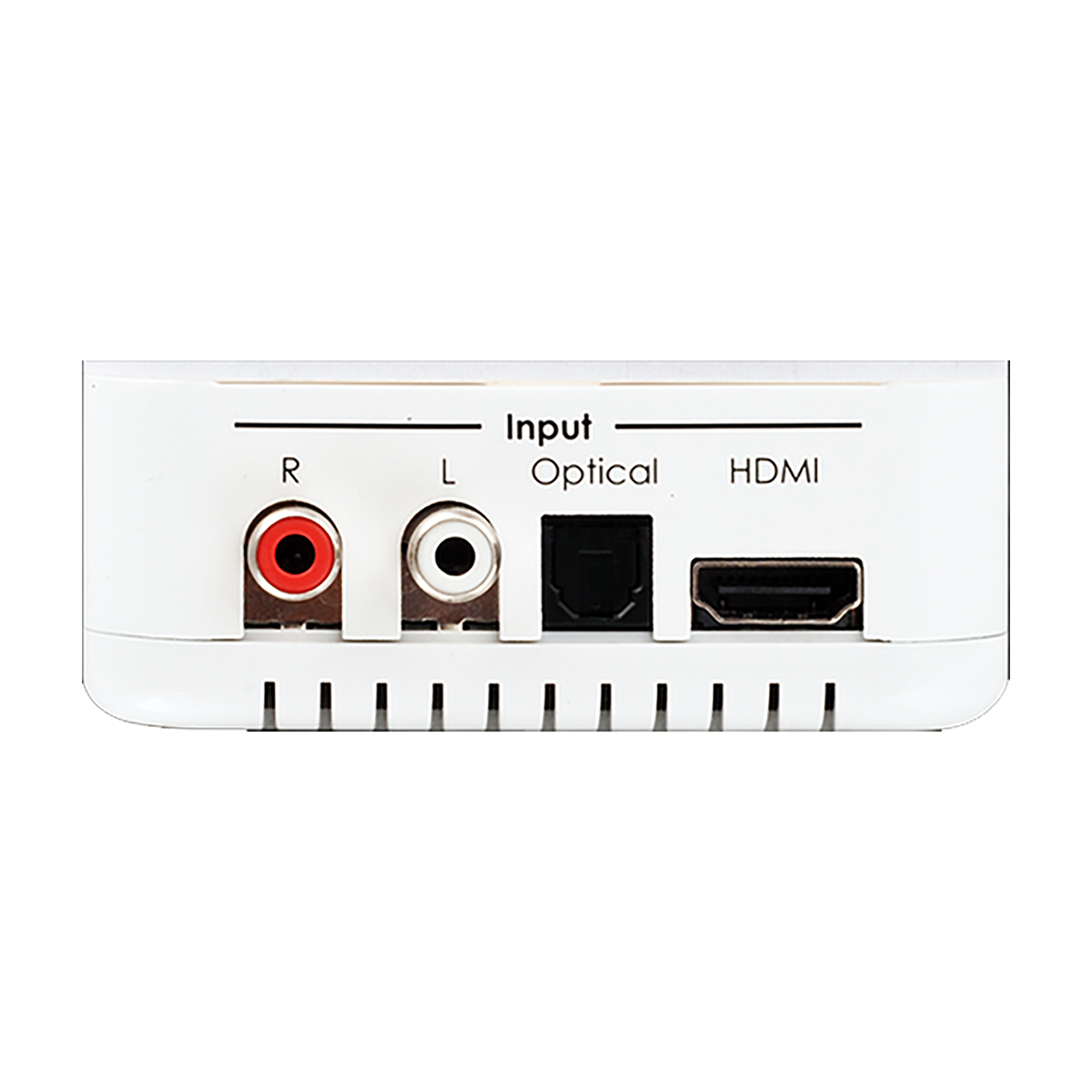

1xHDMI, 1xOptical (Digital Audio), 1xL/R (Analog Audio)
Output Port Type:

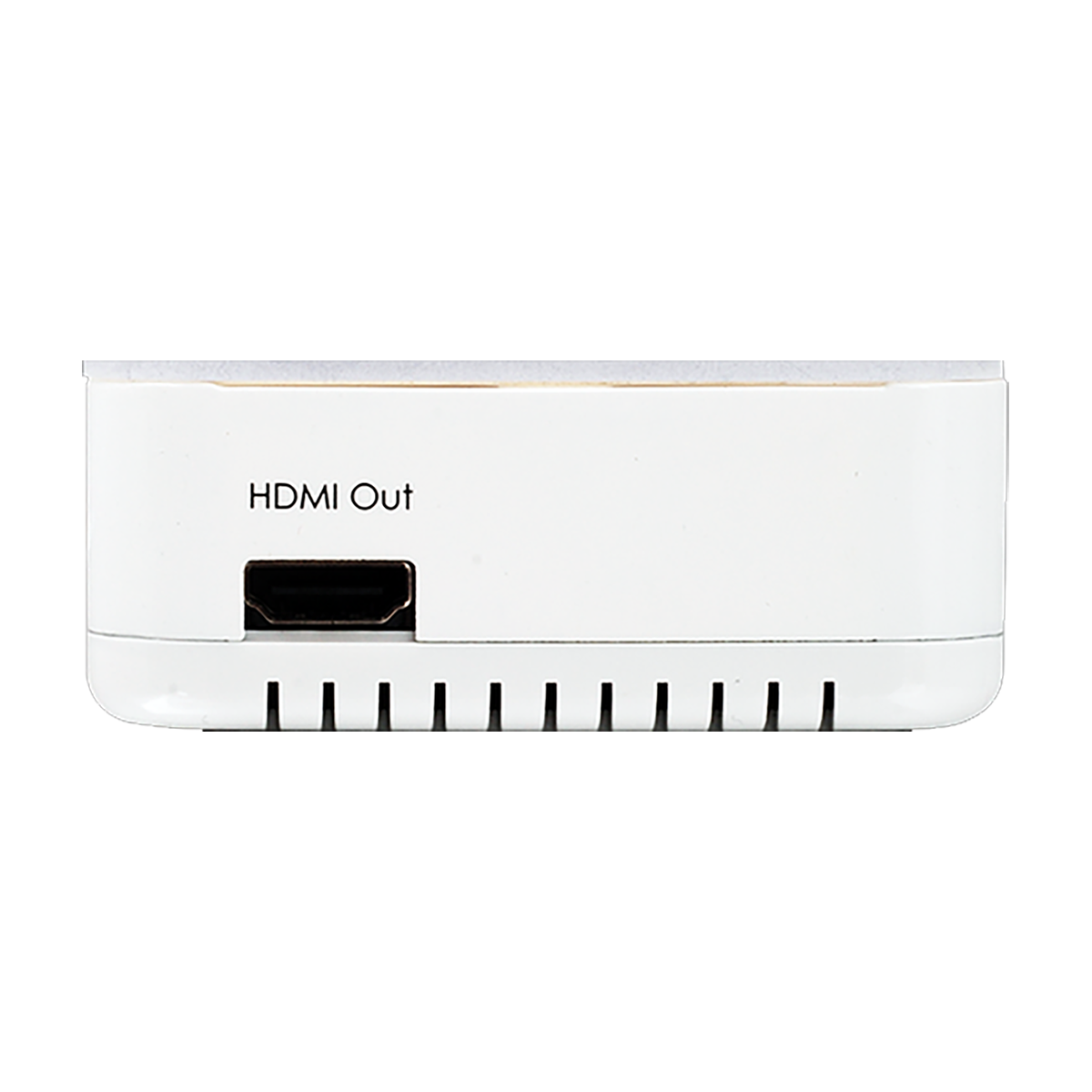

1xHDMI
Power
Current Rating:
1A, 1.2A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
9.07cm
Depth:
8.5cm
Height:
3.4cm
Weight:
107g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
