CH-POC1 HDBaseT PoC Power Inserter
Please sign in so that we can notify you about a reply
The CAT5e/6/7 Power Inserter is designed to provide 24V power to a connected PoE-capable HDBaseT Receiver unit for it to operate without power supply. In a simple application of HDBaseT PoE extender set, the Receiver unit can be powered by the connected transmitter unit, over a single run of CAT5e/6/7 cable. However, when comes to an integration of multiple HDBaseT devices, the PoE-capable Receiver unit might not always be able to benefit from the PoE feature as the transmitter could be either non-PoE or its power output is used by other device, to work around such a situation you can install CAT5e/6/7 Power Inserter to the system to insert the power required by the Receiver unit.
Features- Application 24V power insertion
- Sends power to a PoC receiver
- Supports HDBaseT signal bypass
- 24V OUT for power cascading
- Compact and easy to use
- Includes 24V 2.7A power adaptor
Brand:
Cypress Technology
Specifications
Product Type:
HDBaseT PoC Power Inserter
Maximum Operating Temperature:
40°C
Colour:
Black
Special Features:
Supports Power Insertion, Supports HDBase T Signal Bypass
Power Rating:
0.3W
Chassis Material:
Metal
Applications:
Lecture Room / Class Room Installation, Showroom Display / Show Window Display Installation, Game Console / Game Competition Installation
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x24V/2.7A DC Power Supply (with 3.5mm 2-Pole Terminal Block), 1xPower Cord, 1xOperation Manual
Inputs and Ports
Input Port Type:

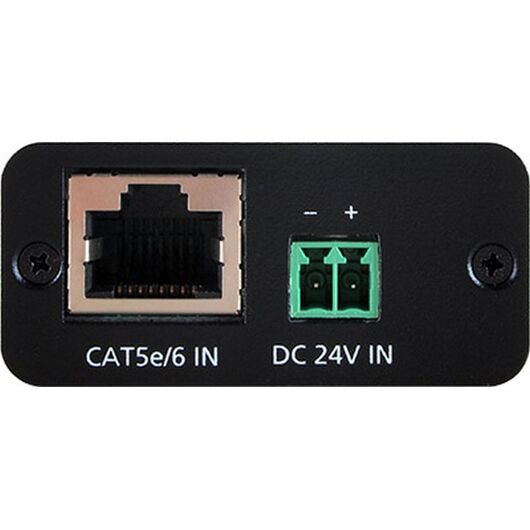

1xRJ-45, 1xDC 24V (3.5mm 2-pole Terminal Block)
Output Port Type:
1xRJ-45, 1xDC 24V (3.5mm 2-pole Terminal Block)
Power
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
5cm
Depth:
7.3cm
Height:
2.3cm
Weight:
353g
Other
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified, US/EU Standards
