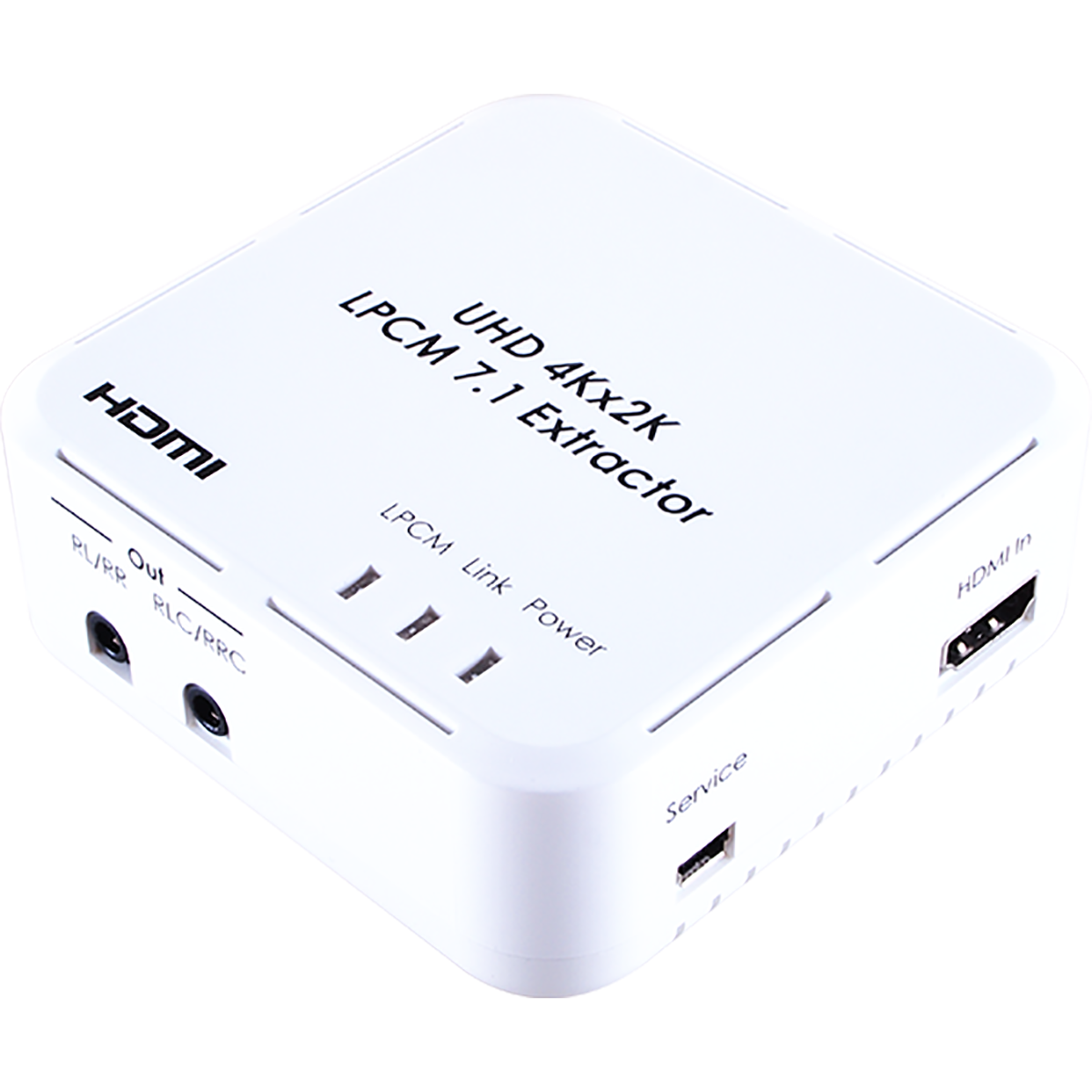

CPRO-11SE8 HDMI 4K2K Audio Extractor (up to LPCM 7.1)
Please sign in so that we can notify you about a reply
The HDMI ™ 4K×2K LPCM Extractor allows you to de-embed the audio signal from an HDMI source and output it. With this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or multi-channel audio, allowing you to output your audio signal to an external multichannel audio system or to extend your audio signal pathway. It also has the added benefit of 4K×2K and 3D support, allowing full resolution video and eliminating the need to downscale the image.
Features
- Compliant with HDMI, HDCP 1.2 and DVI 1.0
- Supports HDMI audio sampling rates up to 192 kHz
- Supports Optical (S/PDIF) digital audio sampling rates up to 192 kHz
- HDMI supports high-bit-rate (HBR) audio
- No HDMI output connection is required for analog or optical audio output
- Supports 4 mini-jack sockets for analog multi-channel audio output
- Supports maximum input and output HDMI cable lengths of up to 15 meters each at 1080p/8-bit resolution or 10 meters each at 1080p/12-bit or 4K×2K resolution

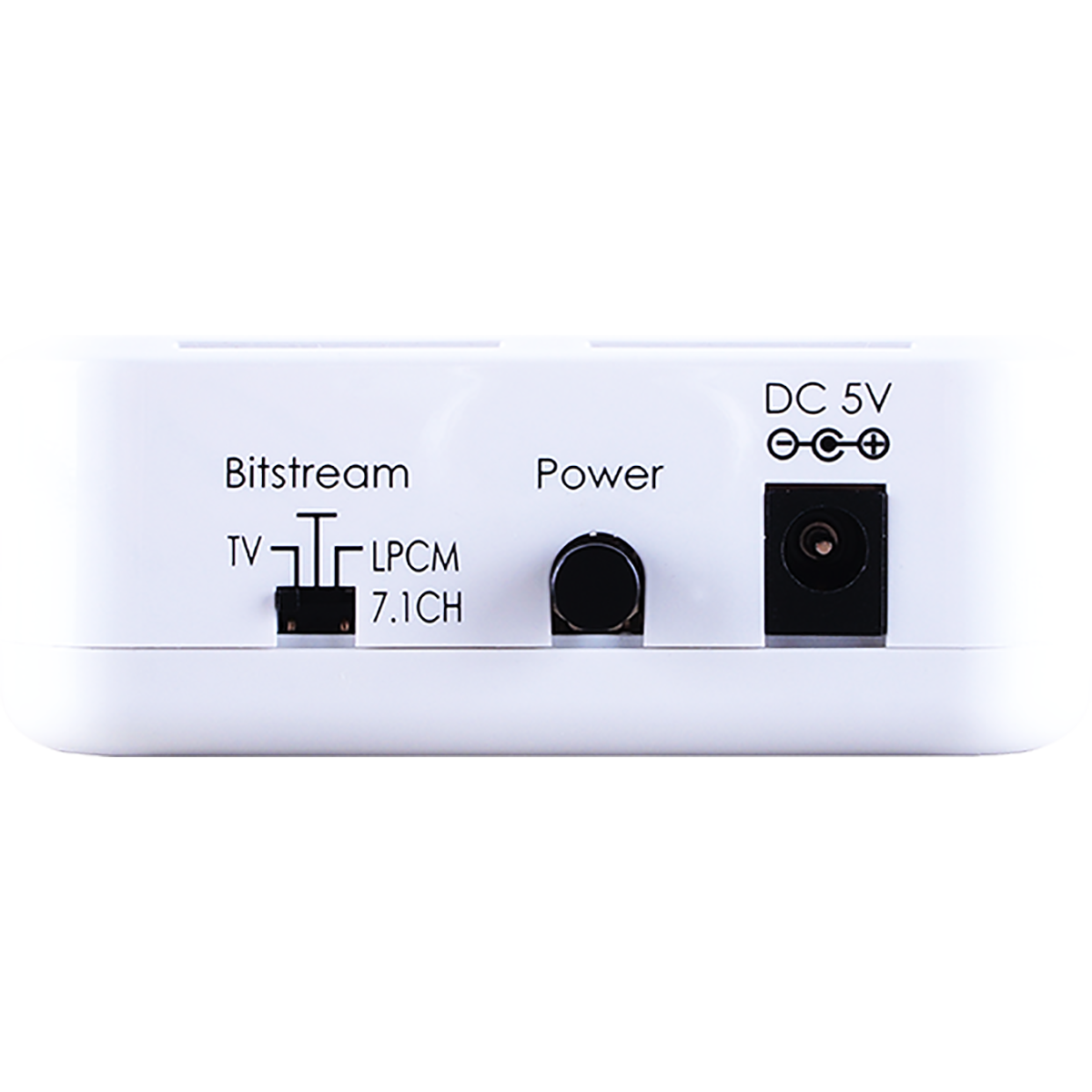

- Supports built-in audio EDID switching between LPCM 7.1CH, TV (external) EDID or Bitstream audio
- Supports CEC bypass function
- Supports 4K×2K resolution and 3D signals
Brand:
Cypress Technology
Specifications
Product Type:
Audio Extractor
HDMI Audio Format:
LPCM 2/5.1/7.1CH, Dolby Digital 2 to 5.1CH, DTS 2 to 5.1CH, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Maximum Operating Temperature:
+40°C
Colour:
White
L/R Audio Format Type:
Analog Stereo 7.1 CH
Optical Audio Format:
LPCM 2 CH, Dolby Digital 2 to 5.1 CH and DTS 2 to 5.1 CH
Special Features:
Compliant with HDMI, HDCP 1.2And DVI 1.0, Supports HDMI Audio Sampling Rate Up to 192kHz, Supports Optical S/PDIF Audio Sampling Rate Up to 192kHz, HDMI Supports Highbits-Rate (HBR) Audio, No HDMI Output Connection is Required to Receive Audio at the Anal
Power Rating:
2.37W
Chassis Material:
Plastic
Applications:
Game Entertainment on Monitor, Extend your Audio Signal, Audio Extraction for Non-HDMI AV Receivers or Wider Audio System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
HDMI 4Kx2K LPCM 7.1 Extractor, 5V Power Adaptor, Operation Manual
Performance
Resolution:
15m Each at 1080p/8bits Resolution or 10m Each at 1080p/12bits
HDCP Compliance Type:
1.2
Video Bandwidth:
10.2Gbps
Colour Depth:
8bits
Sample Rate:
Up to 192kHz
Inputs and Ports

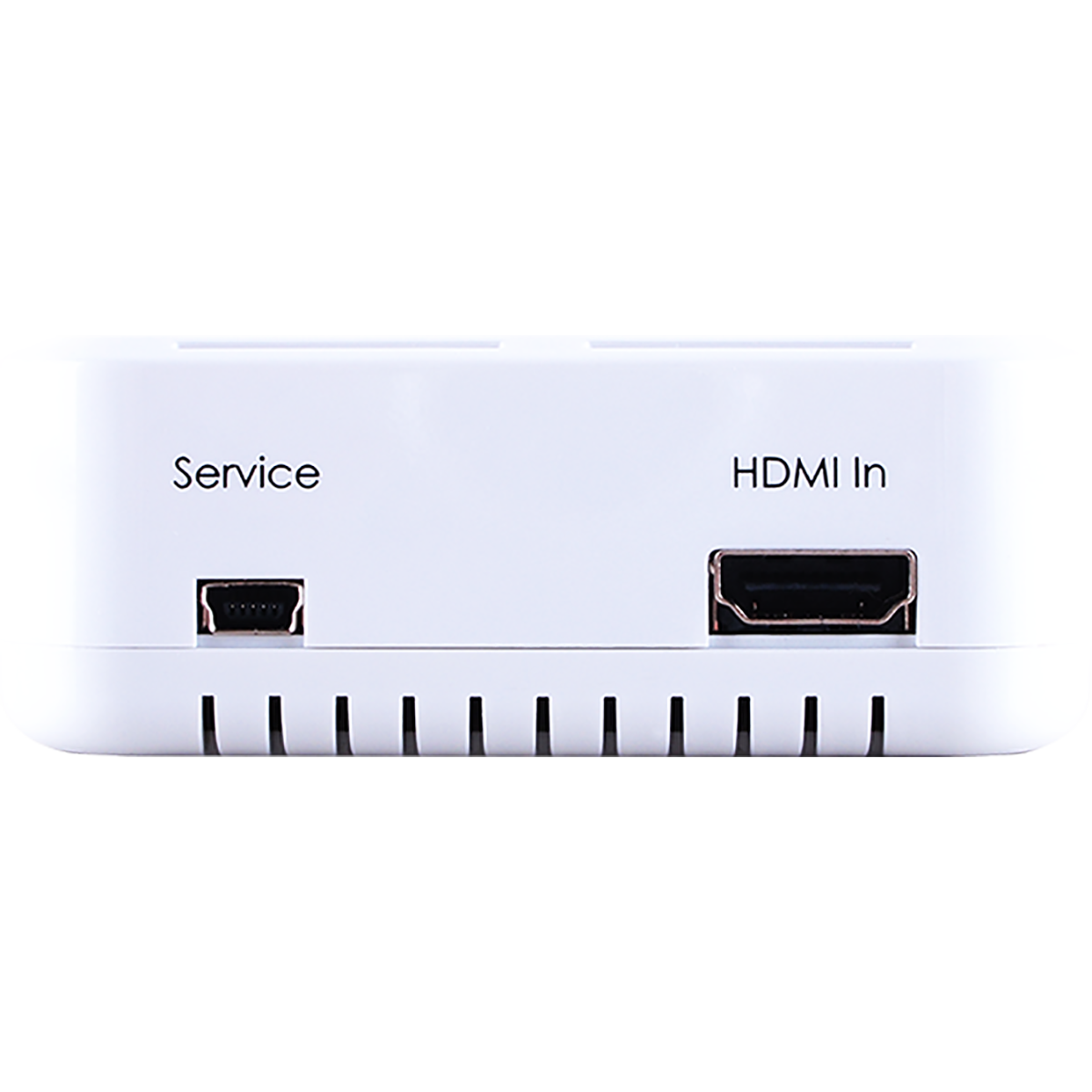

Input Port Type:
1xHDMI, 1xMini-USB (Service Only)

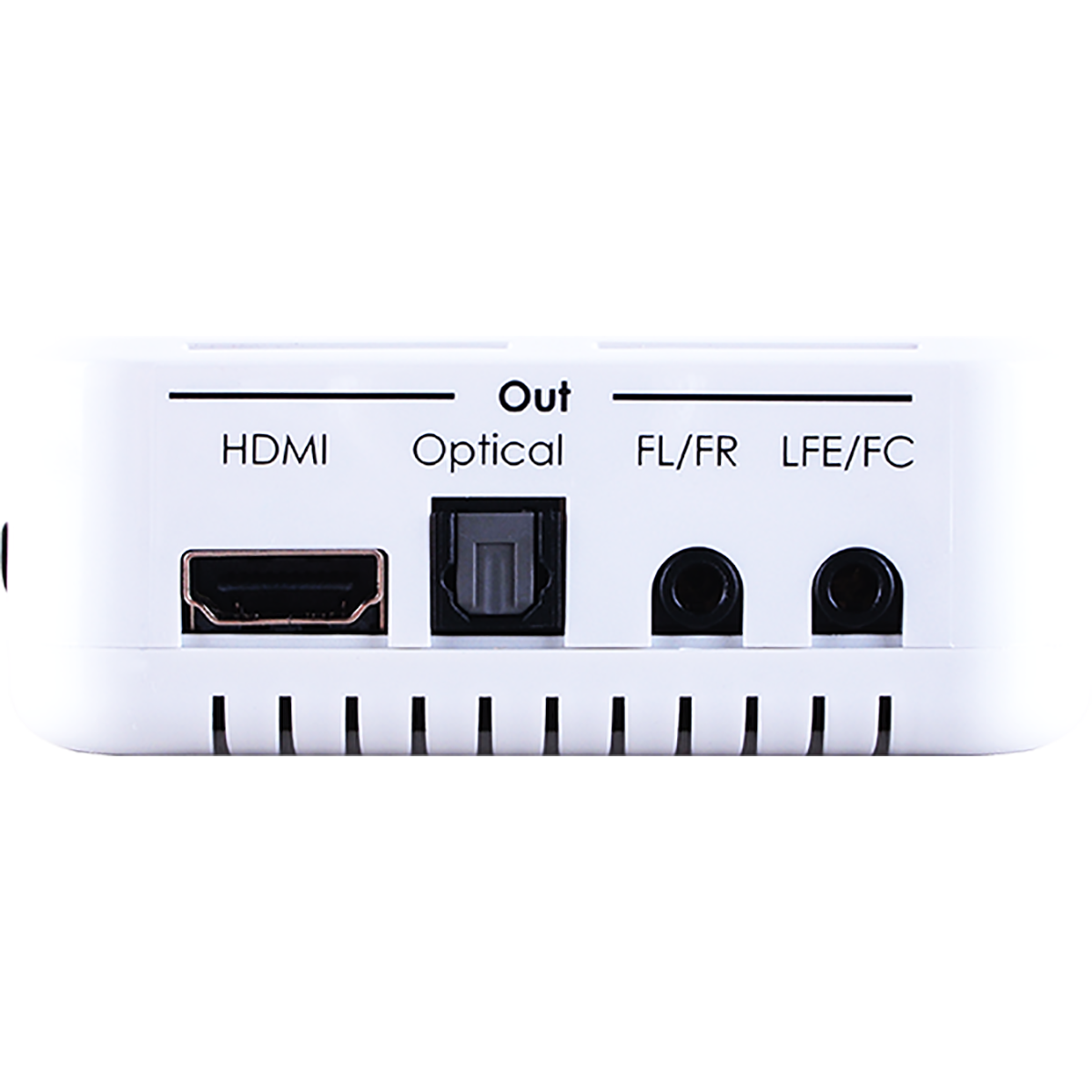

Output Port Type:
1xHDMI, 1xOptical, 4x3.5mm Mini-Jack
Power
Input Voltage:
5V
Current Rating:
1.2A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
8.5cm
Depth:
8.75cm
Height:
3.4cm
Weight:
102g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
