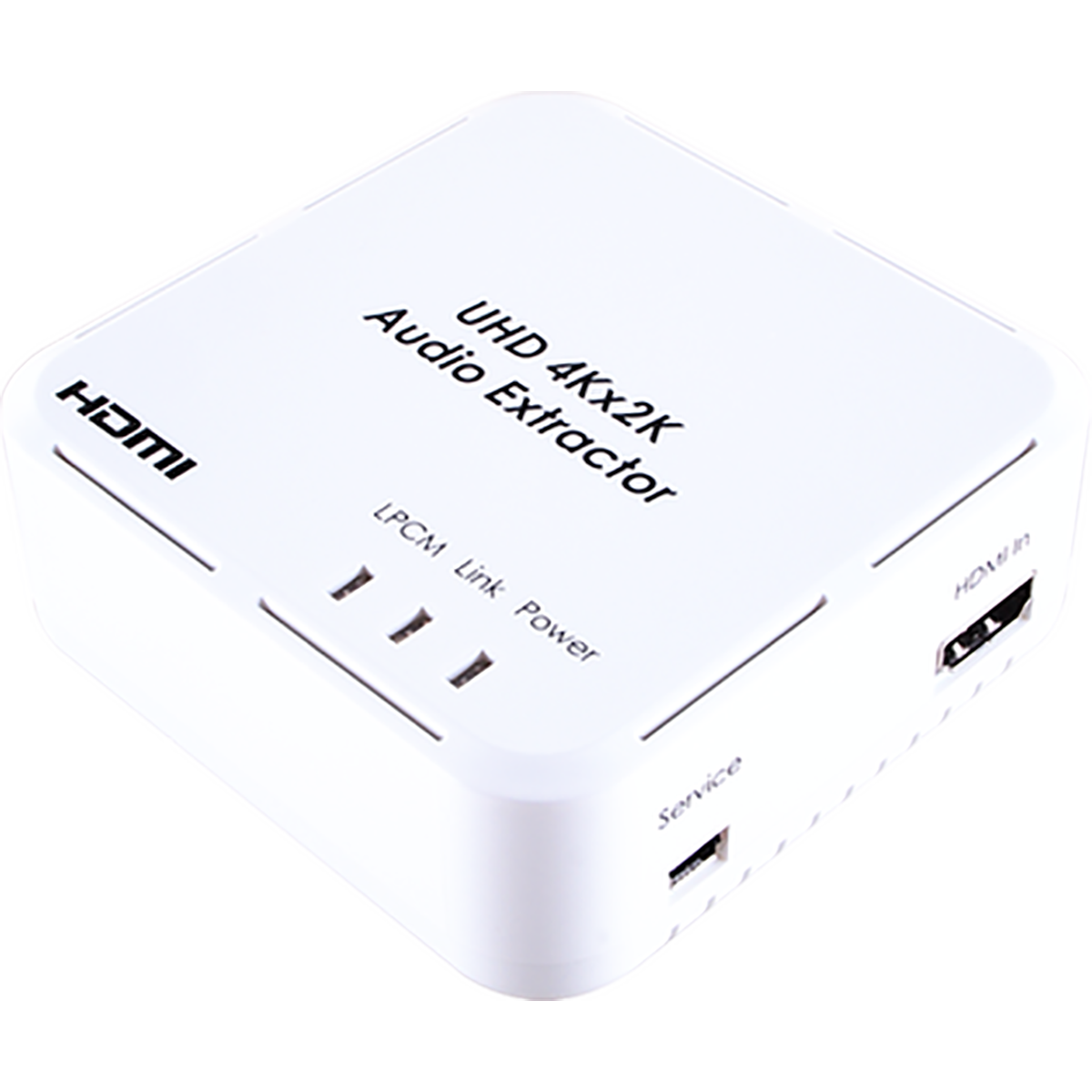

CPRO-11SE2 HDMI 4K2K Audio Extractor
Please sign in so that we can notify you about a reply

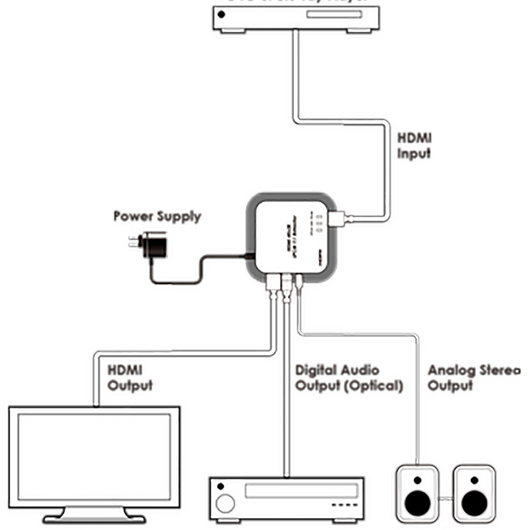

This HDMI Audio Extractor can extract up to 2 channels of LPCM audio or 5.1 channels of Bitstream audio from an HDMI source, allowing the user to convert high quality HDMI audio into more convenient analog (LPCM 2.0 sources only) or optical signals for use with powered speakers or non-HDMI AV receivers. Both the input and output HDMI ports support UHD resolution up to 4K@30Hz(4:4:4, 8-bit) are capable of providing high quality audio and video performance.
Features
- Supports HDMI and S/PDIF audio sampling rates up to 192kHz
- Analog audio extraction supports LPCM 2.0 sources , audio sampling rate up to 48 kHz
- Optical S/PDIF audio extraction supports LPCM 2.0 & Bitstream formats
- No HDMI output connection is required to receive audio at the analog and optical outputs
- Supports analog stereo L/R and Optical S/PDIF audio outputs

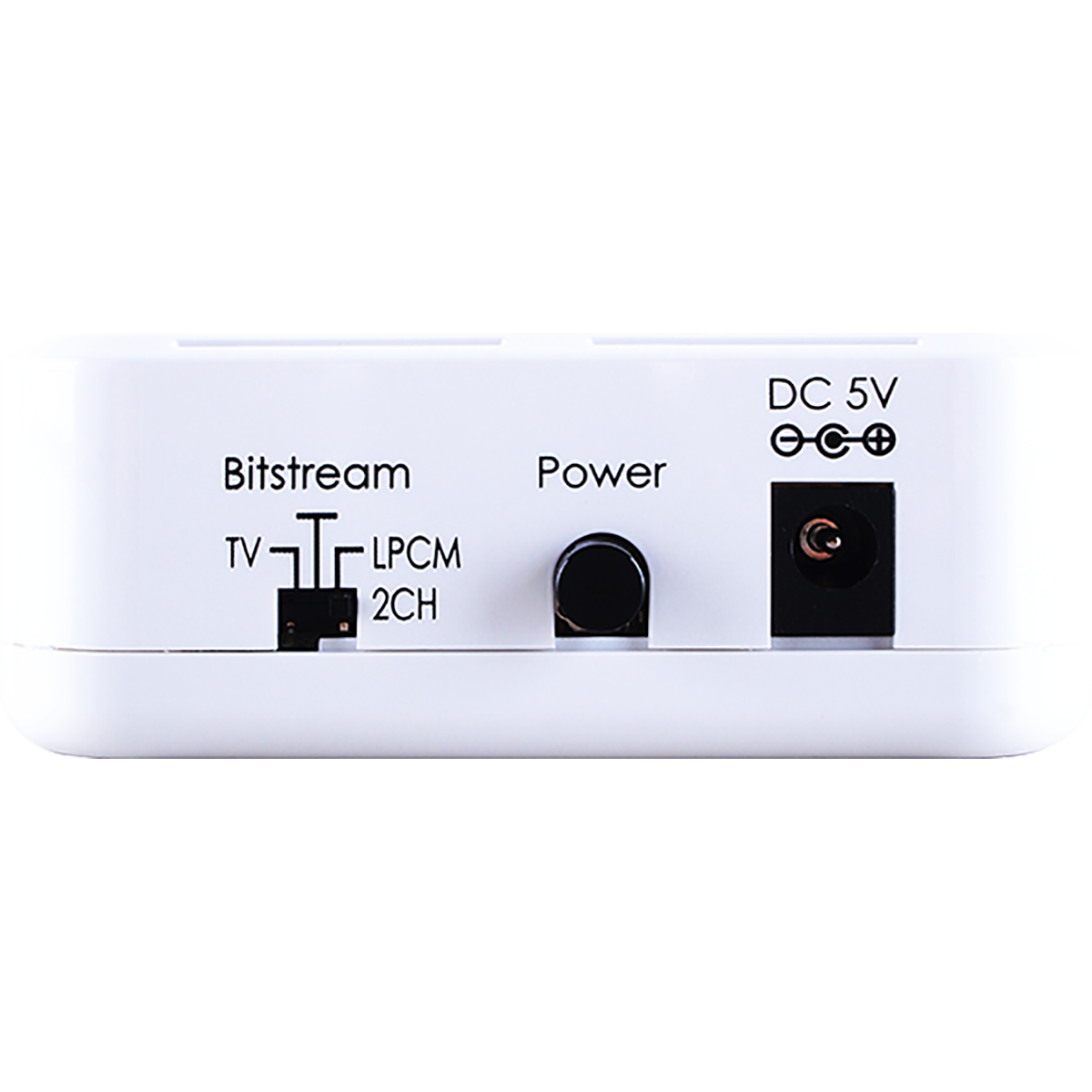

- Supports built-in audio EDID switching among LPCM 2CH, TV (external) EDID, and Bitstream audio
- Supports 4K@30Hz resolution and 3D signal
Note: When displaying HDMI 4K@30 signal, equivalent source signal, output display and HDMI cables are required in order to secure the best image display.
Brand:
Cypress Technology
Product Type:
Audio Extractor
Specifications
HDMI Audio Format:
LPCM 2/5.1/7.1CH, Dolby Digital 2 to 5.1CH, DTS 2 to 5.1CH, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Maximum Operating Temperature:
+40°C
Colour:
White
L/R Audio Format Type:
Analog Stereo 2 CH
Optical Audio Format:
LPCM 2 CH, Dolby Digital 2 to 5.1 CH, DTS 2 to 5.1 CH
Special Features:
Compliant with HDMI, HDCP 1.2And DVI 1.0, Supports HDMI Audio Sampling Rate Up to 192kHz, Supports Optical S/PDIF Audio Sampling Rate Up to 192kHz, Supports L/R Audio Sampling Rate Up to 48kHz, HDMI Supports Highbits-Rate (HBR) Audio, No HDMI Output Conne
Power Rating:
2.2W
Chassis Material:
Plastic
Applications:
Game Entertainment on Monitor, Extend your Audio Signal, Audio Extraction for Non-HDMI AV Receivers or Wider Audio System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
HDMI 4Kx2K Audio Extractor, 5V Power Adaptor, Operation Manual
Performance
Resolution:
15m Each at 1080p/8bits Resolution or 10m Each at 1080p/12bits or 4Kx2K
HDCP Compliance Type:
1.2
Video Bandwidth:
10.2Gbps
Colour Depth:
8bits
Colour Space:
4:4:4
Sample Rate:
Up to 192kHz
Inputs and Ports

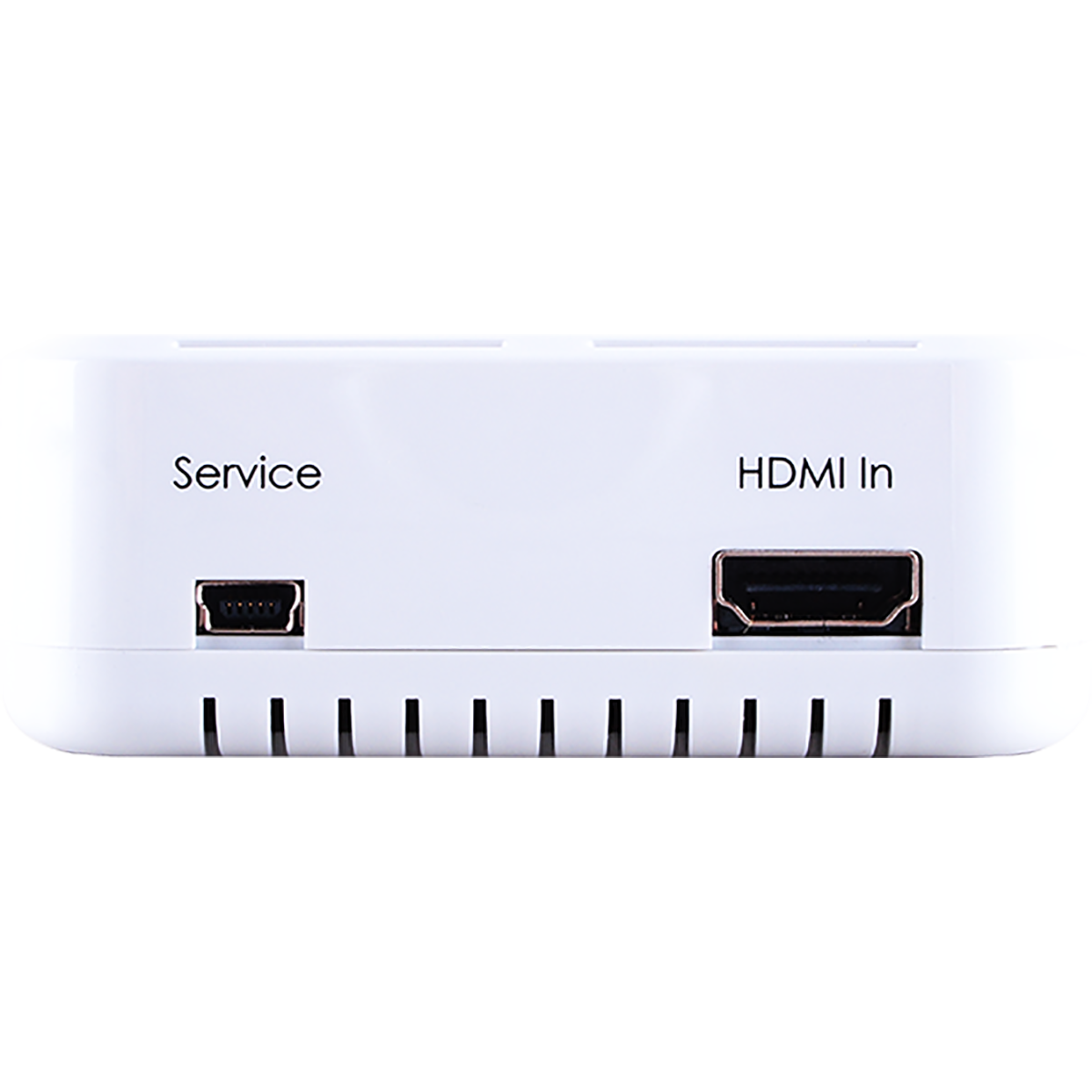

Input Port Type:
1xHDMI, 1xMini-USB (Service Only)

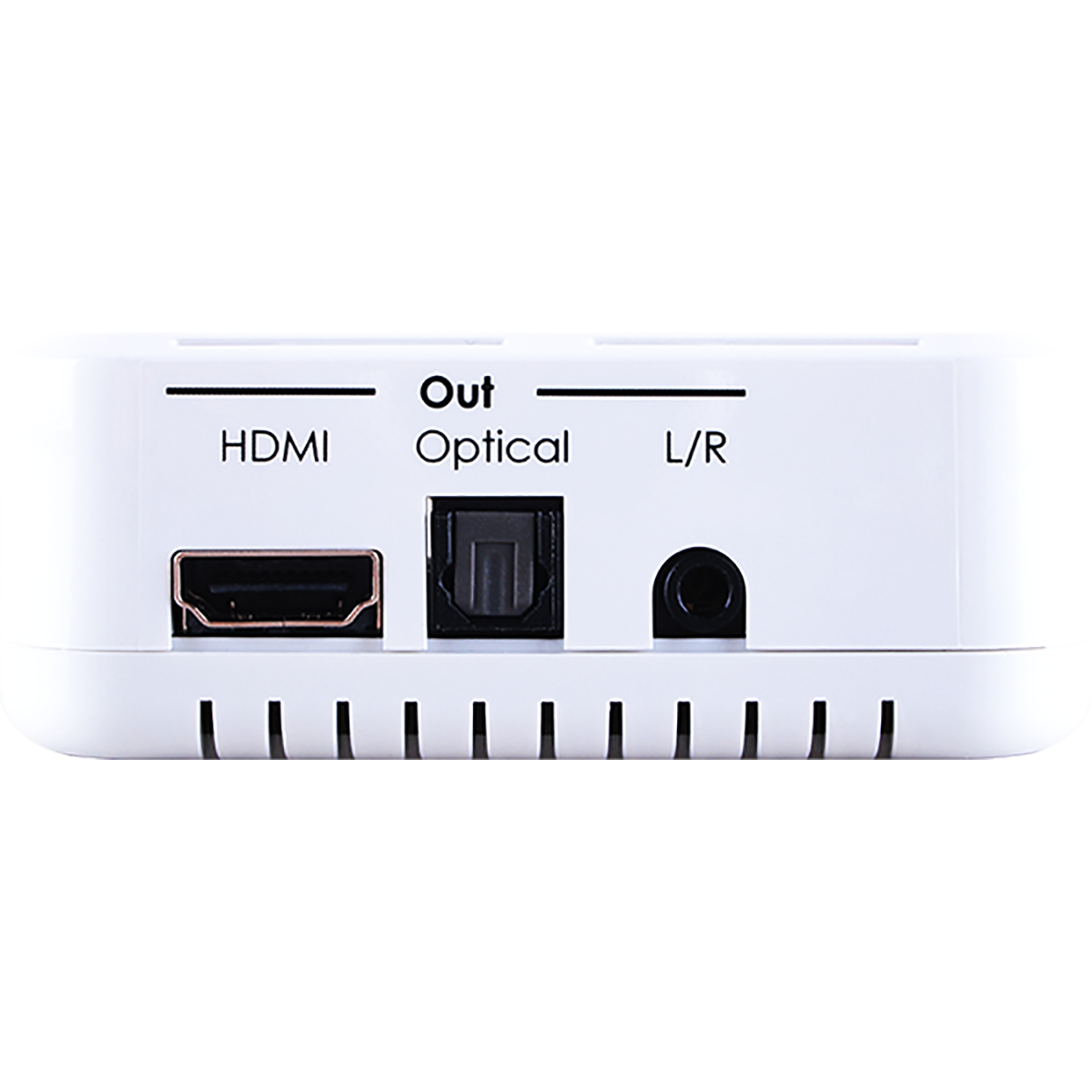

Output Port Type:
1xHDMI, 1xOptical, 1xL/R(3.5mm Phone Jack)
Power
Input Voltage:
5V
Current Rating:
1.2A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
8.5cm
Depth:
8.75cm
Height:
3.4cm
Weight:
102g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
