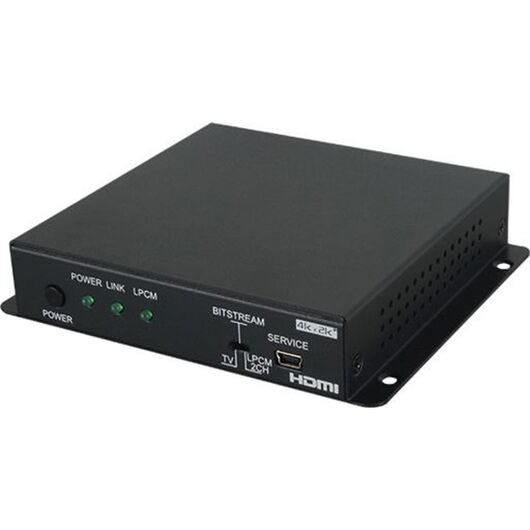

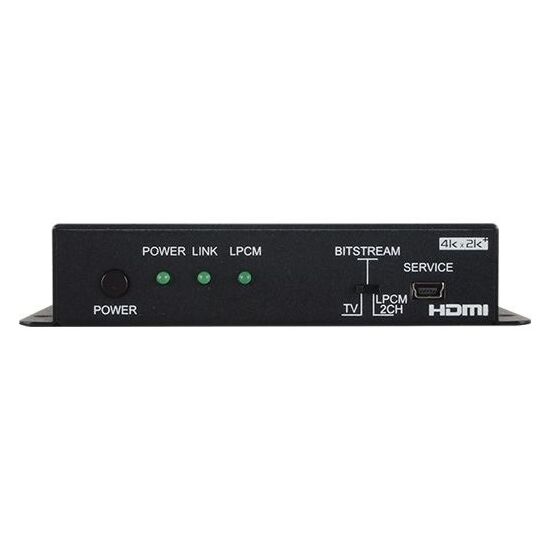

CPLUS-V11SE2 Audio Extractor (LPCM 2.0) with 4K UHD HDMI

Write a review
CPLUS-V11SE2
Cypress Technology
Log in to see price Add to wish list

CPLUS-V11SE2 – decoder of a stereo signal (2xRCA) and digital audio S/PDIF (TOSLINK) from a pass-through HDMI signal with a resolution of 4096x2160/60, 3D (YUV 4:4:4 color space) with HDCP 1.4, 2.2, EDID and CEC, bandwidth 600 MHz. The selected signal is fed simultaneously to two outputs: analog stereo and optical digital audio. Supported embedded audio formats: LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio with a sampling rate of 192 kHz.

Features
  • Supports HDMI 2.0 (including 4K2K/60, 4:4:4), HDCP 2.2 and DVI
  • HDMI and S/PDIF embedded audio sampling rate on optical output - up to 192 kHz
  • De-embeds the audio signal from HDMI, the separated signal is supplied in analog stereo and digital multi-channel/stereo audio S/PDIF format
  • End-to-end CEC control signaling
  • Works with signals up to 4Kx2K resolution (3840×2160, 24/25/30/50/60, YUV 4:4:4 and 4096×2160, 24/25/30/50/60, YUV 4:4:4)
  • It is possible to connect devices with DVI interfaces using an HDMI-DVI adapter (purchased separately)
Brand:
Cypress Technology
Product Type:
Audio Extractor
Specifications
HDMI Audio Format:
LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos & DTS-HD Master Audio
Maximum Operating Temperature:
40°C
Colour:
Black
L/R Audio Format Type:
Analog Stereo 2CH
Optical Audio Format:
LPCM 2CH, Dolby Digital 2/5.1CH & DTS 2/5.1CH
Special Features:
Supports CEC Bypass, Analog Stereo L/R And Optical S/PDIF Audio Outputs
Chassis Material:
Metal
Applications:
Game Entertainment On Monitor
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×5V/2.6A Power Adaptor, 1×Operation Manual
Performance
Resolution:
408i to 1080Pixel@24/50/60Hz,4K@24/25/30Hz, 4K@50/60Hz (YUV444)
HDCP Compliance Type:
2.2
Video Bandwidth:
6Gbps
Sample Rate:
192kHz
Inputs and Ports
Input Port Type:
1×HDMI, 1×Mini-USB (Service only)
Output Port Type:
1×HDMI, 1×Optical, 2×RCA (Analog Audio)
Power
Input Voltage:
5V DC
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.6cm
Height:
3cm
Weight:
358g
Other
Standards Met:
CE/FCC/UL Certified, US/EU Standards
