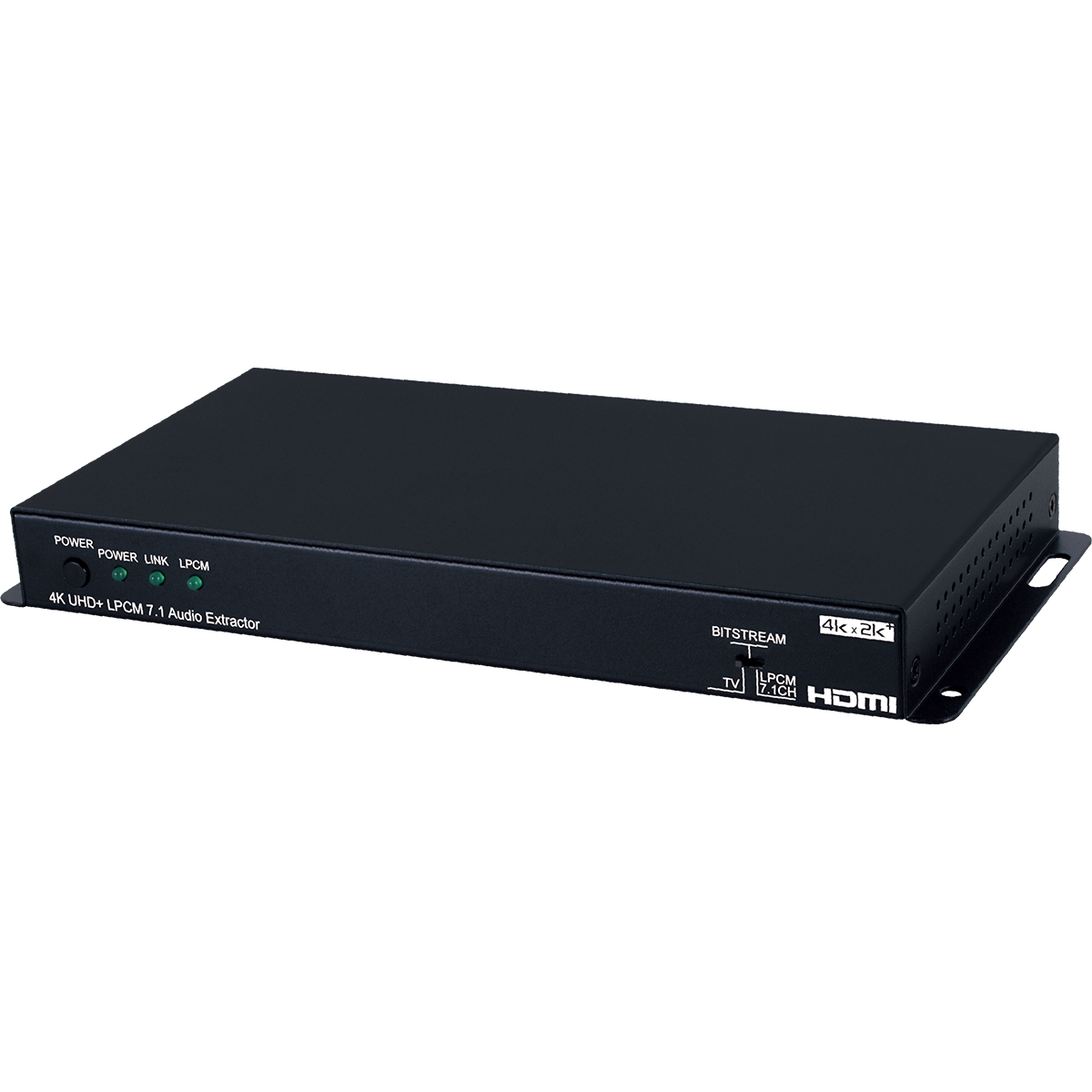

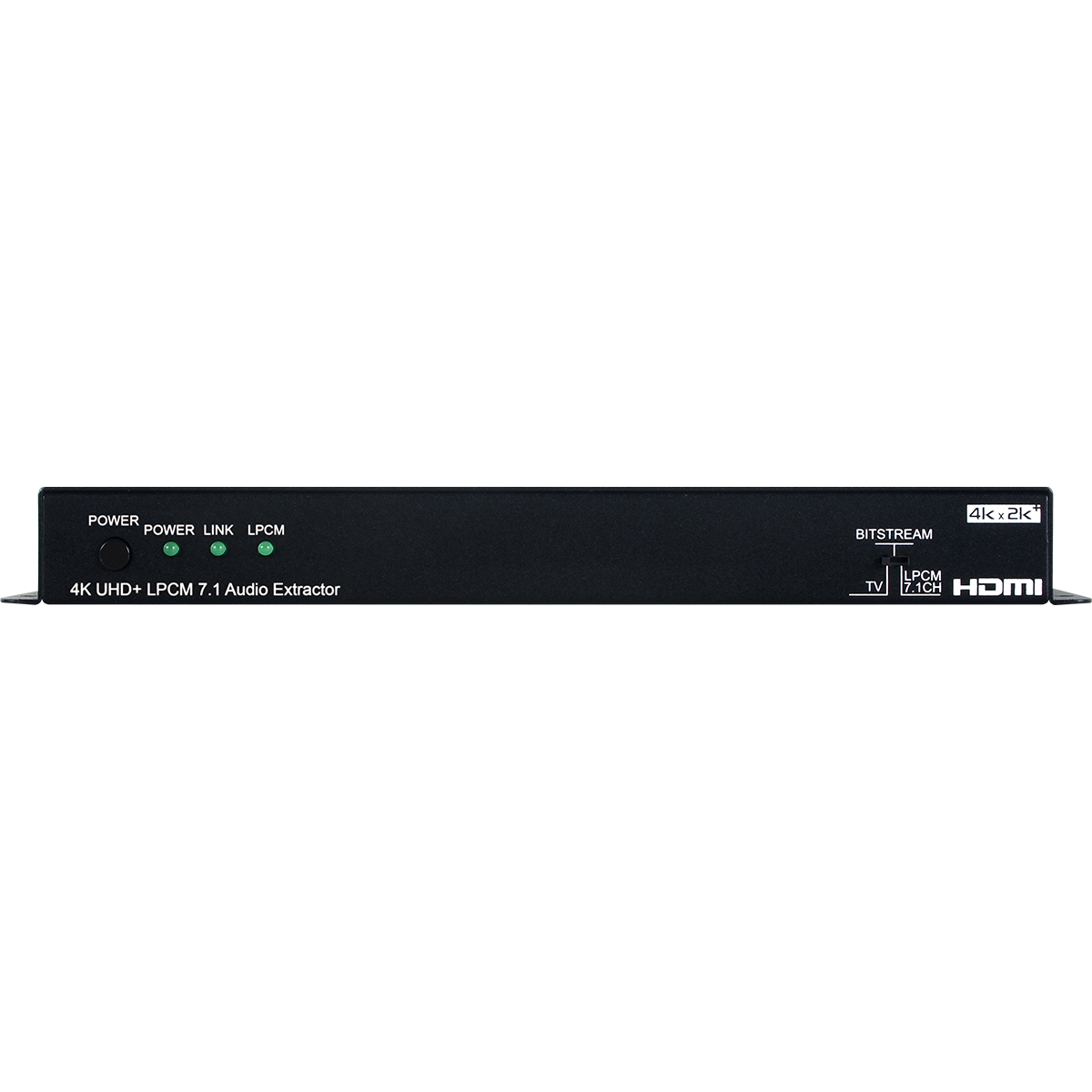

CPLUS-V11PE8 HDMI 4K UHD+ Audio Extractor (LPCM 7.1)
Please sign in so that we can notify you about a reply
This HDMI Audio Extractor can extract up to 8 channels of LPCM audio from an HDMI source, allowing the user to convert high quality lossless HDMI audio into multi-channel analog signals for use with powered speakers or non-HDMI AV receivers. Bitstream extraction is also supported via an optical S/PDIF output.Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports passthrough of HD Bitstream audio formats, as well as standard Bitstream formats and LPCM 7.1 with audio sampling rates up to 192kHz. Built-in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.
Features
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compatible with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
- Supports 48-bit Deep Color up to 1080p@60Hz
- 2 slots for user-created EDIDs, and EDID bypass support
- Supports CEC passthrough
- Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
- Audio extraction of LPCM 7.1 sources to 8 channel analog output and S/PDIF (S/PDIF output is limited to 2 channel source support)
- Audio extraction of Bitstream sources to S/PDIF output (analog output will be muted)
- Supports HDMI and S/PDIF audio sampling rates up to 192kHz
- Provides EDID management with EDID bypass and 2 user modifiable EDIDs
- PC based EDID management tool support
- Supports RS-232 style control via a Virtual COM port over USB
Brand:
Cypress Technology
Product Type:
HDMI Audio Extractor
Specifications
HDMI Audio Format:
LPCM Audio or 5.1 Channel
Maximum Operating Temperature:
+40°C
Colour:
Black
Optical Audio Format:
LPCM 2.0, Bitstream Only
Special Features:
DMI Input and Output with 18Gbps (600MHz) 4K UHD Support, DVI 1.0 Compatible with the use of an HDMI-DVI Adaptor, HDCP 1.4 and 2.2 Compliant, Supports HD Resolutions Up to 3840x2160@60Hz (4:4:4, 8bits) & 4096x2160@60Hz (4:4:4, 8bits), Supports 48bits Deep
Power Rating:
4.7W
Chassis Material:
Metal
Applications:
Audio Extraction for Use with Non-HDMI AV Receivers or Powered Speaker Systems, AV System Integration and Home Theatre Installation, Allows the use of a DVI Display, Combined with an External Speaker System, with an HDMI Source, HDMI/DVI EDID Management
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
BT.2020, HDR Support Option
Performance
Resolution:
3840x2160pixels@60Hz (4:4:4, 8bits), 4096x2160pixels@60Hz (4:4:4, 8bits)
HDCP Compliance Type:
1.4, 2.2
Video Bandwidth:
18Gbps
Baud Rate:
Up to 115200bps
Colour Depth:
8bits
Colour Space:
4:4:4
Sample Rate:
Up to 192kHz
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:

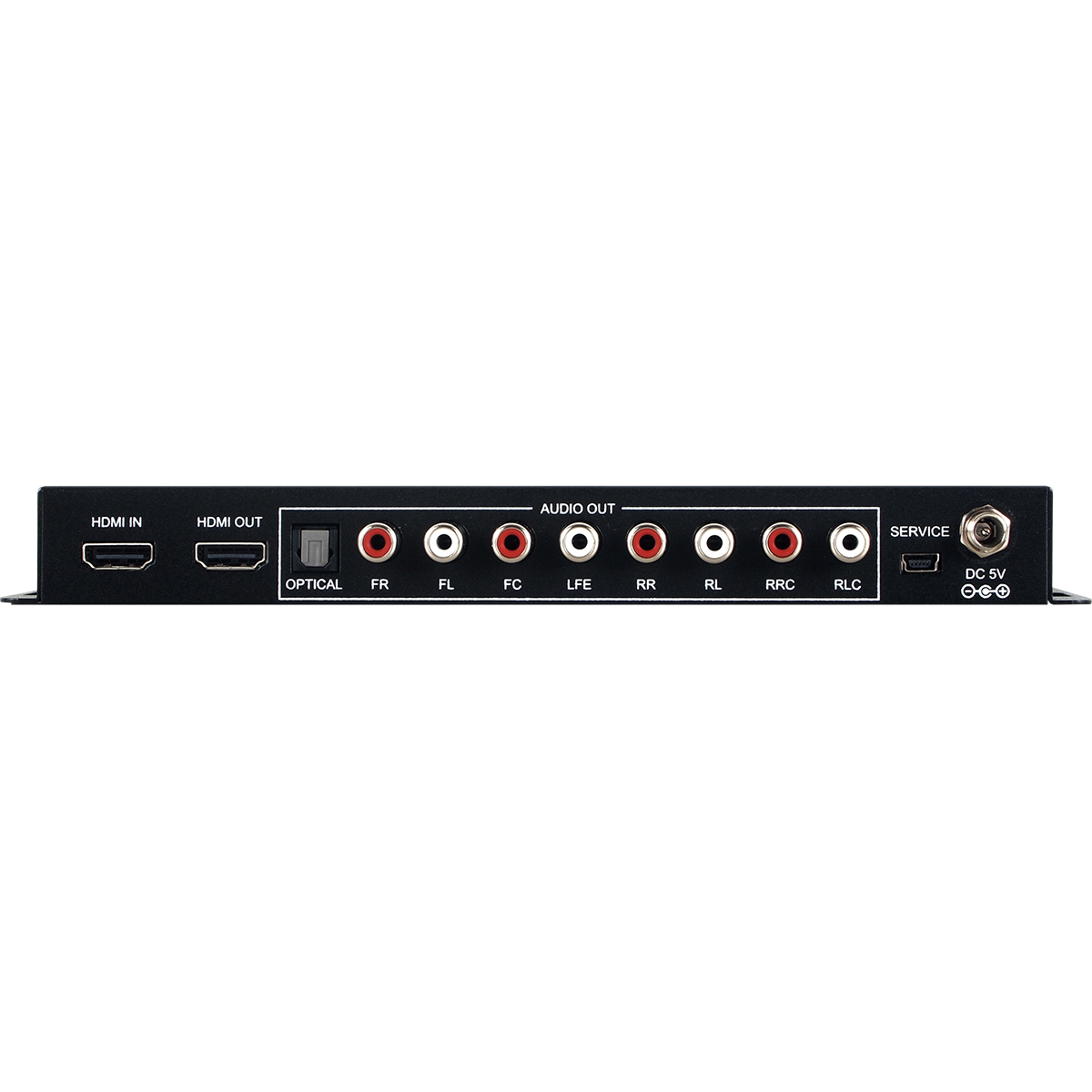

1xHDMI, 1xOptical (S/PDIF), 8xRCA (Multichannel)
Power
Input Voltage:
5V
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
11.8cm
Height:
2.5cm
Weight:
618g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
