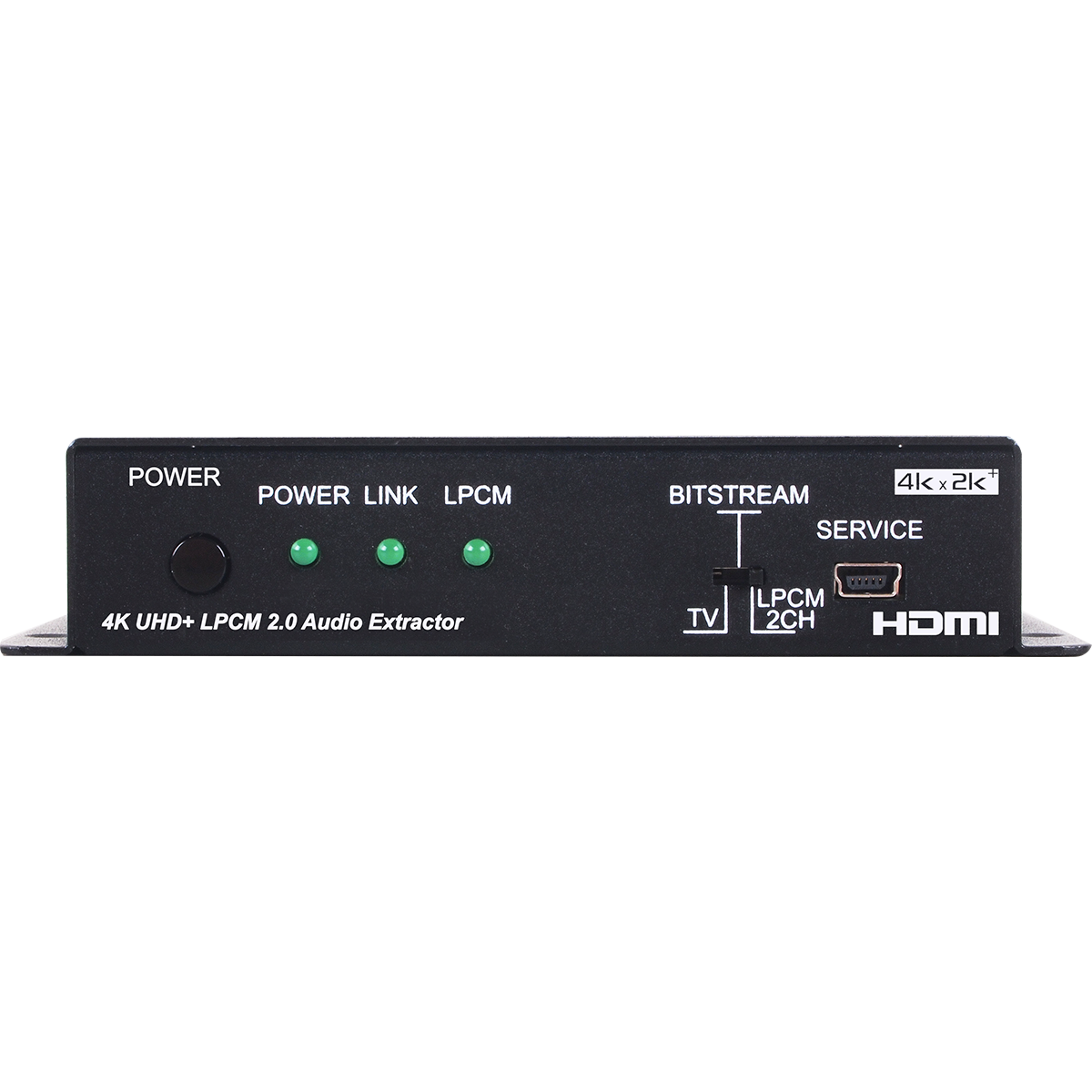

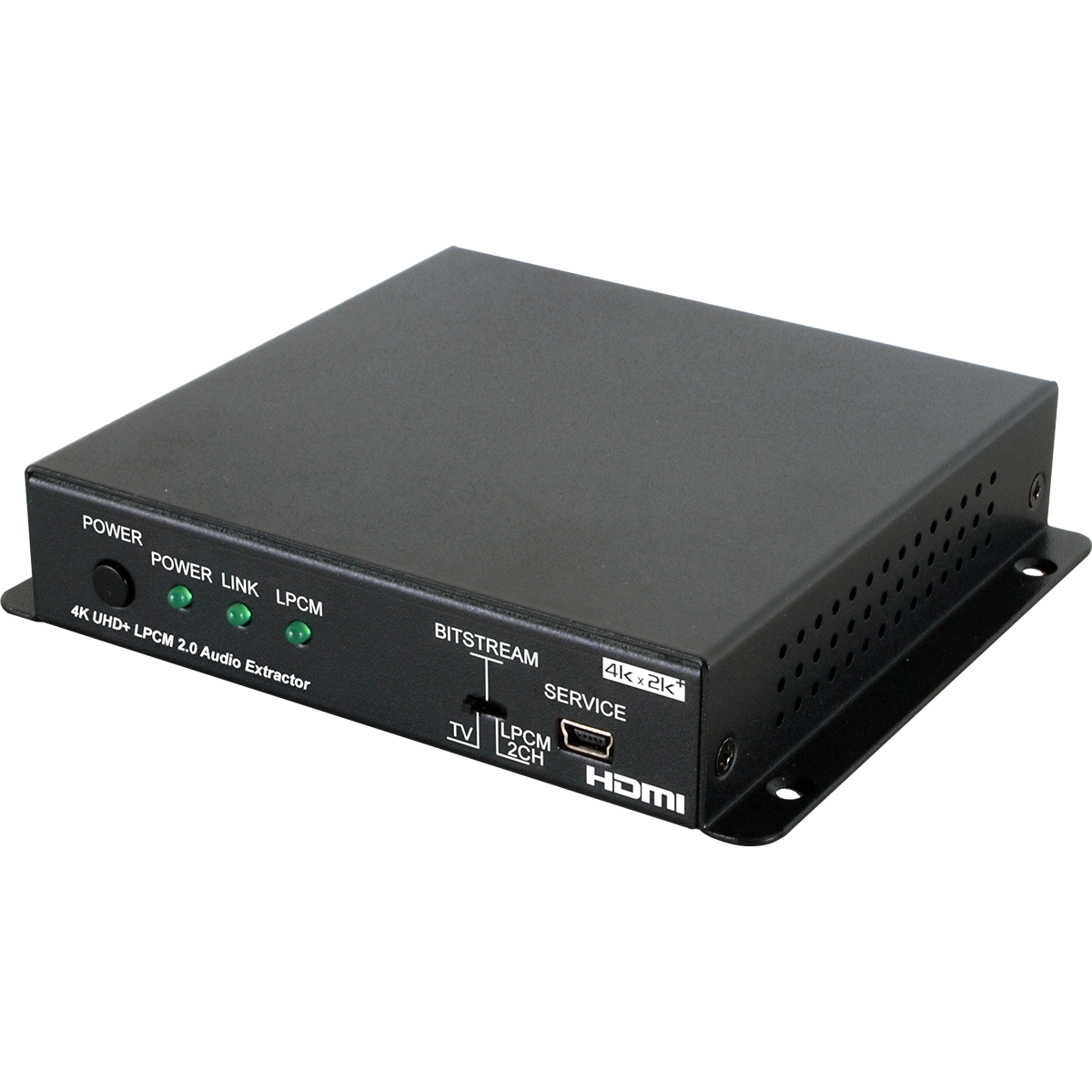

CPLUS-V11PE2 HDMI 4K UHD+ Audio Extractor (LPCM 2.0)
Please sign in so that we can notify you about a reply
This HDMI Audio Extractor can extract up to 2 channels of LPCM audio or 5.1 channels of Bitstream audio from an HDMI source, allowing the user to convert high quality HDMI audio into more convenient analog (LPCM 2.0 sources only) or optical signals for use with powered speakers or non-HDMI AV receivers.Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports passthrough of HD and standard Bitstream formats as well as LPCM 7.1 with audio sampling rates up to 192kHz. Built-in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.
Features
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compatible with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
- Supports 48-bit Deep Color up to 1080p@60Hz
- Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
- Analog audio extraction supports LPCM 2.0 sources
- Optical S/PDIF audio extraction supports LPCM 2.0 & Bitstream formats
- Supports HDMI and S/PDIF audio sampling rates up to 192kHz
- Provides EDID management with EDID bypass and 2 user modifiable EDIDs
- PC based EDID management tool support
- Supports RS-232 style control via a Virtual COM port over USB
Brand:
Cypress Technology
Product Type:
HDMI Audio Extractor
Specifications
HDMI Audio Format:
LPCM 7.1 Sources to 8 Channel
Maximum Operating Temperature:
+40°C
Colour:
Black
Optical Audio Format:
LPCM 2.0 Sources Only
Special Features:
HDMI Input and Output with 18Gbps (600MHz) 4K UHD Support, DVI 1.0 Compatible with the use of an HDMI-DVI Adaptor, HDCP 1.4 and 2.2 Compliant, Supports HD Resolutions Up to 3840x2160@60Hz (4:4:4, 8bits) & 4096x2160@60Hz (4:4:4, 8bits), Supports 48bits Dee
Power Rating:
2.5W
Chassis Material:
Metal
Applications:
Audio Extraction for use with Non-HDMI AV Receivers or Powered Speaker Systems, AV System Integration and Home Theatre Installation, Supporting HDMI Sources on DVI Displays with Analog or External Speaker Systems, HDMI/DVI EDID Management
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
BT.2020, HDR Support Option
Performance
Resolution:
3840x2160pixels@60Hz (4:4:4, 8bits), 4096x2160pixels@60Hz (4:4:4, 8bits)
HDCP Compliance Type:
1.4, 2.2
Video Bandwidth:
18Gbps
Baud Rate:
Up to 115200bps
Colour Depth:
8bits
Colour Space:
4:4:4
Sample Rate:
Up to 192kHz
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:

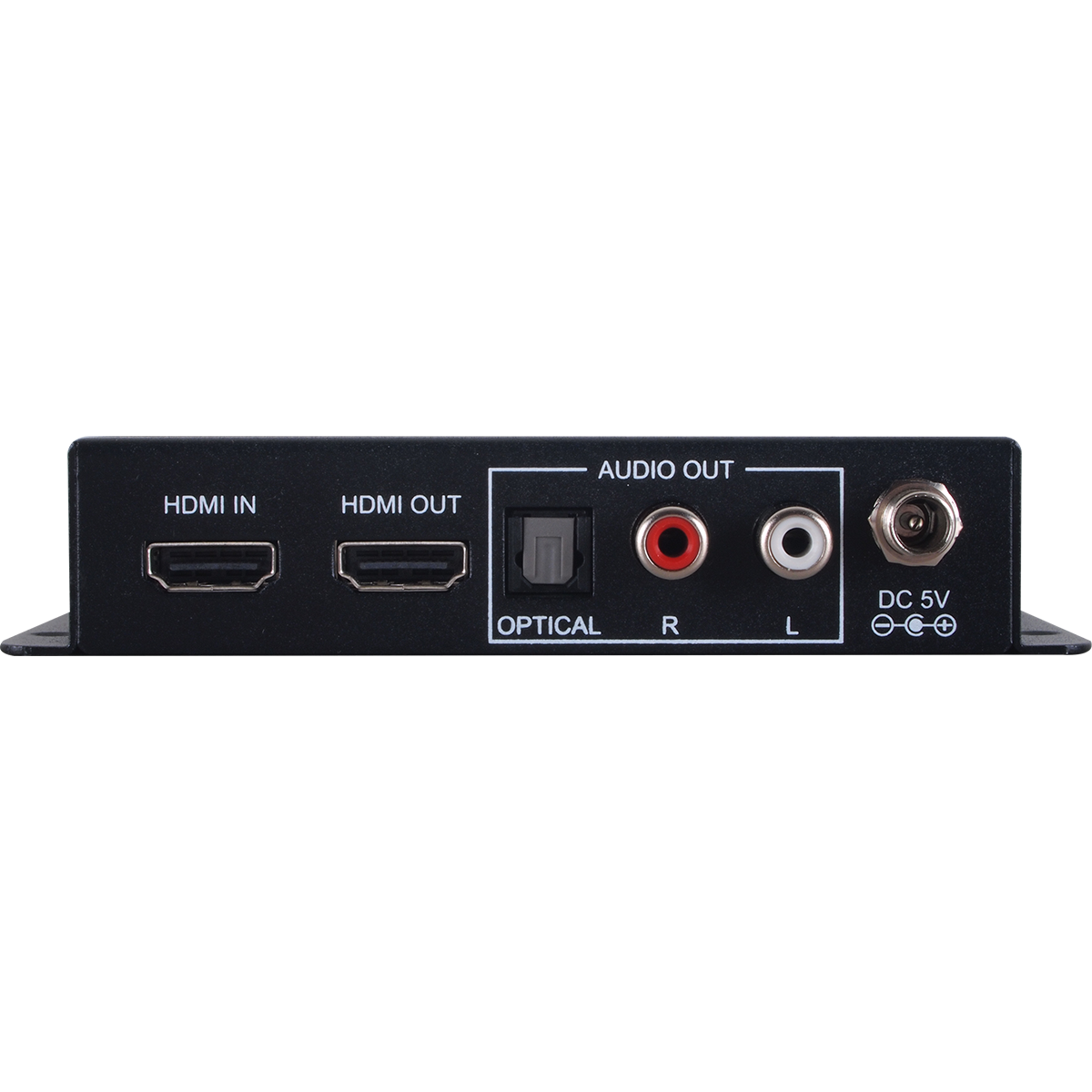

1xHDMI, 1xOptical (S/PDIF), 2xRCA (Stereo)
Power
Input Voltage:
5V
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.8cm
Height:
2.5cm
Weight:
358g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
