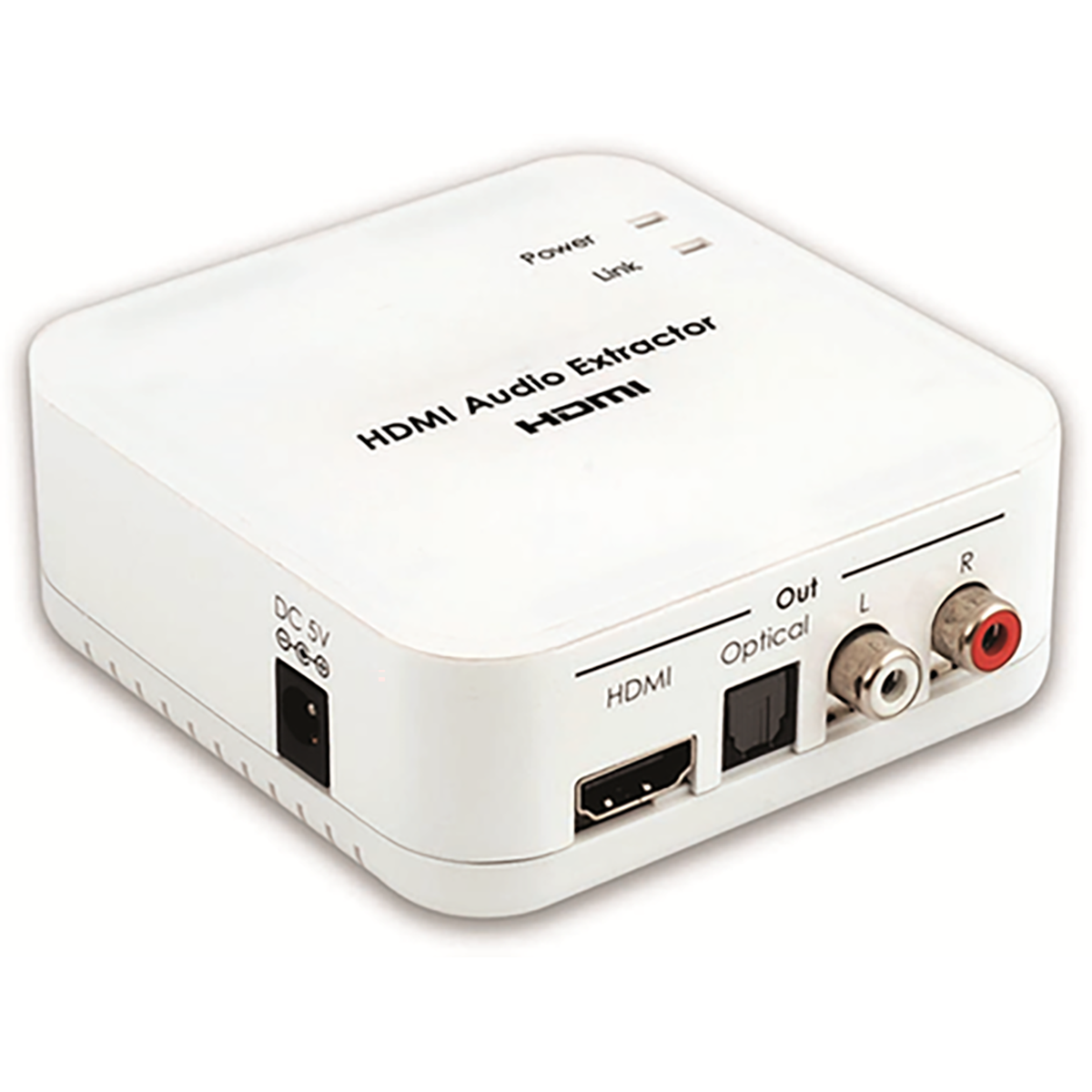

CLUX-11CD HDMI Audio De-Embedder
Please sign in so that we can notify you about a reply

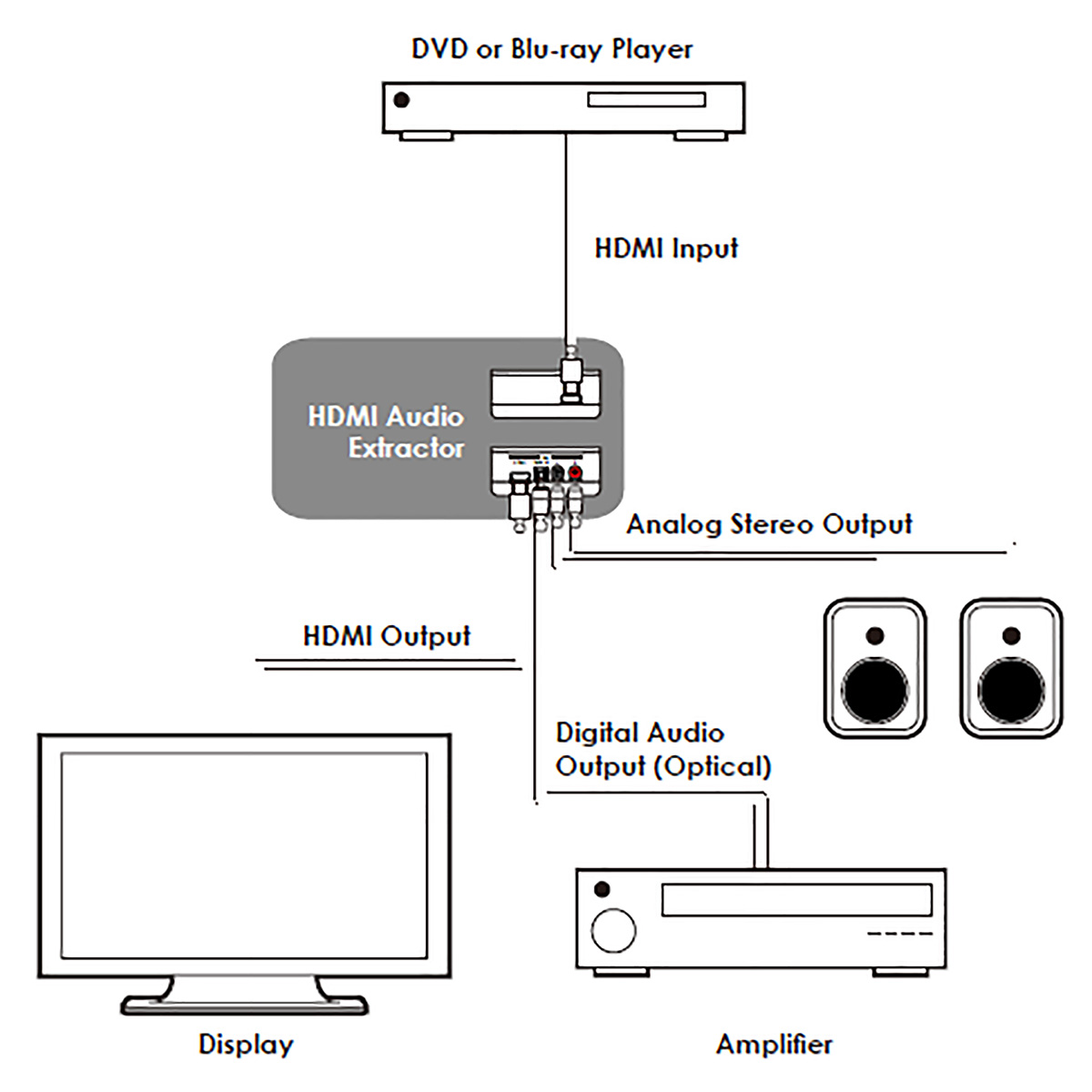

The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don’t always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog Stereo (L/R) audio. This means that you can output your audio signal to external speakers or extend your audio signal pathway.
Features
- Compliant with HDMI, HDCP 1.2 and DVI 1.0
- Supports HDMI audio sampling rates up to 192 kHz
- Supports Optical S/PDIF sampling rates up to 48 kHz
- Supports TMDS clock frequency rate 225 MHz
- Supports high-bit-rate (HBR) audio
- No HDMI output connection is required to receive audio at the analog and optical outputs
- Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution
- Low power consumption

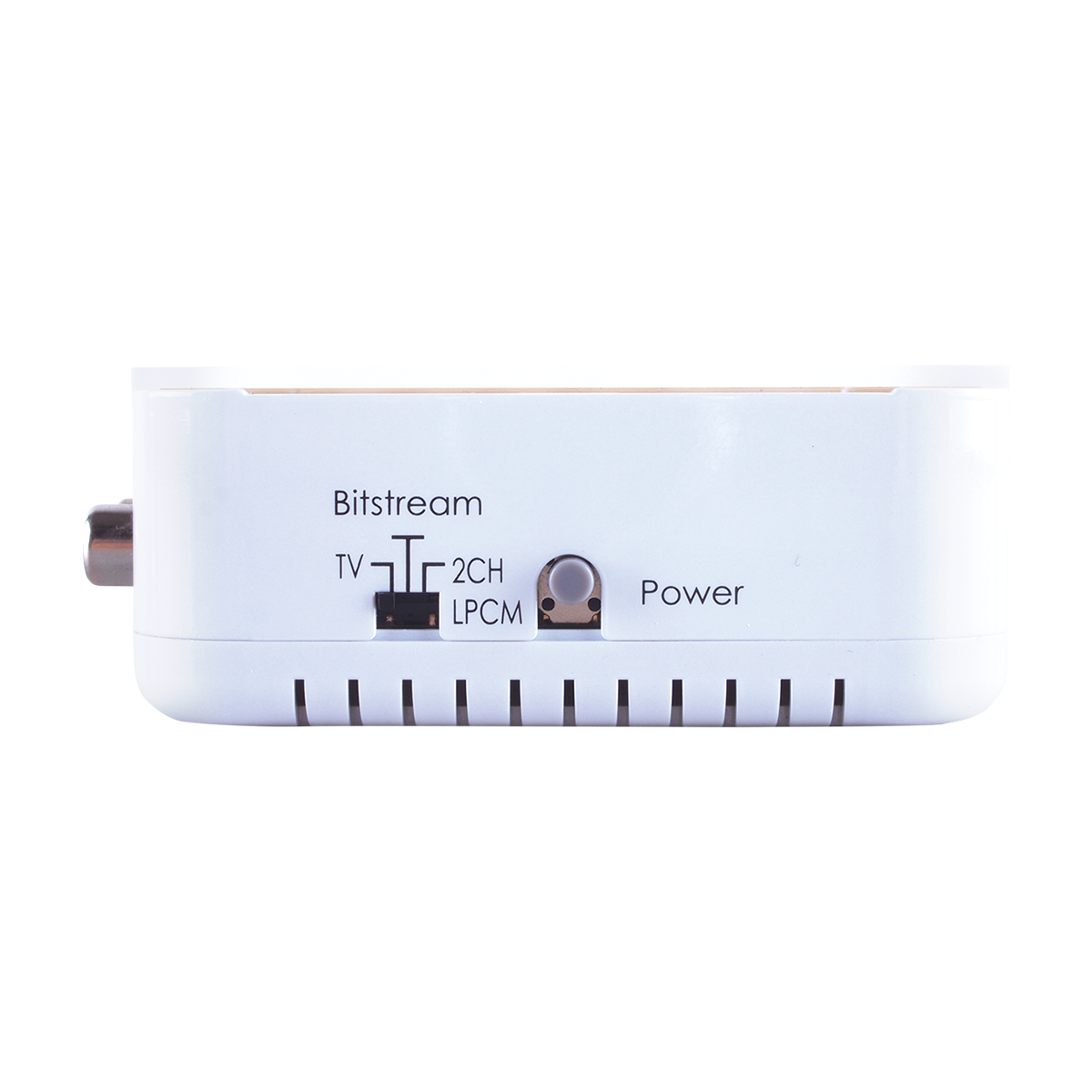

- Supports EDID management for audio formats, can switch among builtin EDID (LPCM 2CH/Bitstream) and external EDID (TV)
- Supports 3D signal
Brand:
Cypress Technology
Product Type:
HDMI Audio Extractor
Specifications
HDMI Audio Format:
LPCM 2/5.1/7.1CH, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD
Maximum Operating Temperature:
+40°C
Colour:
White
L/R Audio Format Type:
Analog Stereo 2 CH
Optical Audio Format:
LPCM 2 CH, Dolby 5.1, DTS 5.1
Special Features:
Compliant with HDMI, HDCP 1.2And DVI 1.0, Supports HDMI Audio Sampling Rates Up to 192kHz, Supports Optical S/PDIF Sampling Rates Up to 48kHz, Supports TMDS Clock Frequency Rate 225MHz, Supports Highbits-Rate (HBR) Audio, No HDMI Output Connection is Requ
Power Rating:
2.1W
Chassis Material:
Plastic
Applications:
Audio Extraction for Video only Displays, Extend your Audio Signal, Audio Extraction for Non-HDMI AV Receivers or Wider Audio System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
HDMI Audio Extractor, 5V/1.2A Power Adaptor, Operation Manual
Performance
Resolution:
1080pixels
HDCP Compliance Type:
1.2
Sample Rate:
Up to 192kHz
Inputs and Ports

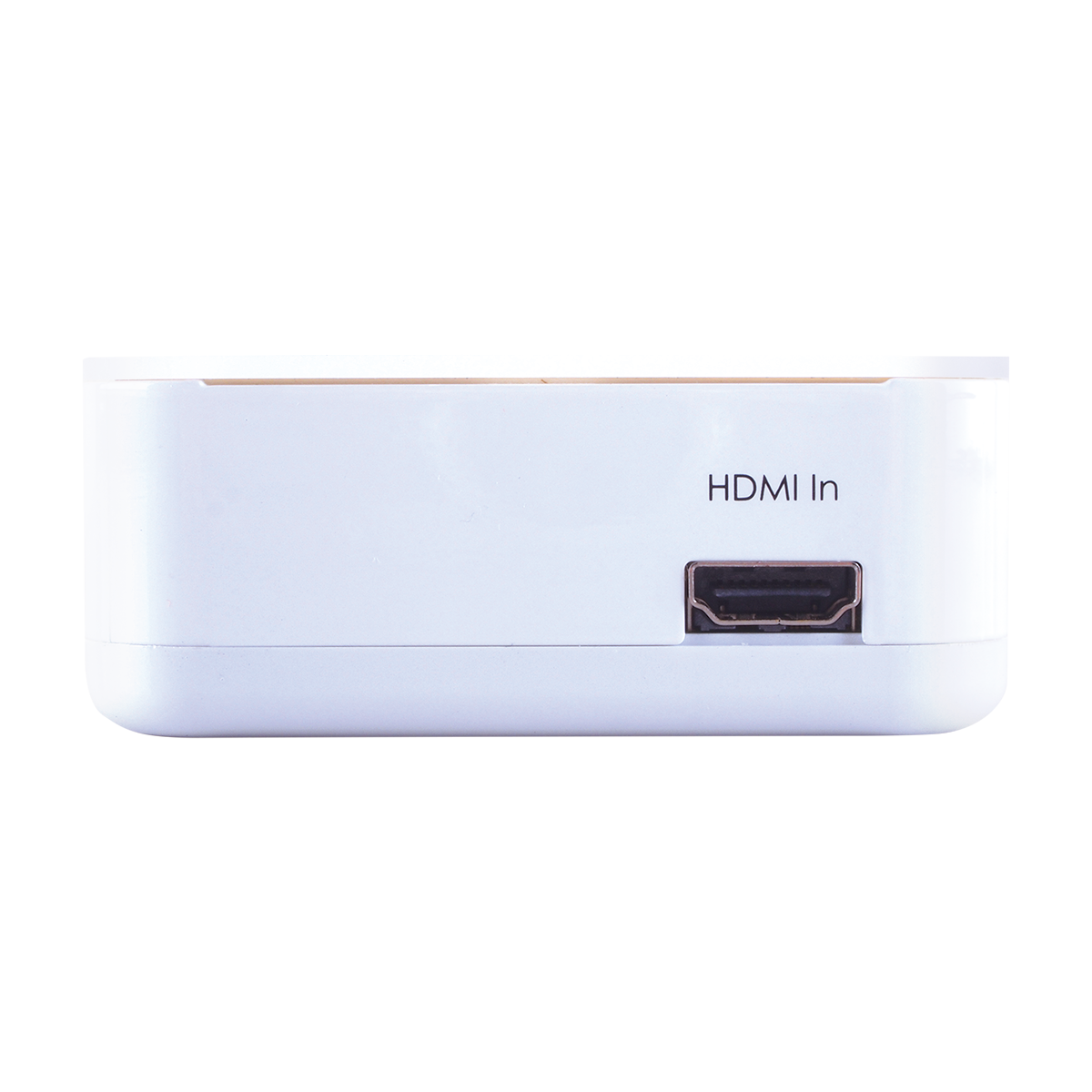

Input Port Type:
1xHDMI

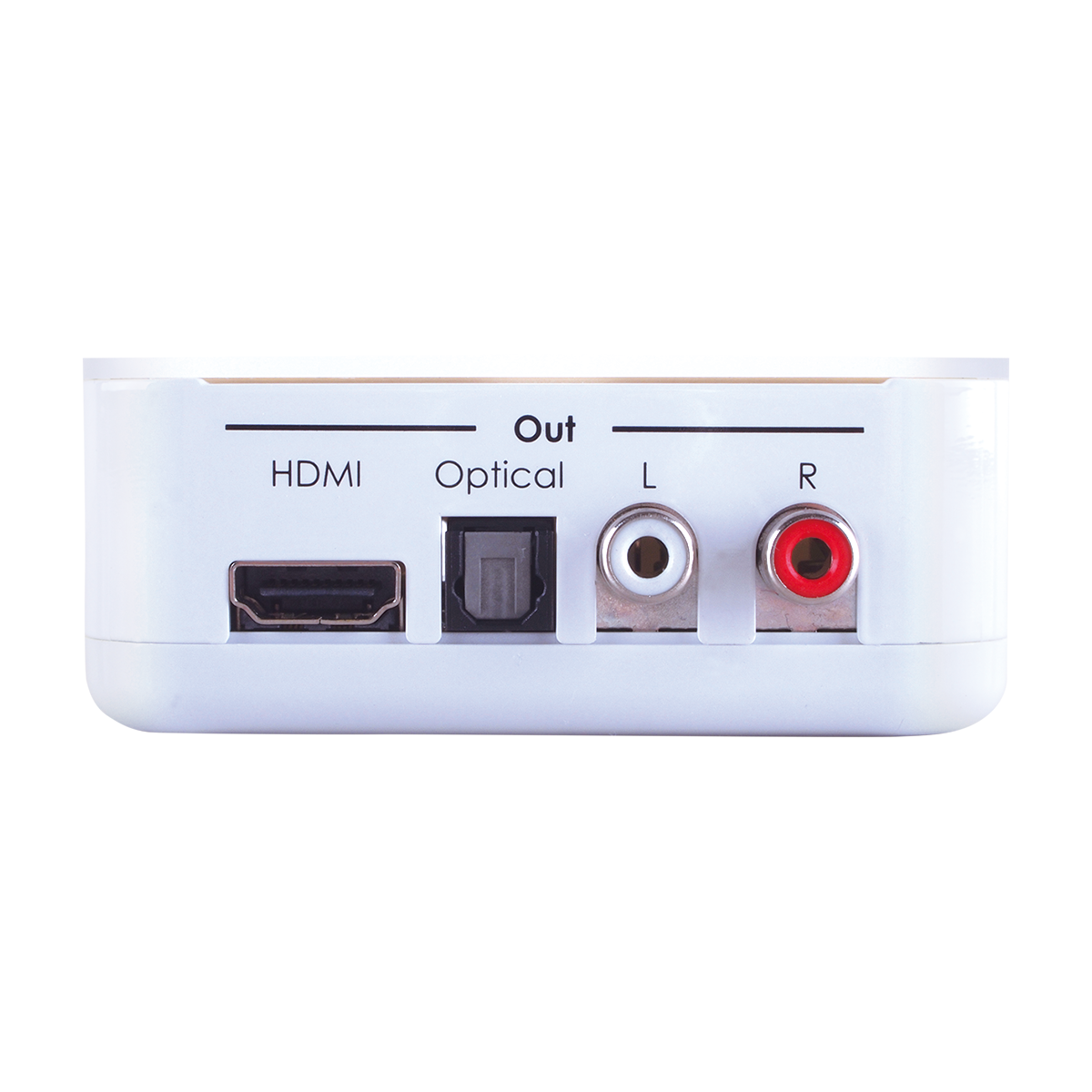

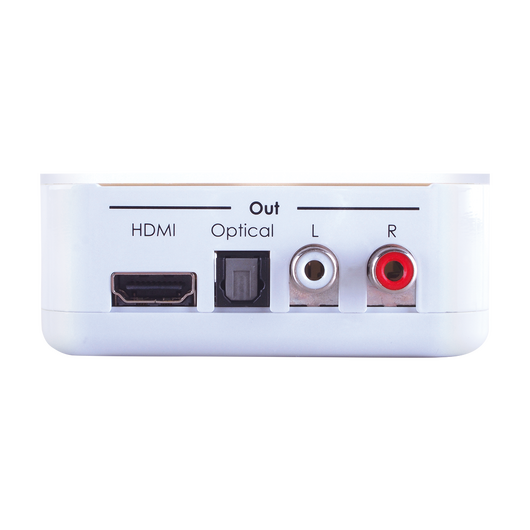

Output Port Type:
1xHDMI, 1xOptical, 1xL/R
Power
Input Voltage:
5V
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
9.07cm
Depth:
8.5cm
Height:
3.4cm
Weight:
107g
Other
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
