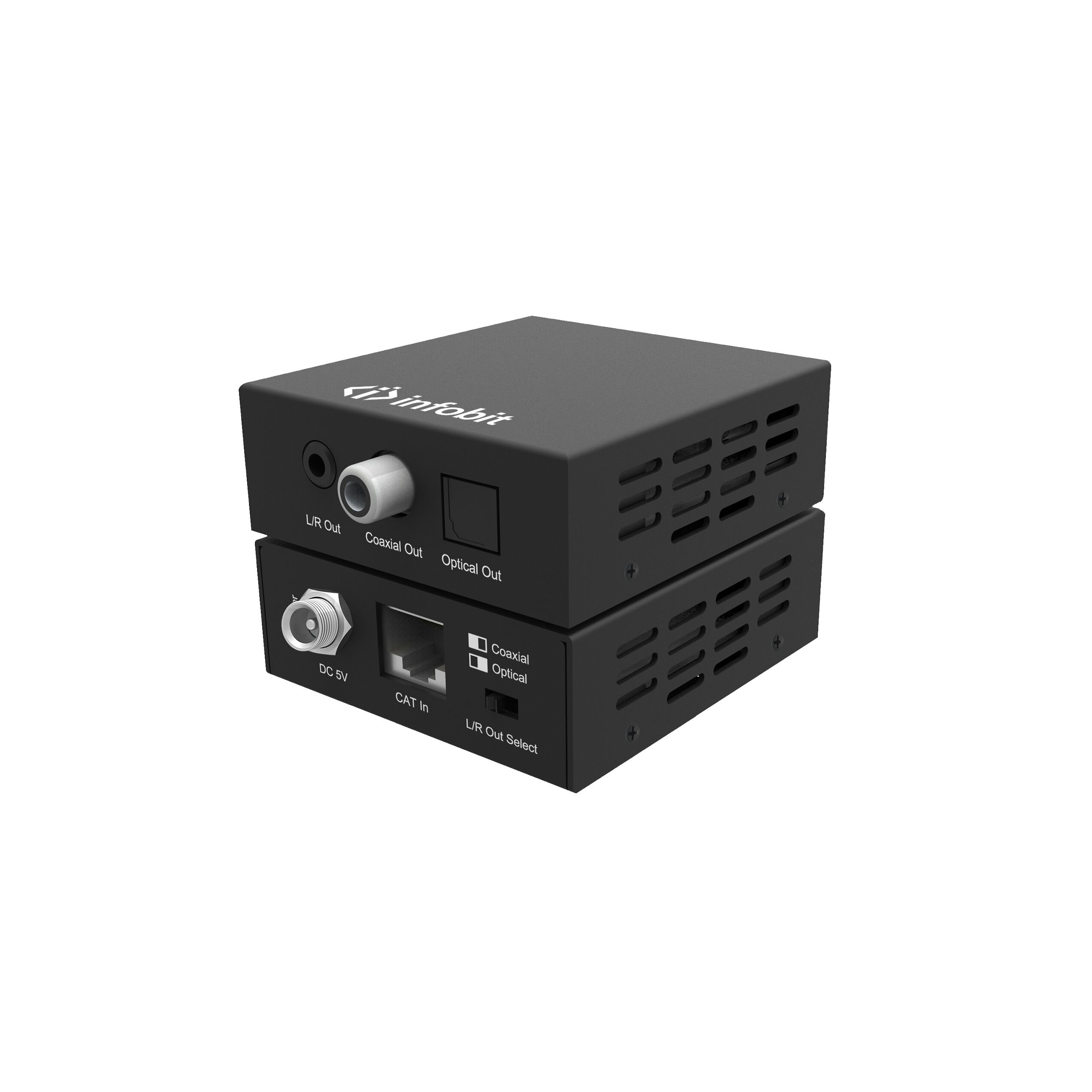

iTrans EA300 Audio Extenders (Tx and Rx) over CAT cable, 300m
Please sign in so that we can notify you about a reply
This Audio over CAT 5e/6 Extender can transmit digital optical and coaxial signals concurrently up to a distance of 300m (48kHz), 150m (96kHz) or 100m (192kHZ). The receiver built-in DAC converts either of the digital (coax/toslink optical) signals to a 2CH analog stereo audio output. Support one-way POC function (the receiver will power the transmitter over the CAT cable)
Brand:
Infobit
Receiver I/O Interface Type:
1xRJ45
Transmitter I/O Interface Type:
1xRJ45
Product Type:
Audio Extender
Specifications
Audio Format:
LPCM, DTS, Dolby Digital and Dolby Digital Plus
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Small Compact Size
Supported Cable Types:
CAT 5e/6
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×Audio over CAT 5e/6 Extender (Transmitter), 1×Audio over CAT 5e/6 Extender (Receiver), 1×5V/1A Power Supply, 4×Mounting Ears, 1×User Manual
Performance
Dolby Compatibility (Yes/No):
Yes
DTS Compatibility (Yes/No):
Yes
Maximum Transmission Distance:
300m
Inputs and Ports
Receiver Input Connector Type:
1xRJ45
Receiver Output Connector Type:
1×Optical, 1×Coaxial SPDIF RCA, 1xAnalog Stereo 3.5mm Audio jack
Transmitter Input Connector Type:
1×Optical, 1×Coaxial SPDIF RCA
Transmitter Output Connector Type:
1xRJ45
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge) ±4kV (Contact Discharge)
Dimensions
Width:
7.6cm
Depth:
2.8cm
Height:
6.4cm
Weight:
0.4kg
Other
Voltage Rating:
5V DC
