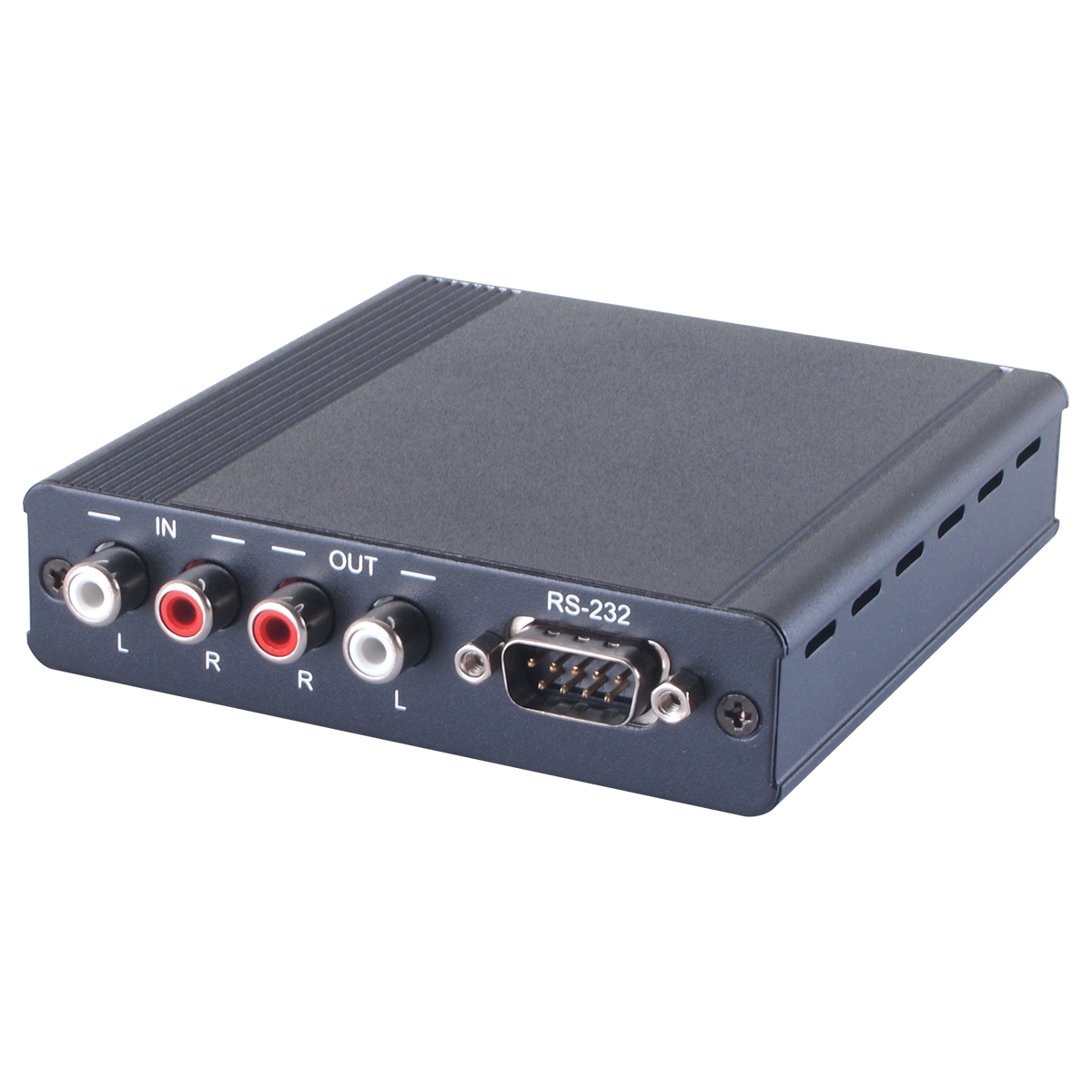

DCT-32RX Analog Stereo Audio over CAT5e/6/7 Receiver with RS-232 Control
Please sign in so that we can notify you about a reply
The Analog Stereo Audio and RS-232 over CAT5e/6/7 extender is design to extend analog stereo audio over a single run of CAT5e/6/7 cable up to 300m. With Bi-directional RS-232 control and PoC features added these units can be used with Receiver or Transmitter unit that supports RS-232 device control and one-way power supply.
Features
- Support`s Analog stereo audio and RS-232 extension over a signal CAT5e/6/7 cable up to 300 meters
- Supports Power over Cable (PoC) to Receiver unit
- Bi-directional RS-232 control
Brand:
Cypress Technology
Product Type:
Analog Stereo Audio Extender
Specifications
Audio Format:
Analog
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports Analog Stereo Audio and RS-232 Extension Over a Signal CAT5e/6/7 Cable Up to 300m, Supports Power Over Cable (PoC) to Receiver Unit, Bidirectional RS-232 Control
Power Rating:
1.65W
Supported Cable Types:
CAT 5e/6/7
Chassis Material:
Metal
Applications:
Home Sound System Extension, Conference and Meeting Room Audio System Sharing, Showroom Audio Extension
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xAnalog Stereo Audio Transmitter, 1xAnalog Stereo Audio Receiver, 1x12V Power Adaptor, Operation Manual
Performance
Dolby Compatibility (Yes/No):
No
DTS Compatibility (Yes/No):
No
Maximum Transmission Distance:
300m
Inputs and Ports
Receiver Input Connector Type:
1xL/R (2-RCA), 1xAUDIO-CAT
Receiver Output Connector Type:
1xL/R (2-RCA), 1xRS-232
Transmitter Input Connector Type:
1xL/R (2-RCA), 1xAUDIO-CAT
Transmitter Output Connector Type:
1xL/R (2-RCA), 1xRS-232
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
11.cm
Height:
2.5cm
Weight:
242g
Other
Voltage Rating:
12V DC
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
