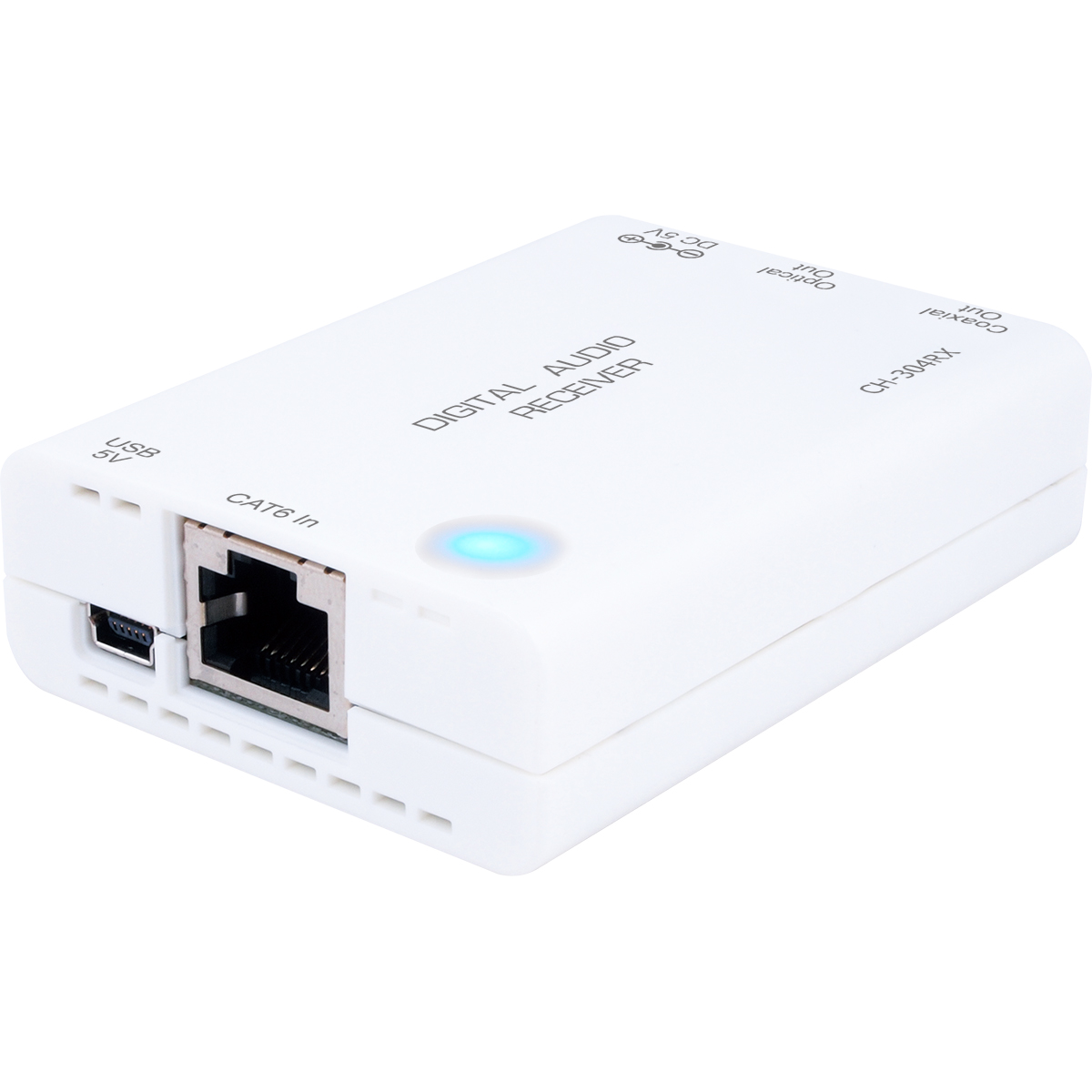

CH-304RX 2x2 Coaxial/Optical Digital Audio over CAT5e.6.7 Extender
Please sign in so that we can notify you about a reply
The Digital Audio Extender is useful for sending the digital audio signal up to 150m away at high quality. The units can switch between Coaxial and Optical digital signals and can be powered by either USB or power adaptor allowing users flexibility of choice between power sources. With its elegant and compact design, user friendly operation and easy installation, the Digital Audio Extender is ideal tool for extending digital audio from one location to another.
Features
- Supports Coaxial or Optical digital audio S/PDIF signal
- Supports stereo and multi-channel digital audio such as LPCM 2 CH, Dolby Digital or DTS 5.1 CH
- Supports industry standard Category 5/5e/6 cable
- Digital audio S/PDIF performance sampling rate 96 kHz Supports single Coaxial input to Coaxial signal output Supports single Optical input to Optical signal output
Brand:
Cypress Technology
Product Type:
Digital Audio Extender
Specifications
Audio Format:
S/PDIF
Maximum Operating Temperature:
+45°C
Colour:
White
Special Features:
Supports Coaxial or Optical Digital Audio S/PDIF Signal, Supports Stereo and Multi-Channel Digital Audio Such as LPCM 2 CH, Dolby Digital or DTS 5.1 CH, Supports Industry Standard Category 5/5e/6 Cable, Digital Audio S/PDIF Performance Sampling Rate 96kHz
Power Rating:
2W
Supported Cable Types:
CAT 5e/6/7
Chassis Material:
Plastic
Applications:

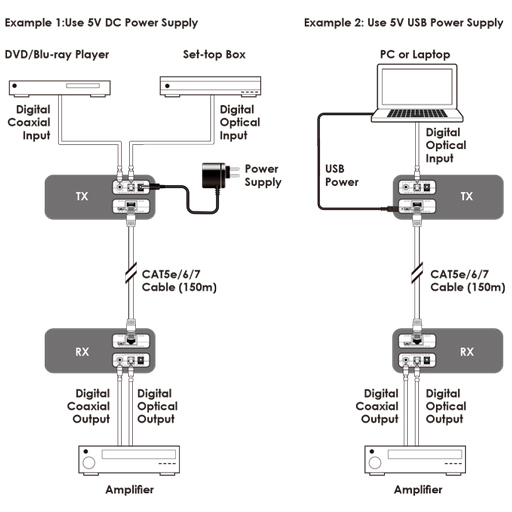

Coaxial or Optical Digital Audio Signal Extension Over Single CAT 5/6/7 Cable up to 150m
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Digital Audio Over Single CAT5e/6/7 Transmitter, Digital Audio Over Single CAT5e/6/7 Receiver, 5V/1A DC Power Adaptor, Operation Manual
Performance
Dolby Compatibility (Yes/No):
Yes
DTS Compatibility (Yes/No):
Yes
Maximum Transmission Distance:
150m
Inputs and Ports

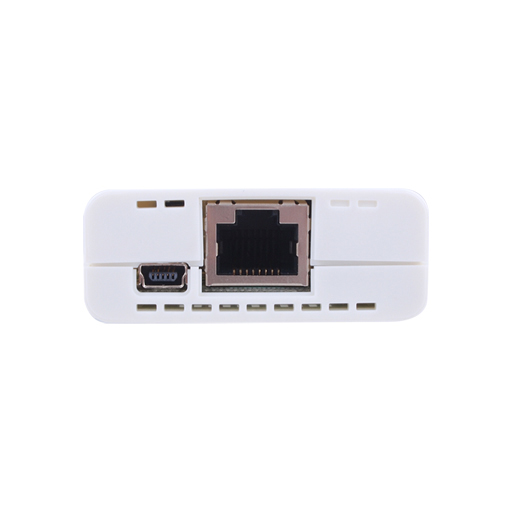

Receiver Input Connector Type:
1xCAT6
Receiver Output Connector Type:
1xCoaxial, 1xOptical
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
5cm
Depth:
7cm
Height:
2.2cm
Weight:
50g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
