AP-411 Lip Sync Corrector, Variable 0-300 ms Delay
Please sign in so that we can notify you about a reply

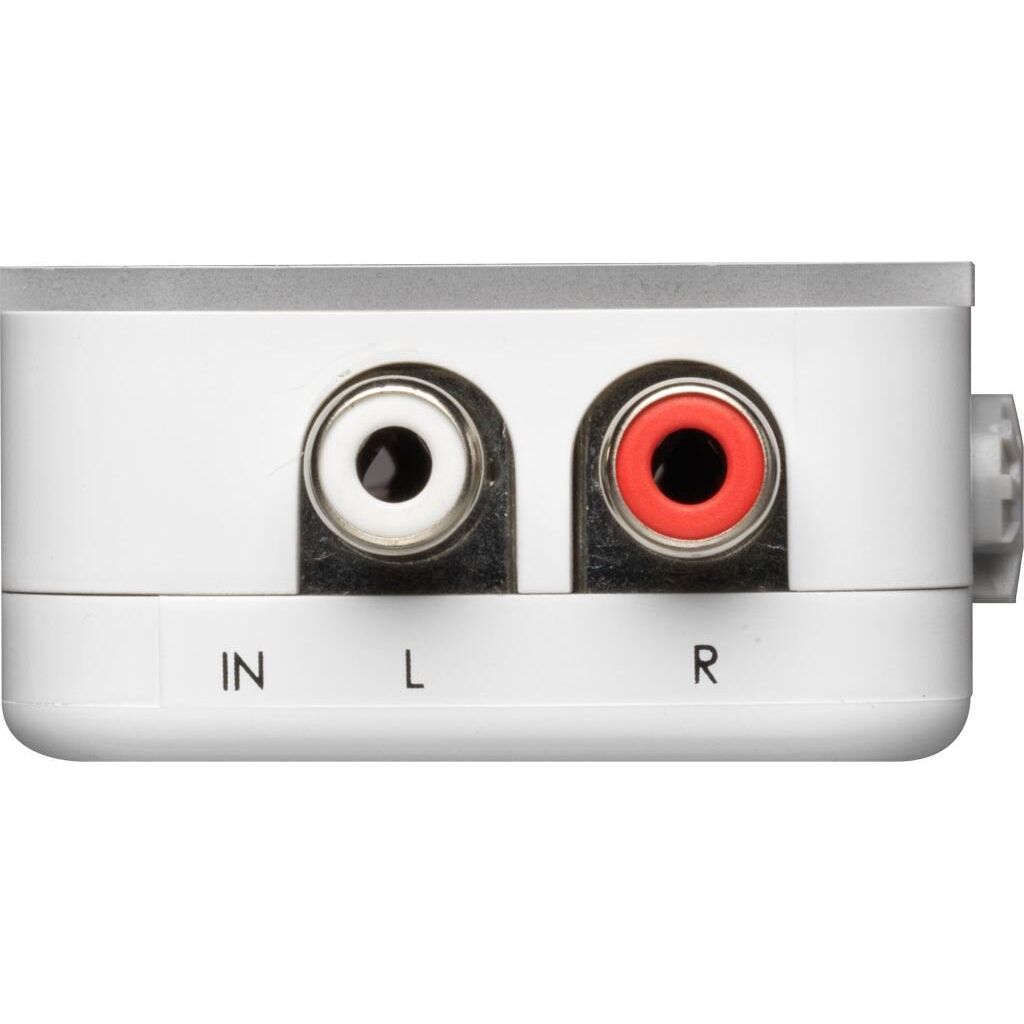

AP-411 Lip Sync Corrector is a compact device used to correct audio/video timing mismatches that result in the loss of synchronization of the two components of A/V program content. Since this problem is virtually always caused by the program's video component arriving after the audio component, the AP-411 Lip Sync Corrector provides up to 300 milliseconds of delay for the audio component to restore A/V synchronization to the program material. Excellent specification of >80dB S/N plus <-70dB of crosstalk and <0.01% Total Harmonic Distortion (THD-N) are coupled with a 48kHz sample rate to provide superior performance under demanding conditions. Inputs up to 2Vrms are accepted and the output level is a maximum of 2Vrms. The unit requires only 5VDC for operation and consumes only 0.5 watt of power. An AC Adapter is provided.
Features- Resynchronizes program audio to video
- Sample rate of 48kHz
- Accepts Input levels up to 2V/rms
- Provides Output levels to 2V/rms
- >80db S/N, <-70dB Crosstalk, <0.01% THD-N
Brand:
tvONE
Product Type:
Lip Sync Corrector
Specifications
Colour:
White
Delay Time:
300ms
Special Features:
Resynchronizes Program Audio to Video
Power Rating:
0.5W
Includes:
AC Adapter
Performance
Signal-to-Noise Ratio:
>80dB, <-70dB (Crosstalk)
Total Harmonic Distortion:
0.01%
Sample Rate:
48kHz
Output Level Type:
2VRMS
Inputs and Ports
Input Level:
2VRMS
Other
Voltage Rating:
5V DC
