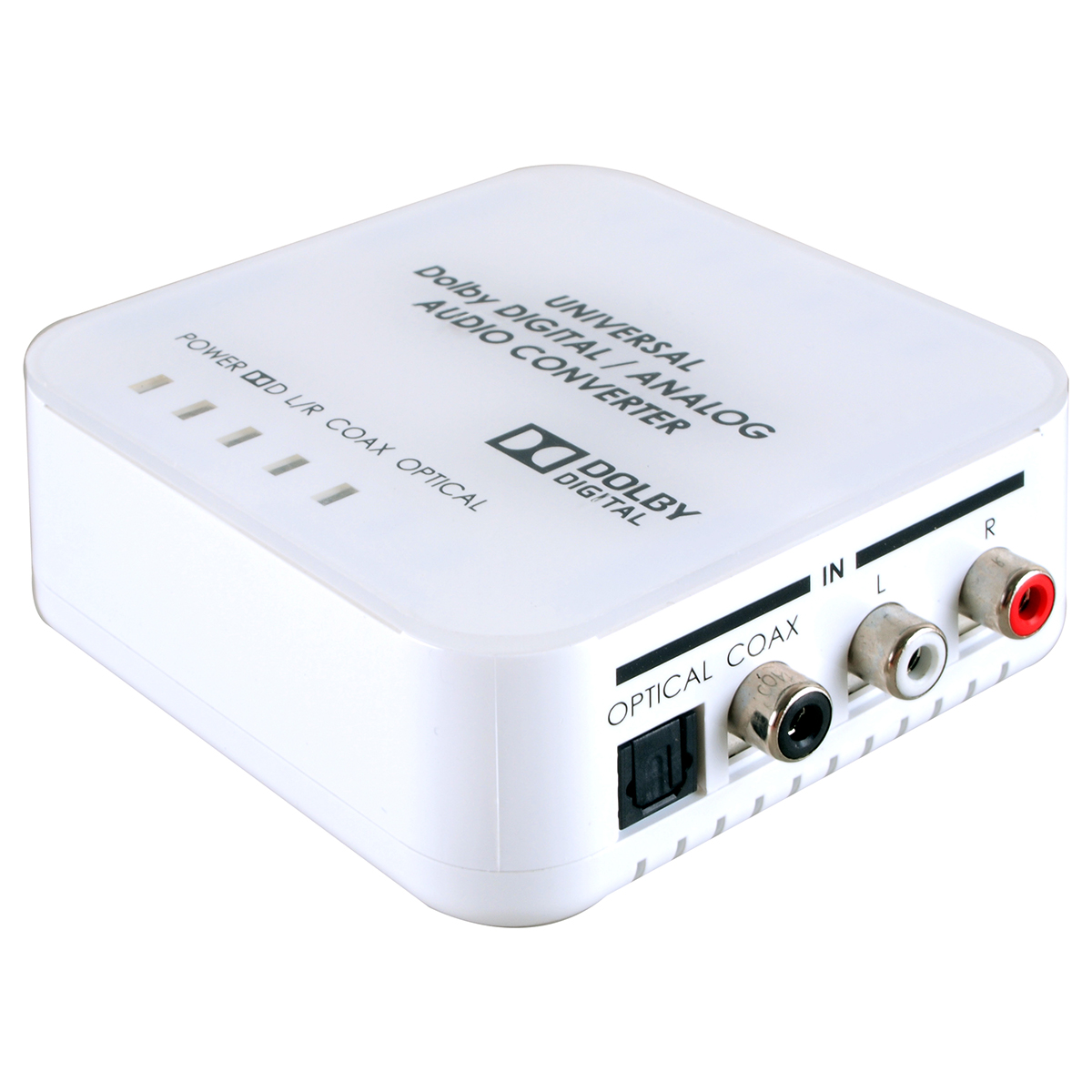

DCT-9DN Universal Digital/Analog Audio Converter with Dolby Digital Decoder
Please sign in so that we can notify you about a reply

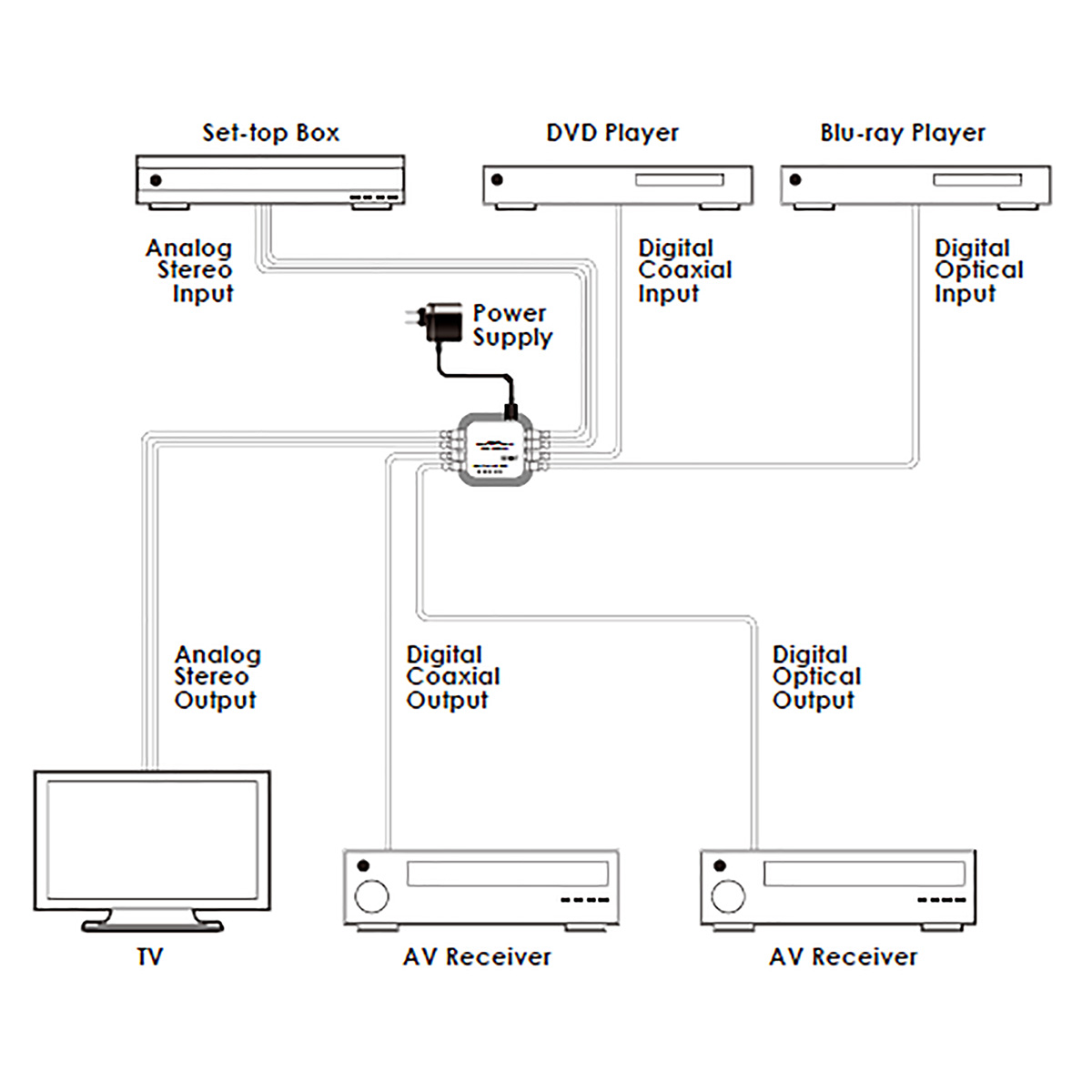

The Universal Digital/Analog Audio Converter with Dolby Digital decoder can convert among Optical, Coaxial and analog audio signals. With the ability to convert digital signals into analog and analog signals into digital, this device supports the simultaneous conversion of audio formats so when converting Optical into analog audio you can also convert it into Coaxial. Therefore, if you find yourself limited by multiple audio formats the Universal Digital/Analog Audio Converter with Dolby Digital decoder is the perfect choice.
Features
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
- Integrated Analog–to-Digital Converter (ADC)
- Supports LPCM input sampling rates from 32 to 96 kHz
- Output sampling rates is adjusted to 48 kHz
- Supports Dolby Digital audio downmixing to 2CH audio
- Supports Dolby Digital sampling rate 48kHz
- Provides electromagnetic-noise-free transmission
- Easy to install and operate
- Compact and elegant design
Brand:
Cypress Technology
Product Type:
Universal Digital/Analog Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Output Audio Format Type:
Analog 2 CH
Converter Type:
Digital to Analog Audio
Special Features:
Dolby Digital Decoder Technology Embedded, Integrated Digital Interpolator Filter and Digital-to-Analog Converter (DAC)
Applications:
Analog Audio to Digital Audio Signal Conversion (ADC), Digital Audio to Analog Audio Signal Conversion (DAC), Digital and Analog Audio Output, Downmixing of Dolby Digital Signal
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Universal Digital/Analog Audio Converter with Dolby Digital Decoder, 5V/1A Power Adaptor, Operation Manual
Performance
Impedance Rating:
47Ω (Input)600Ω (Output)
Signal-to-Noise Ratio:
>80dB
Sample Rate:
32 to 96kHz
Crosstalk Level:
<-85dB
Inputs and Ports
Input Audio Format Type:
LPCM 2 CH
Number of Ports:
3 (Input), 3 (Output)
Power
Current Rating:
1A
Dimensions
Width:
9.7cm
Depth:
8.5cm
Height:
3.5cm
Weight:
110g
Other
Standards Met:
CE, FCC Compliant, UL Certified
No reviews found
