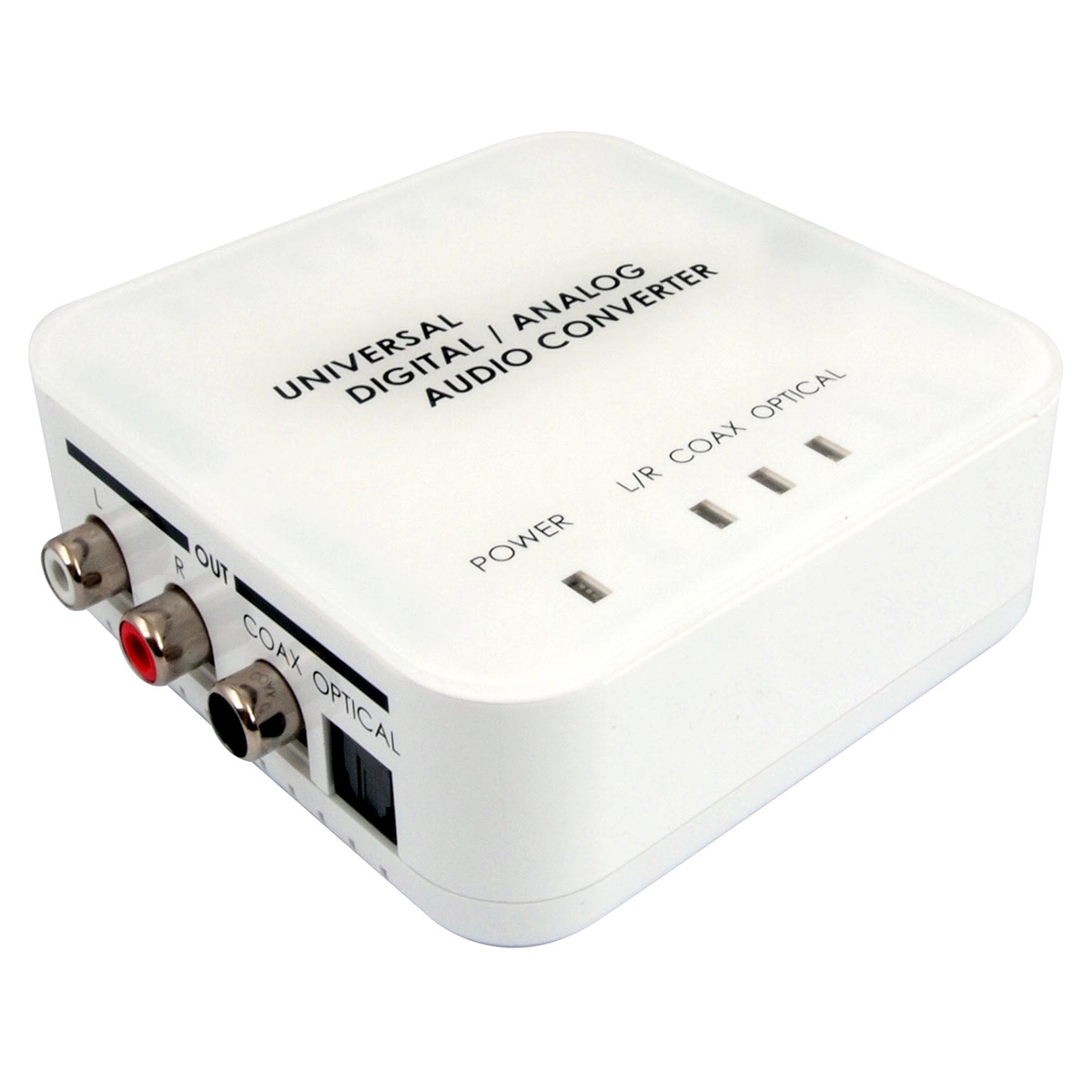

DCT-9 Universal Digital/Analog Audio Converter
Please sign in so that we can notify you about a reply

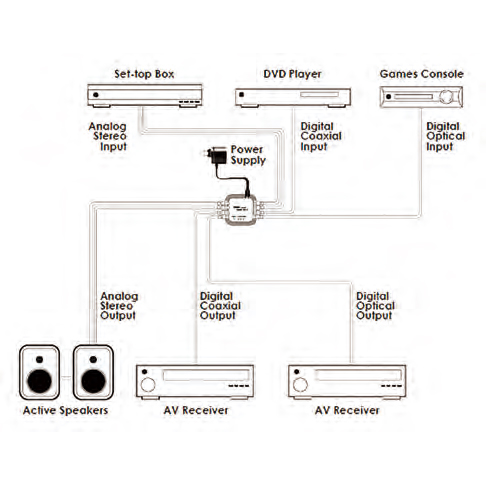

The Universal Digital/Analog Audio Converter allows users to convert Optical, Coaxial and Analog audio signals. The unit can convert between analog and digital formats and vice versa and can output simultaneously to all outputs (depending on the audio format) allowing it to act as an audio distributor.
Features
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
- Integrated Analog-to-Digital Converter (ADC)
- Supports sampling rates of 32, 44.1, 48 or 96 kHz
- Provides electromagnetic-noise-free transmission
- Easy to install and operate
- Compact and elegant design
Brand:
Cypress Technology
Product Type:
Universal Digital/Analog Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Output Audio Format Type:
Analog 2 CH
Converter Type:
Digital to Analog Audio
Special Features:
Supports Digital to Analog Audio Conversion (DAC), Extracts the HDMI Audio Signal from an HDTV's ARC
Applications:
Analog Audio to Digital Audio Signal Conversion (ADC), Digital Audio to Analog Audio Signal Conversion (DAC), Simultaneous Digital and Analog Audio Output, Digital Coaxial to Toslink Optical and Toslink Optical to Coaxial Conversion
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Universal Digital/Analog Audio Converter, 5V/1A Power Adaptor, Operation Manual
Performance
Impedance Rating:
47Ω (Input)600Ω (Output)
Signal-to-Noise Ratio:
>90dB
Sample Rate:
3244.14896kHz
Inputs and Ports
Input Audio Format Type:
TOS LINKS/PDIFLPCM 2 CH
Number of Ports:
3 (Input), 3 (Output)
Power
Current Rating:
1A
Dimensions
Width:
9.7cm
Depth:
8.5cm
Height:
3.5cm
Weight:
120g
Other
Standards Met:
CE, FCC Compliant, UL Certified
