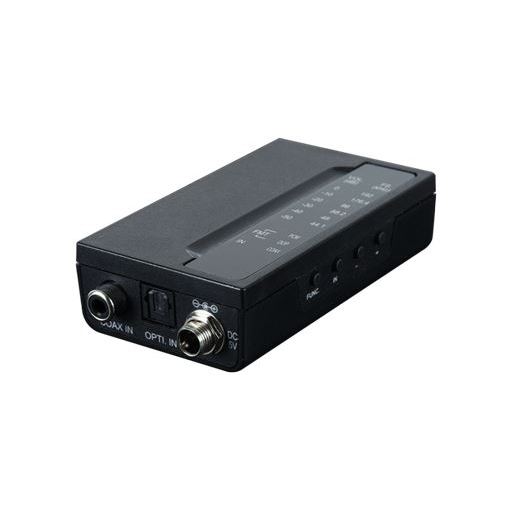

DCT-40 Digital to Analog Audio Convertor
Please sign in so that we can notify you about a reply
DCT-40 is a converter of two channels of digital audio signal from TOSLINK or RCA with a sampling frequency of up to 192 kHz into analog stereo audio (2xRCA) with auto-recognition of PCM/DoP formats, there is a built-in level control. Digital-to-analog conversion is performed at the hardware level; the built-in DSP processor eliminates distortion of the audio signal during conversion. Automatically mutes harsh sounds when connected to an audio source. Control by buttons on the body.

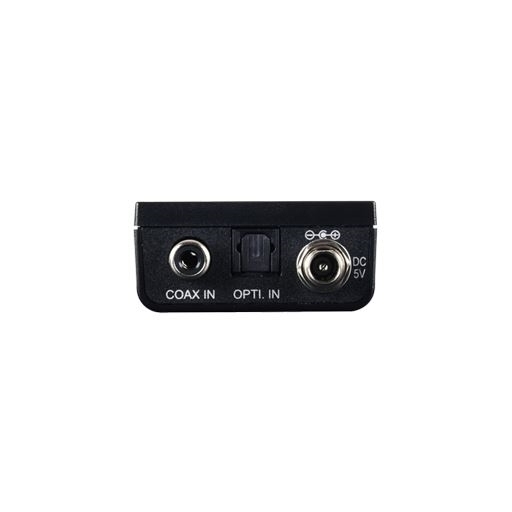

Features- Works with S/PDIF digital audio sources with coaxial and optical ports
- Converts digital stereo audio signal to analogue
- Conversion to analog stereo with sampling rates up to 192 kHz (automatic recognition)
- Automatically recognizes PCM/DoP formats

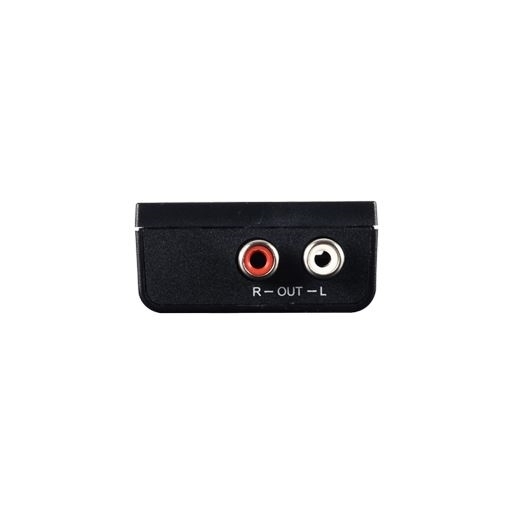

- Analog stereo output (2xRCA) for connecting active speakers, power amplifiers or broadcasting audio signals further along the path
- Volume level adjustment in the range from 0 to −50 dB in 1 dB steps
- Eliminates crackling and noise that occurs when connecting equipment “live”
- Integrated DSP processor for distortion-free audio conversion
- Decoding DoP (DSD over PCM) audio stream from optical or coaxial input
- Clear indication of the current input audio format, volume level/sampling rate, active input
- Buttons for adjusting volume, selecting display mode and audio source
- Compact size, light weight
Brand:
Cypress Technology
Specifications
Product Type:
Digital to Analog Audio Convertor
Maximum Operating Temperature:
40°C
Output Audio Format Type:
DoP
Number of Channels:
Converter Type:
Digital to Analog Audio
Special Features:
Automatic PCM/Dop Audio Format Detection, Compact And Light Weight Design,
Applications:
Music Source Archival, Audio Equipment Testing, Recording Studios, Conference Rooms, Ballroom
Material:
Plastic (Chassis)
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xDC 5V Power Adaptor, 1xOperation Manual
Performance
Bit Depths:
24bits
Sample Rate:
192kHz
Inputs and Ports
Input Audio Format Type:
LPCM 2.0
Number of Ports:
1 (Input), 1 (Output)
Power
Current Rating:
2.6A
Dimensions
Width:
5.1cm
Depth:
9.8cm
Height:
2.2cm
Weight:
62g
Other
Standards Met:
CE/FCC/UL Certified, US/EU Standards
