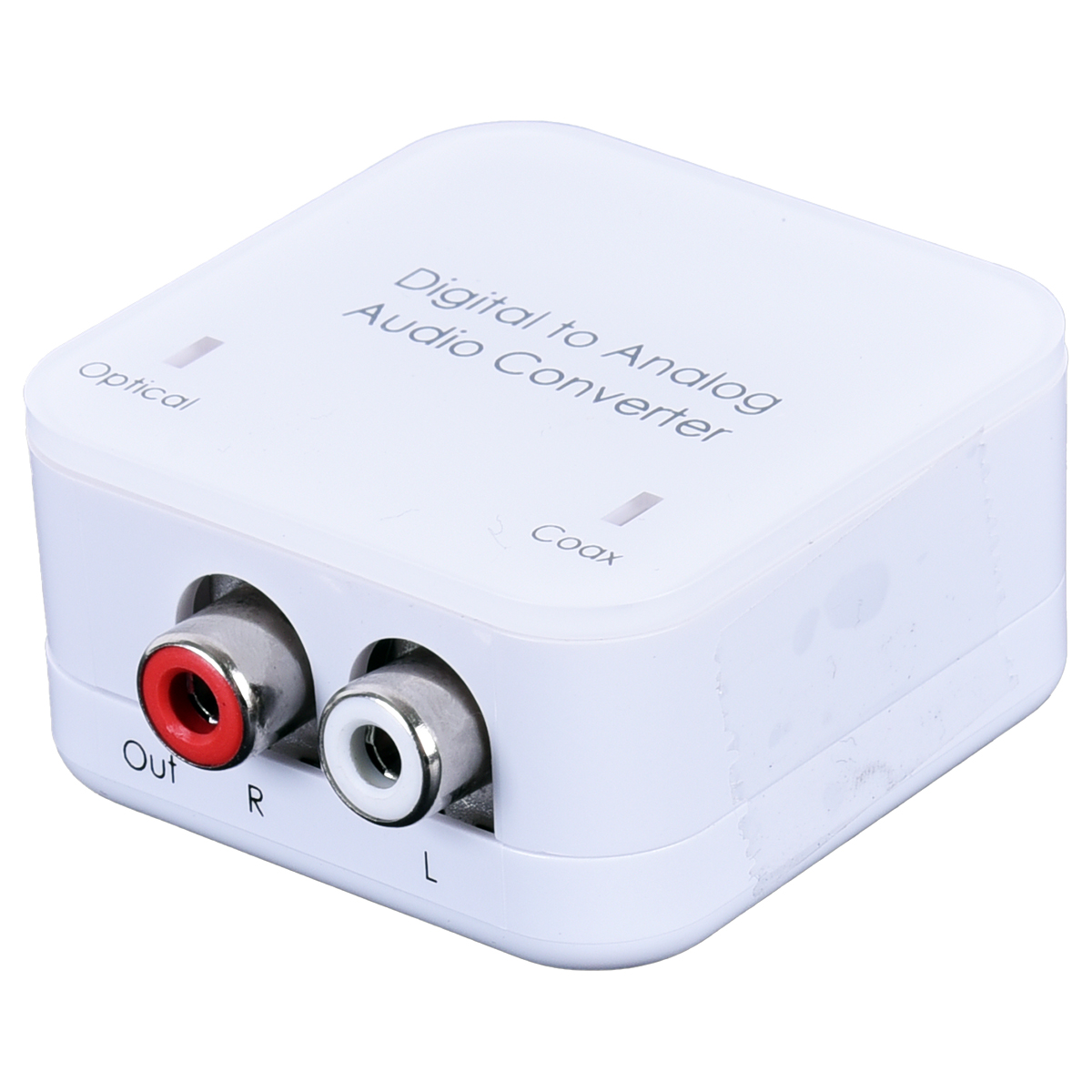

DCT-3AN Digital to Analog Audio Converter (up to 192kHz)
Please sign in so that we can notify you about a reply
The Digital to Analog Audio Converter is an easy to use product that converts Coaxial or Optical audio signals into analog Stereo (L/R) audio. It can be easily switched between either Coaxial or Optical inputs. With its compact, elegant design and simple LED input status make it easier for users to connect up and use instantly.
Features
- Supports digital audio input (Coaxial/Optical) and stereo analog audio output (L/R)
- Integrated digital interpolator filter and Digital to Analog Converter (DAC
- Supports uncompressed digital stereo audio input
- Supports S/PDIF audio at 192kHz/24-bit data for conversion to left and right analog channels
- Compact size and easy to install
Brand:
Cypress Technology
Specifications
Product Type:
Digital to Analog Audio Converter
Maximum Operating Temperature:
+40°C
Output Audio Format Type:
Analog 2
Converter Type:
Digital to Analog Audio
Special Features:
Supports Digital Audio Input (Coaxial/Optical), Stereo Analog Audio Output (L/R)
Applications:
HDTV, Digital Output Conversion, 24-Bit DAC Conversion
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xDigital to Analog Audio Converter, 1x5V/1.2A DC Power Adaptor, 1xOperation Manual
Performance
Impedance Rating:
600Ω
Bit Depths:
24bits
Sample Rate:
3244.14888.296176.4192kHz
Inputs and Ports
Input Audio Format Type:
LPCM 2 CH
Number of Ports:
2 (Input), 2 (Output)
Power
Current Rating:
1.2A
Dimensions
Width:
5.6cm
Depth:
4.6cm
Height:
2.2cm
Weight:
30g
Other
Standards Met:
CE, FCC Compliant, UL Certified
