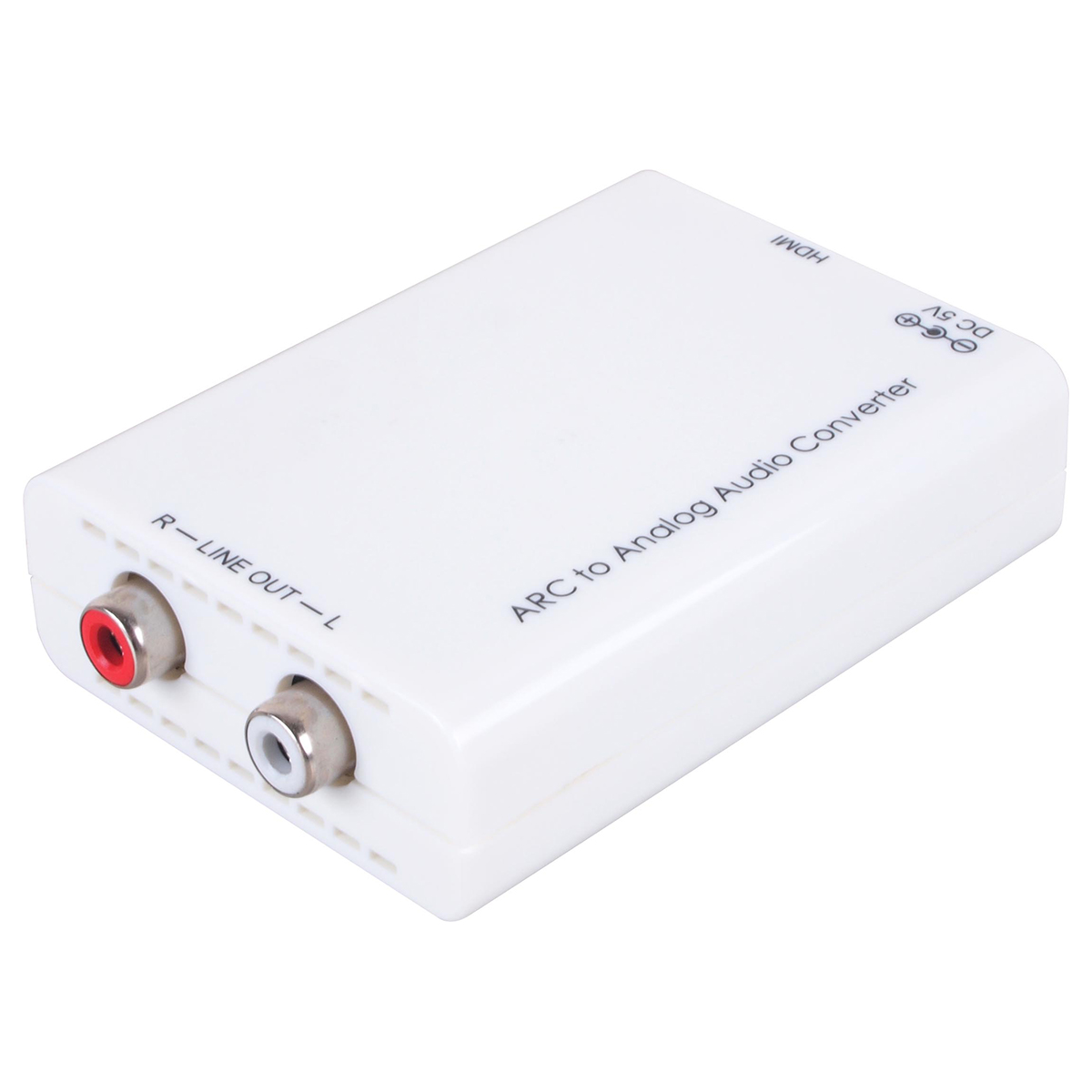

DCT-25 HDMI ARC to Stereo Audio Converter
Please sign in so that we can notify you about a reply

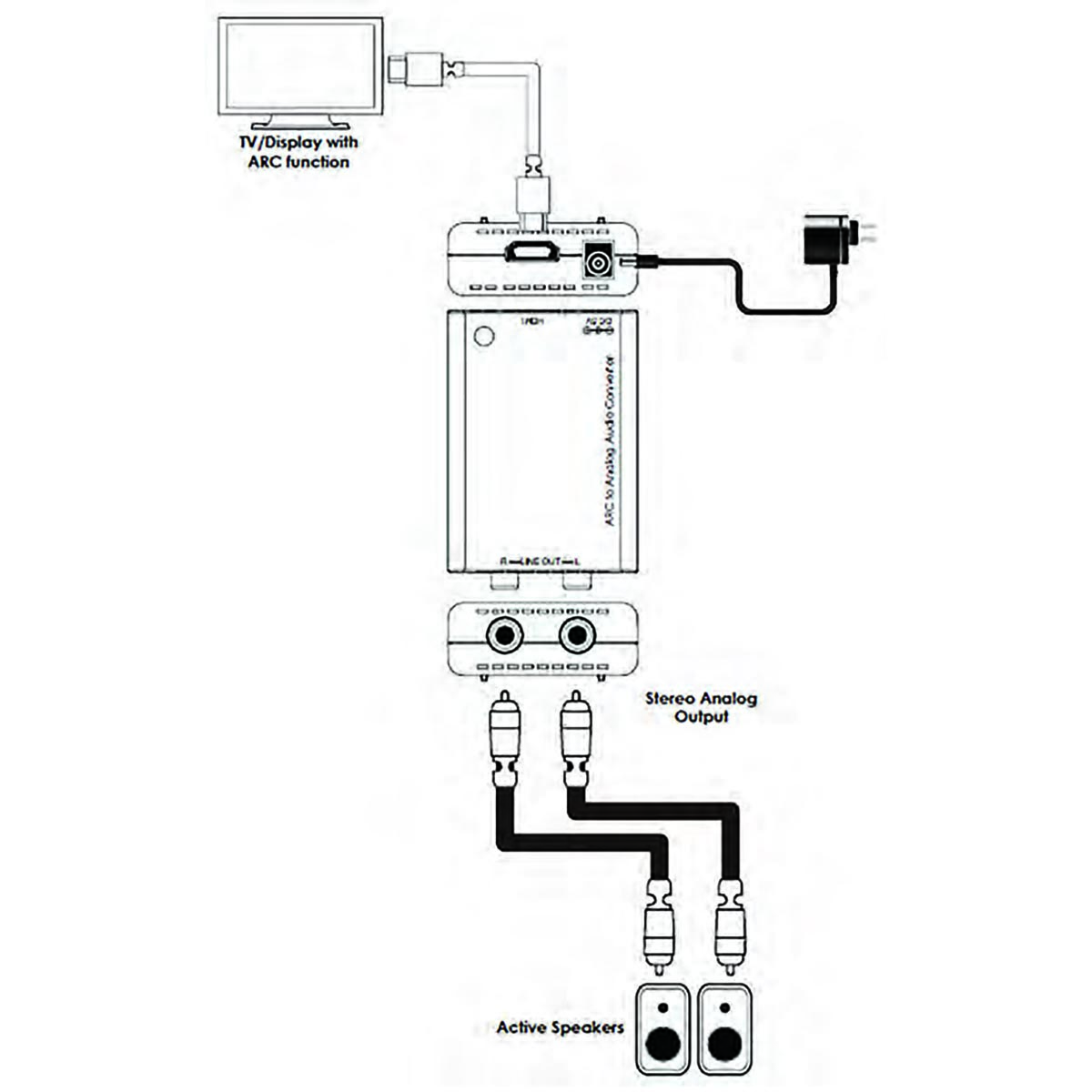

The ARC to Analog Audio Converter is designed to extract audio signal from an HDTV’s HDMI ARC (Audio Return Channel) connection and convert it to an analog stereo signal, allowing the connection of an HDTV with HDMI-only output to non-HDMI equipped amplifiers, AV receivers or Active Speakers. It supports HDMI audio sampling rates up to 192kHz and analog stereo 2CH audio output.
Features
- Supports Digital to Analog audio Conversion (DAC)
- Extracts the HDMI audio signal from an HDTV’s ARC connection and convert it to an Line-level analog stereo output
- Supports HDMI sampling rate up to 192kHz
- Synchronous output sound on TV and Line out
- Supports volume control from TV’s remote control via CEC function
- Plug and play with no software require
Brand:
Cypress Technology
Product Type:
Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Converter Type:
ARC to Analog Audio
Special Features:
Supports Digital to Analog Audio Conversion (DAC), Extracts the HDMI Audio Signal from an HDTV's ARC
Applications:
Analog Audio Sound System Over Digital Audio Signal, TV Audio Output Over Active Speakers, Video Game Player
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xARC to Analog Audio Converter Box, 1x5V DC Power Adaptor, Operational Manual
Performance
Signal-to-Noise Ratio:
>80dB
Frequency Rating:
±1dBFS
Sample Rate:
Up to 192kHz
Crosstalk Level:
<-80dB
Inputs and Ports
Number of Ports:

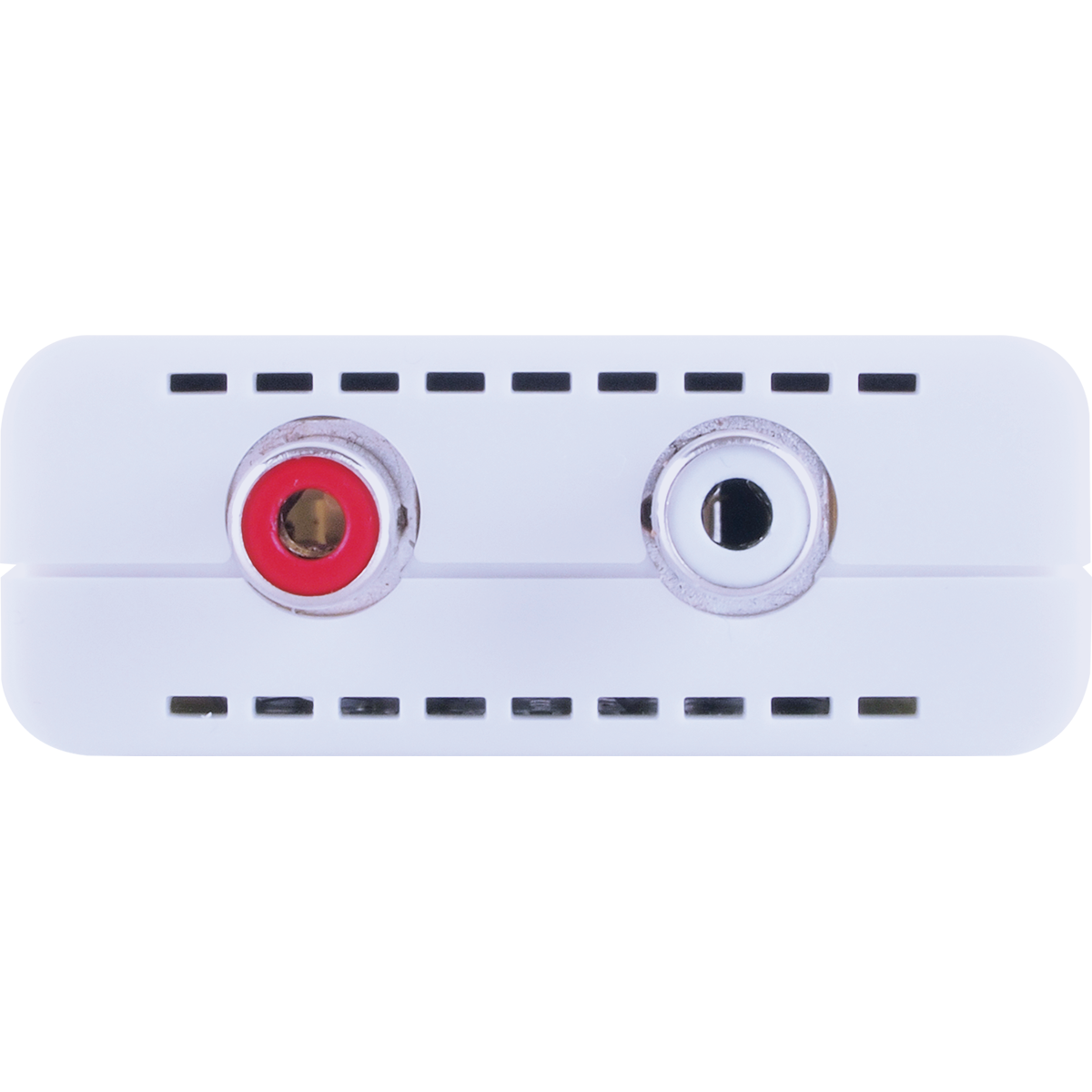

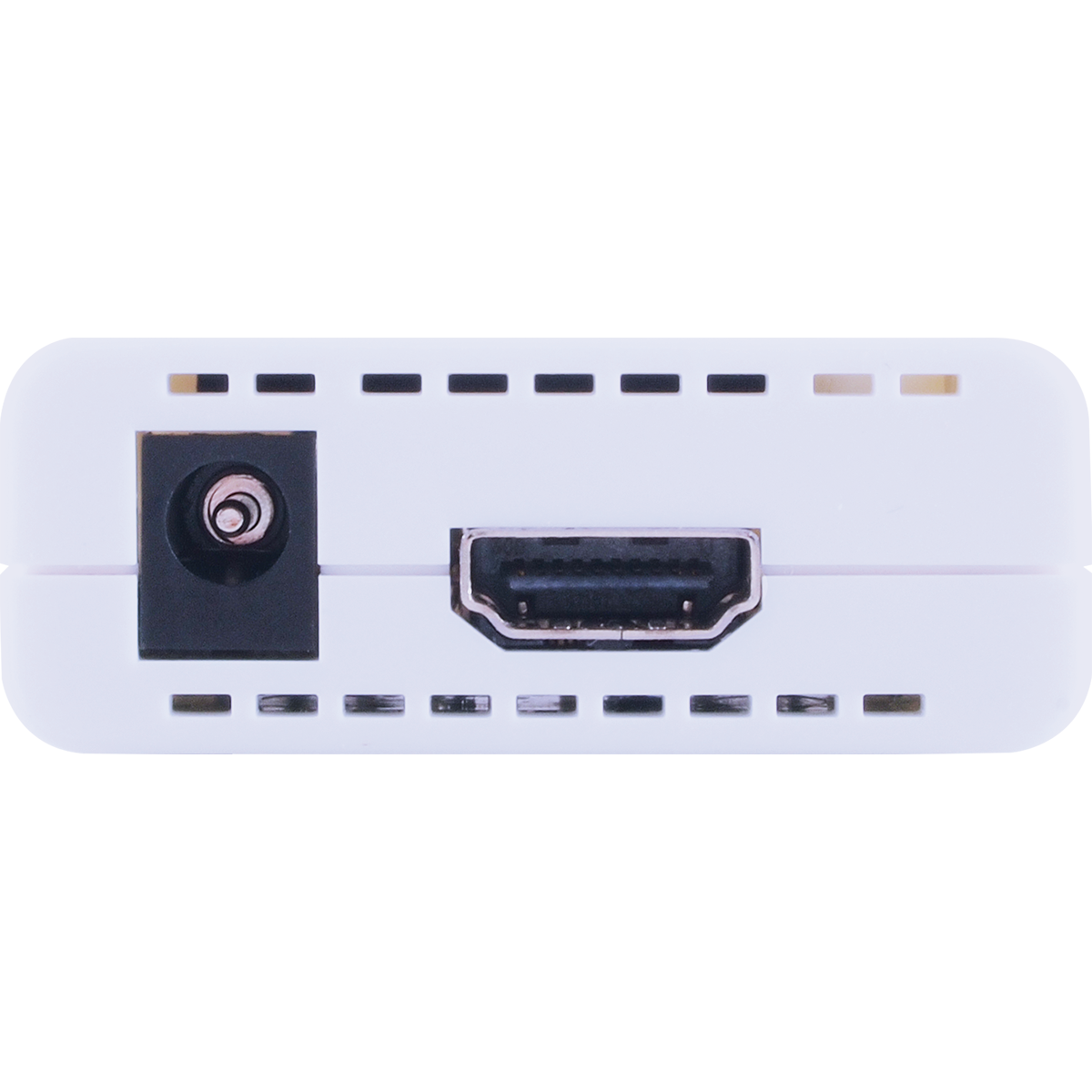

1 (HDMI ARC), 1 (Output)
Power
Current Rating:
1A
Dimensions
Width:
5.5cm
Depth:
8.05cm
Height:
2.2cm
Weight:
46g
Other
Standards Met:
CE, FCC Compliant, UL Certified
