DCT-2 Digital Audio Converter with Dual Outputs
Please sign in so that we can notify you about a reply
The Digital Audio Converter with Dual Outputs will convert between Coaxial and Optical digital audio formats. This compact and convenient unit accepts a stereo or surround (up to 5.1 channels) audio signal through either Coaxial cable or Optical cable, and passes the unchanged signal to both its Coaxial and Optical output ports. With its built-in signal enhancement feature, the unit also serves as a repeater of digital audio signals to extend up to double the transmission distance.
Features
- Supports two-way conversion: coaxial to optical or optical to coaxial
- Supports input audio signals from 2 channels to up to 5.1 channels, output signal follows input
- Supports signal enhancement of S/PDIF audio and extends the transmission distance, through coaxial and/or optical cables
- Select one input from coaxial or optical input ports, and send the S/PDIF audio signal to both coaxial and optical output ports simultaneously
- Compact and easy to use
Brand:
Cypress Technology
Specifications
Product Type:
Audio Converter
Maximum Operating Temperature:
+40°C
Number of Channels:
Converter Type:
Digital Audio
Special Features:
Supports Two-way Conversion: Coaxial to Optical or Optical to Coaxial, Supports Input Audio Signals from 2 Channels to Up to 5.1 Channels, Output Signal follows Input, Supports Signal Enhancement of S/PDIF Audio and Extends the Transmission Distance, thro
Applications:

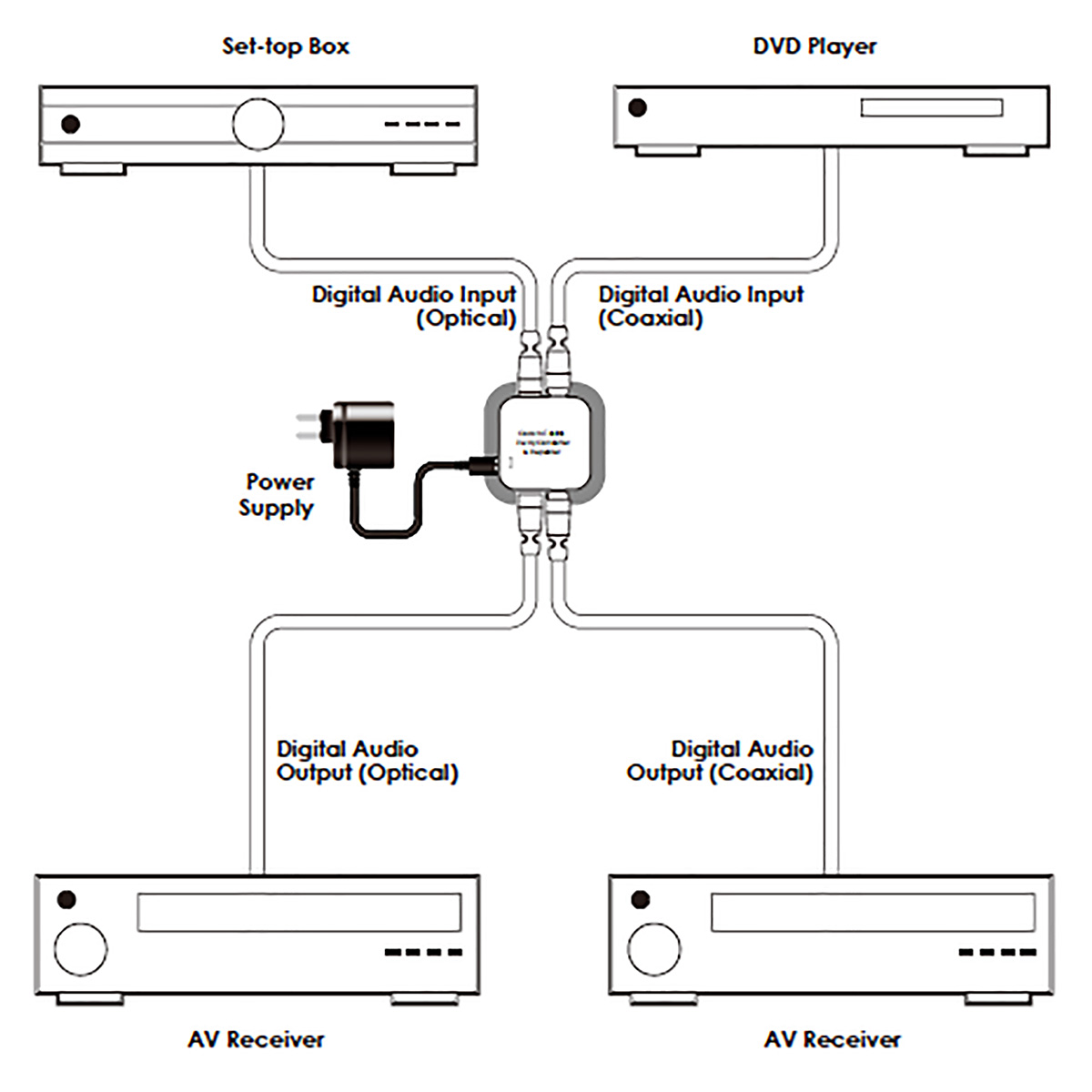

Convert an Optical Digital Signal to a Coaxial, Digital Signal Convert a Coaxial, Digital Signal to an Optical, Digital Signal, Distribute Digital Audio to 2 Locations, Extend Optical or Coaxial Cable Distance
Material:
Plastic
Minimum Operating Temperature:
0°C
Includes:
Digital Audio Converter with Dual Outputs, 5V/1.2A Power Adaptor, Operation Manual
Inputs and Ports
Input Audio Format Type:
LPCM 2 CH
Number of Ports:
2 (Input), 2 (Output)
Power
Current Rating:
1.2A
Dimensions
Width:
5.8cm
Depth:
4.6cm
Height:
2.4cm
Weight:
25g
Other
Standards Met:
CEFCC Compliant, UL Certified
