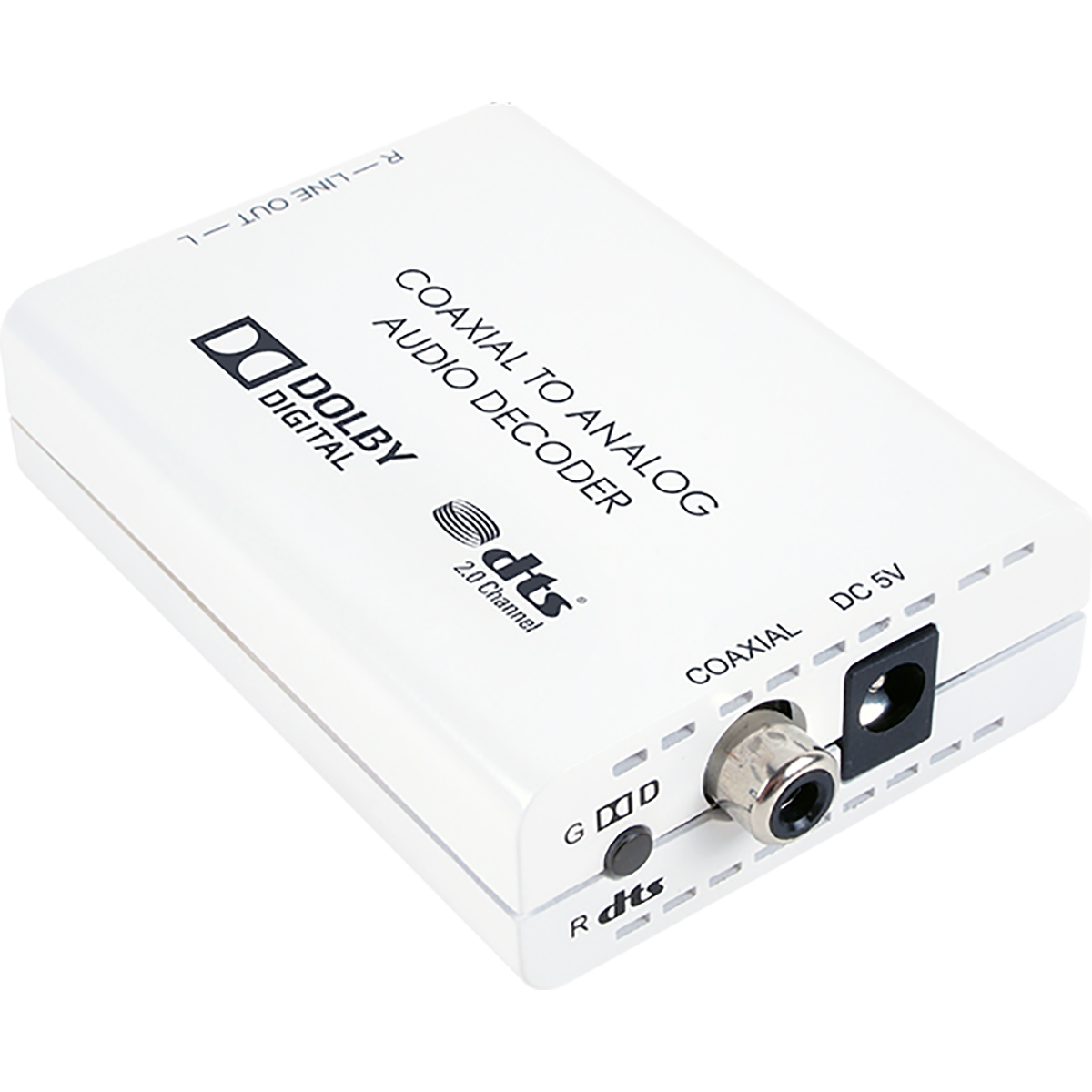

DCT-1DD Coaxial to L/R Stereo Audio Converter
Please sign in so that we can notify you about a reply
The Coaxial to Analog Audio Converter (DAC) with Dolby Digital & DTS 2.0 Decoder provides the ideal solution for converting an coaxial digital audio signal to analog stereo audio. It provides high quality sound conversion. The Dolby Digital & DTS 2.0 function guarantees that Dolby digital audio signals are down-mixed to analog stereo without loss of quality. This unit is perfect for use in computer audio systems or digital mixing consoles.
Features
- Supports coaxial digital audio signal input and conversion into analog audio signal L/R output
- Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)
- Supports DTS 2.0 5.1CH audio sampling rates up to 96 kHz
- Supports Dolby Digital 5.1CH audio sampling rates up to 48 kHz
- Supports Dolby Digital & DTS 2.0 audio downmixing to 2-channel audio
- Supports S/PDIF bitstream 24-bit of data for the left and right channels
- Compact, elegant design and easy to install
Brand:
Cypress Technology
Product Type:
Coaxial to Stereo Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Output Audio Format Type:
Analog 2 CH
Converter Type:
Coaxial to Analog Audio
Special Features:
Supports Coaxial Digital Audio Signal Input and Conversion into Analog Audio Signal L/R Output, Supports LPCM 2 CH Audio Sampling Rates from 32 to 96kHz (32, 44.1, 48, 88.2 and 96kHz), Supports DTS 2.0 5.1CH Audio Sampling Rates Up to 96kHz, Supports Dolb
Applications:
Converting Digital Optical Audio into Analog, Stereo Converting Digital Audio for Output on Analog, Stereo Active Speakers, HDTV with Digital Audio only Output to Analog, Amplifier Input, Improving the Digital to Analog Conversion, Quality from any Stereo
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xCoaxial to Analog Audio Converter with Dolby Digital Decoder, DTS 2.0 Decoder, 1x5V/1.2A DC Power Adapter, 1xOperation Manual
Performance
Signal-to-Noise Ratio:
>100dB
Bit Depths:
24bits
Frequency Rating:
±1dB
Sample Rate:
48kHz
Crosstalk Level:
<-119dB

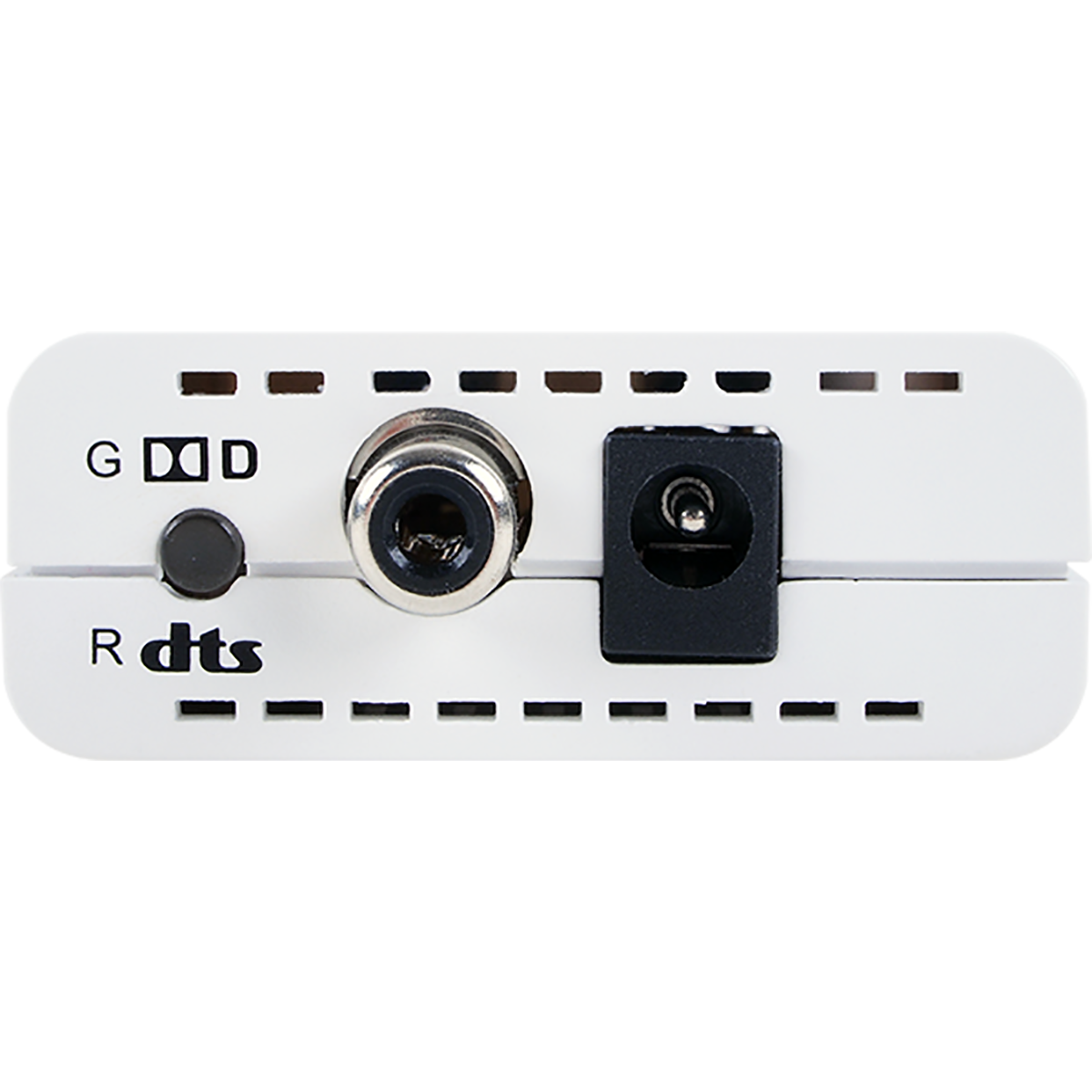

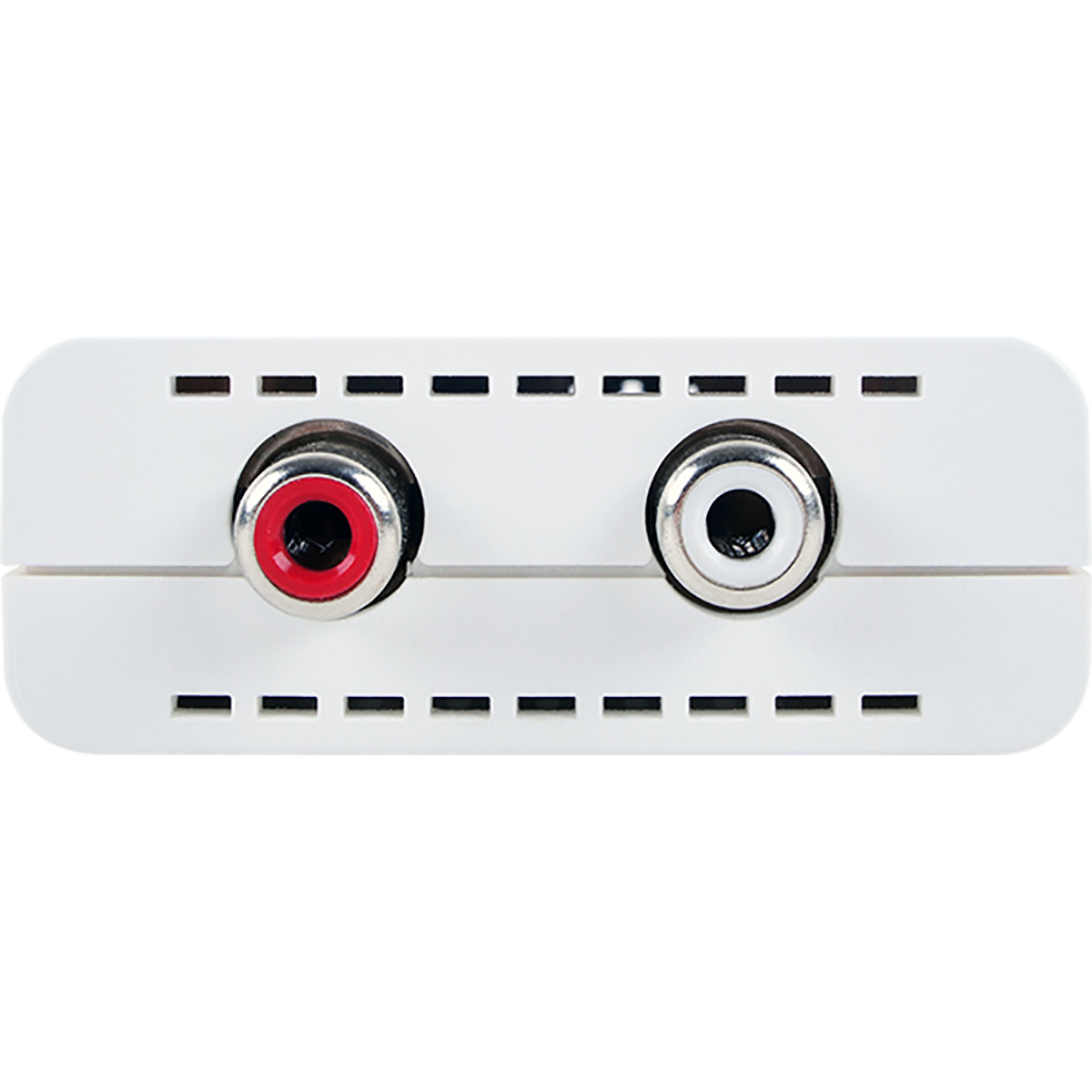

Inputs and Ports
Input Audio Format Type:
LPCM 2 CH
Number of Ports:
1 (Input), 1 (Output)
Power
Current Rating:
1A
Dimensions
Width:
5.5cm
Depth:
8.6cm
Height:
2.2cm
Weight:
42g
Other
Standards Met:
CE, FCC Compliant, UL Certified
