DCT-18N Adjustable Stereo Lip Sync Corrector
Please sign in so that we can notify you about a reply

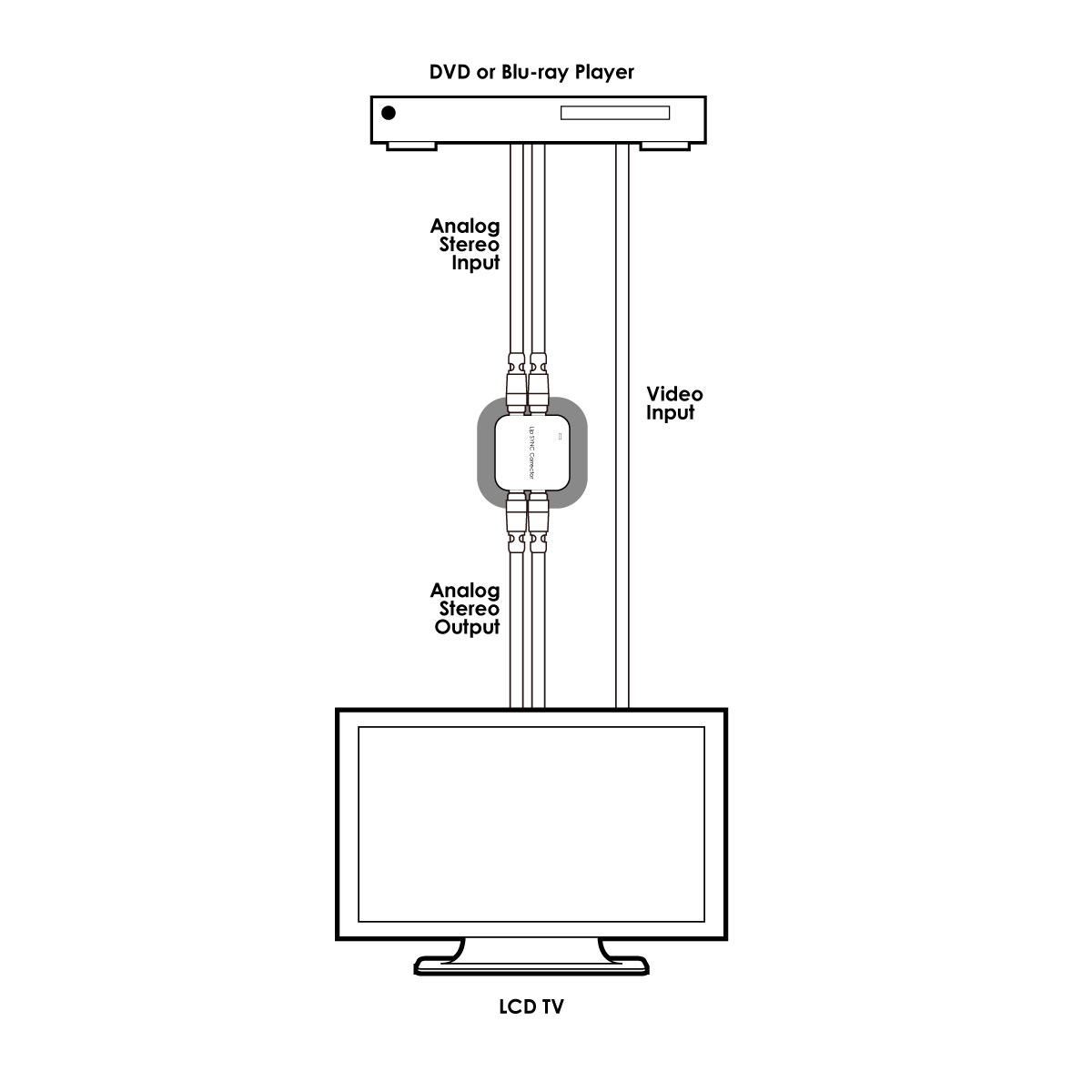

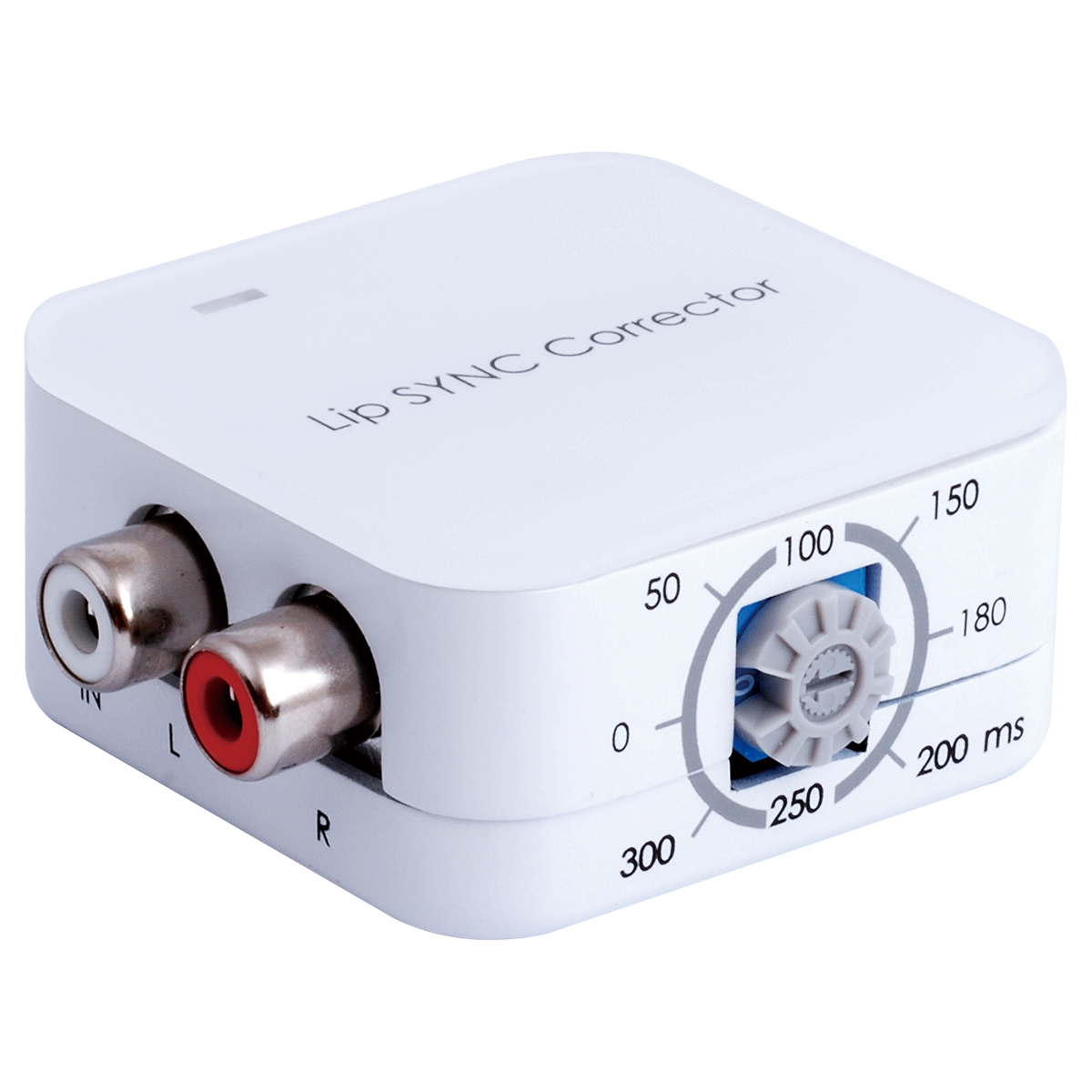

The Analog Stereo Lip Sync Corrector is a compact device that can correct audio delays between audio and video. When distributing video over long distances through multiple devices like distribution amplifiers and set-top boxes there can sometimes be a noticeable delay which results in audio being played before the video. This device allows you to manually adjust the audio delay from 0 ~300ms ms allowing you to perfectly synchronize your audio and video, eliminating any mismatch.
Features
- Analog to analog signal bypass

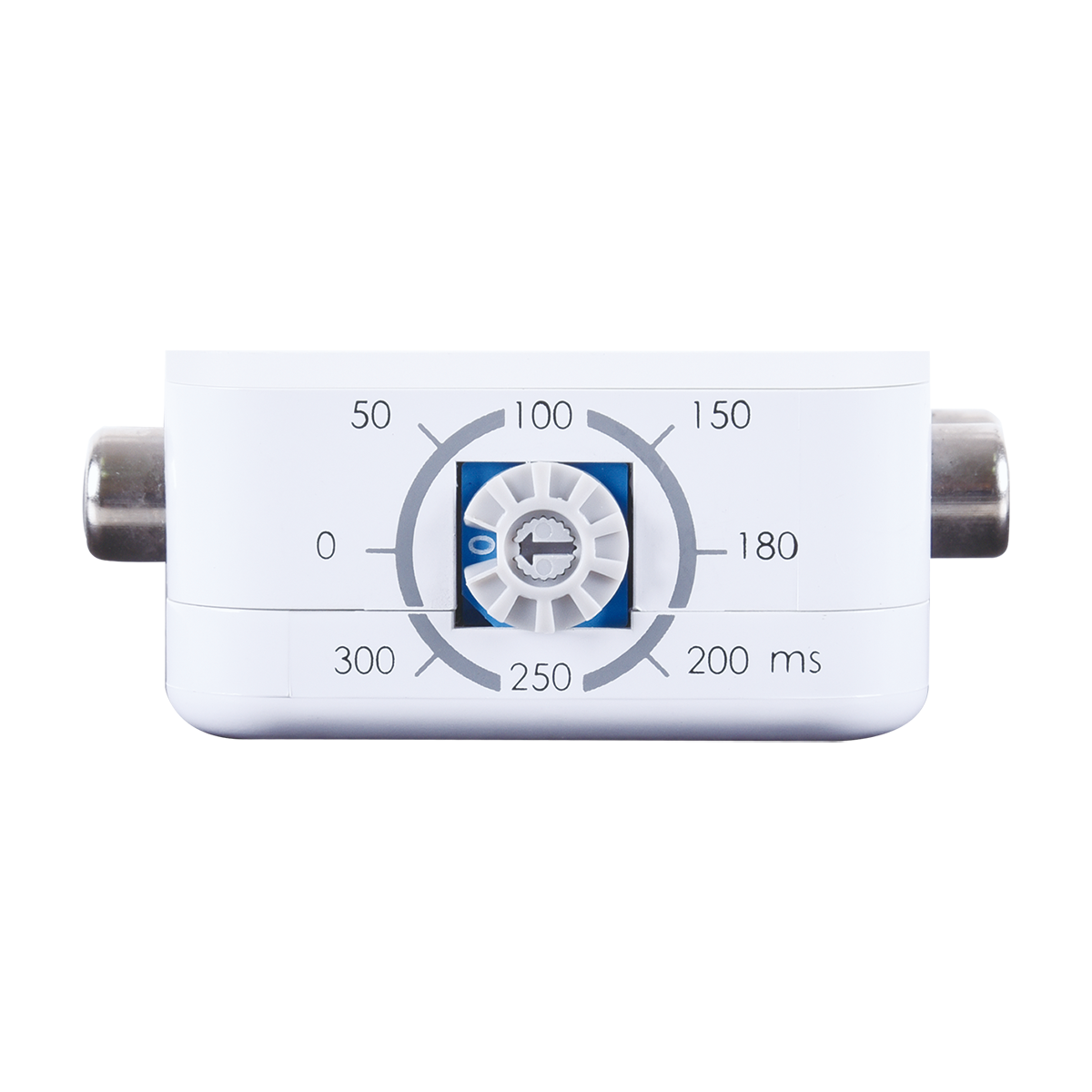

- 8 different sectors adjustment on audio delay time
- Low power consumption
Brand:
Cypress Technology
Product Type:
Analog Stereo Corrector
Specifications
Maximum Operating Temperature:
+40°C
Converter Type:
Audio
Special Features:
Analog to Analog Signal Bypass, 8 Different Sectors, Adjustment on Audio Delay Time, Low Power Consumption
Applications:
Home Theatre, Cable TVSet-Top Box, Multi-Zone AV Receivers, Audio Matrixing
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xAnalog Stereo Lip Sync Corrector, 1x5V/1A Power Adaptor, Operation Manual
Performance
Impedance Rating:
44KΩ
Signal-to-Noise Ratio:
>80dB
Frequency Rating:
±0.5dB 20Hz to 20kHz
Crosstalk Level:
<-80dB
Inputs and Ports
Number of Ports:

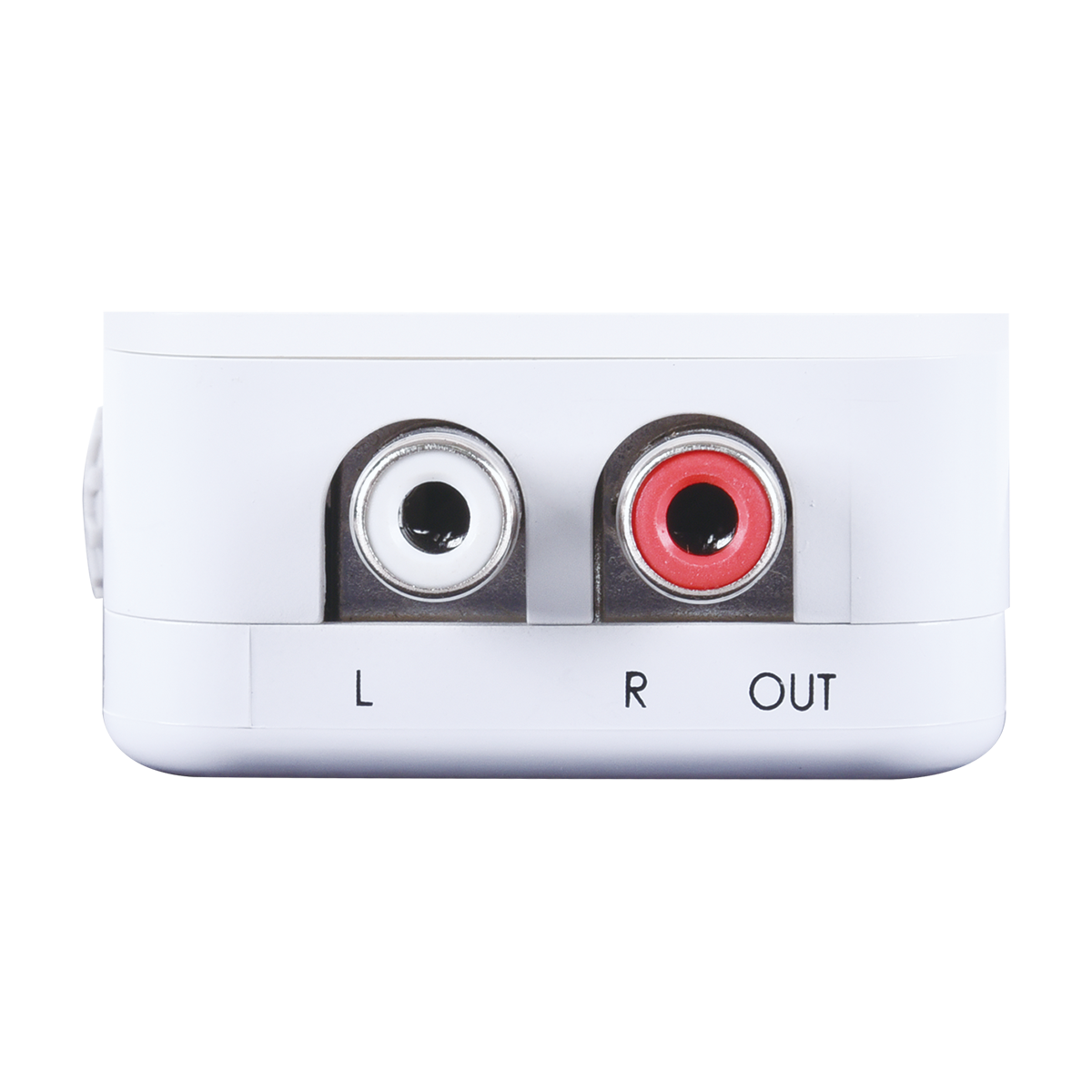

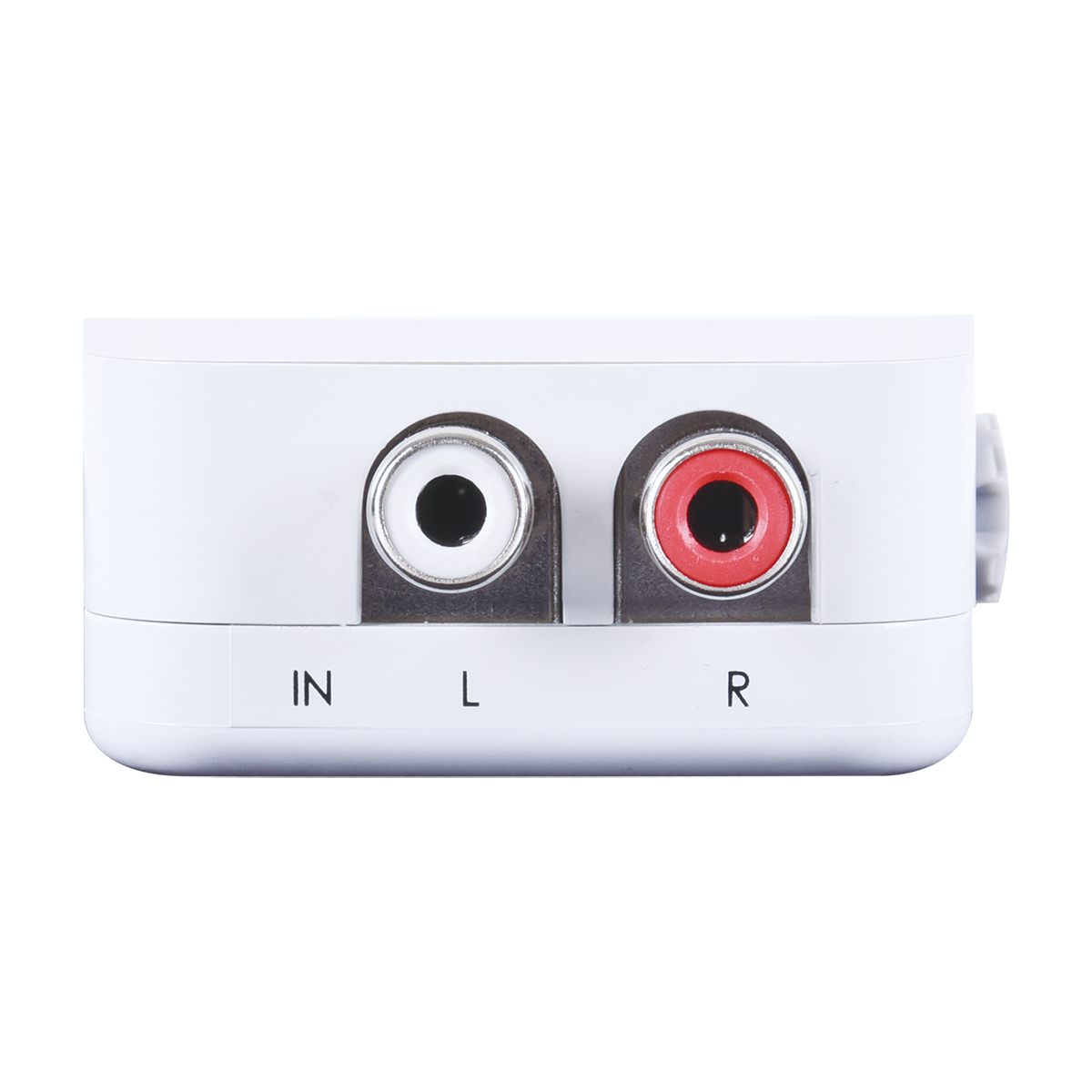

1 (Input), 1 (Output)
Power
Current Rating:
1A
Dimensions
Width:
5.56cm
Depth:
4.7cm
Height:
2.3cm
Weight:
32g
Other
Standards Met:
CE, FCC Compliant, UL Certified
