DCT-15 Digital to Analog Audio Converter
Please sign in so that we can notify you about a reply

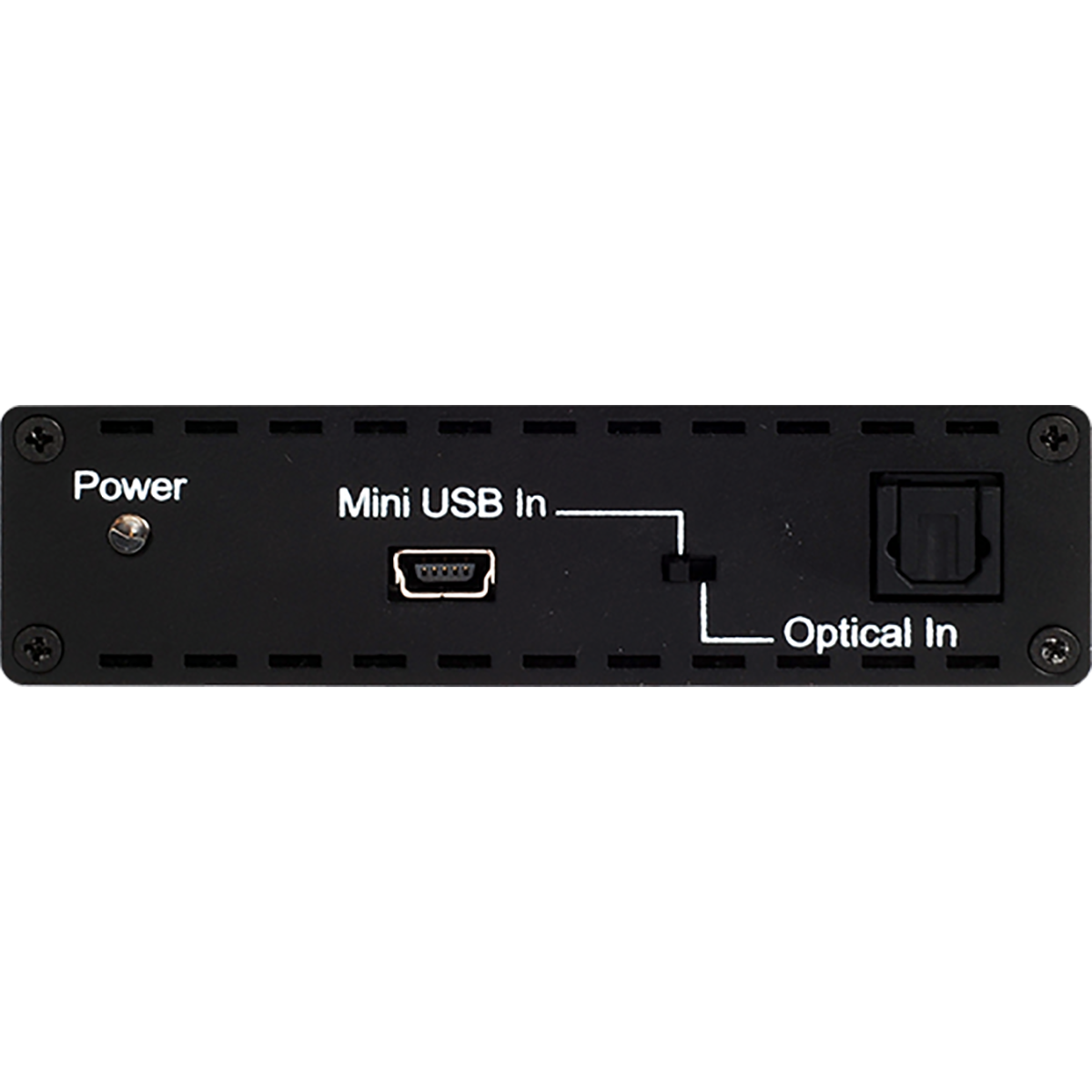

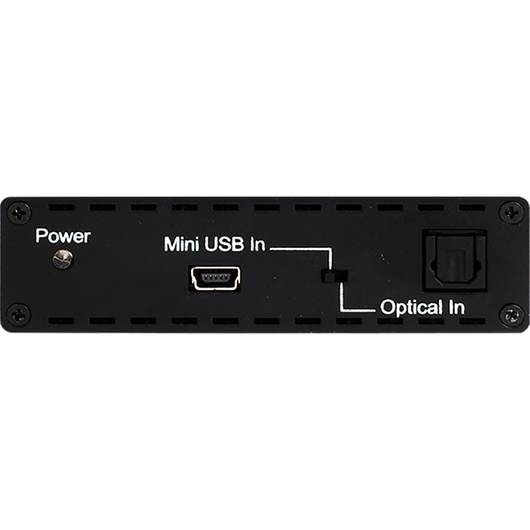

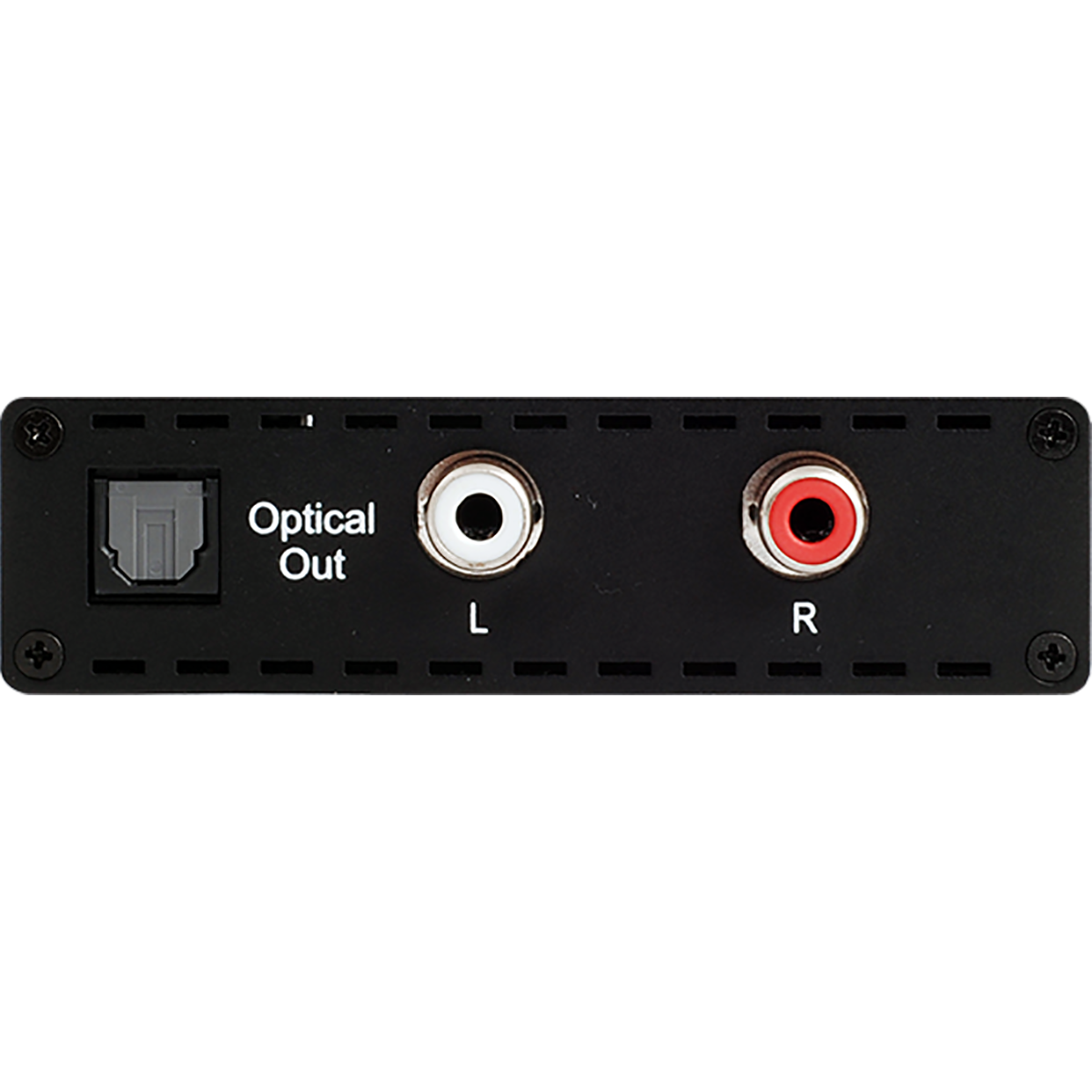

The USB Audio Converter with Optical will convert a digital audio signal to analog whilst simultaneously outputting a digital audio signal. It has USB and Optical inputs and is designed to be powered by the USB connection. This optical output can also be linked to an amplifier or sound system that has an Optical S/PDIF input, whilst the analog output can be connected to a display or to an active speaker system to simultaneously output stereo audio.
Features- USB 2.0 compatible
- USB audio device class specification v1.0 compatible
- USB High performance 16-bit Stereo, 48/44.1 kHz sampling rate for audio playback
- Optical sampling rate supports up to 192 kHz/24-bit
- Low power consumption
Brand:
Cypress Technology
Specifications
Product Type:
Audio Converter
Maximum Operating Temperature:
40°C
Number of Channels:
Converter Type:
Digital to Analog Audio
Special Features:
USB 2.0 Compatible, Low Power Consumption
Applications:
High Performance Audio Output
Material:
Aluminium (Chassis)
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Audio Box, Operation Manual
Performance
Signal-to-Noise Ratio:
>80dB
Bit Depths:
16 to 24bits
Frequency Rating:
±1dBFS
Sample Rate:
192kHz
Crosstalk Level:
<-80dB
Inputs and Ports
Input Audio Format Type:
USB Audio 2.0
Number of Ports:
2 (Input), 2 (Output)
Dimensions
Width:
9cm
Depth:
12cm
Height:
2.5cm
Weight:
250g
No reviews found
