DCT-1 Optical Digital to Analog Audio Converter
Please sign in so that we can notify you about a reply

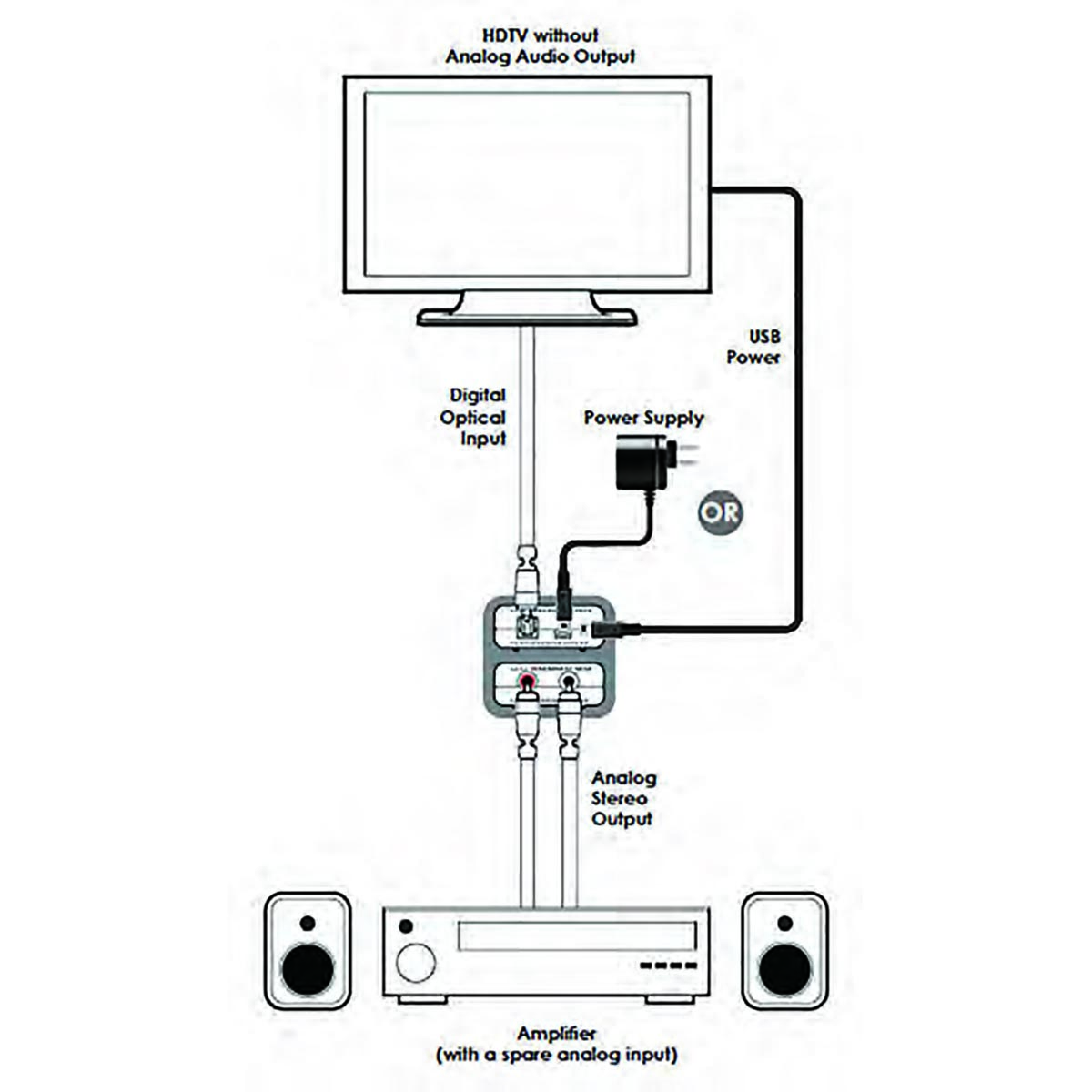

The Optical to Analog Audio Converter (DAC) provides the ideal solution for converting an Optical digital audio signal to analog stereo audio. With support for audio sampling rates up to 192 kHz/24-bit, it provides high quality sound conversion. This unit is perfect for use in, computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-ray players or computers without the need for a separate power supply.
Features
- Supports optical digital audio signal input and conversion into analog stereo audio output
- Supports uncompressed digital LPCM stereo audio input
- Supports LPCM 2CH audio sampling rates up to 192 kHz
- Supports S/PDIF bitstream 24-bit of data for the left and right channels
- Compact, elegant design and easy to install
Note: Does not support the decoding of compressed audio signals such as Dolby Digital and DTS
Brand:
Cypress Technology
Product Type:
Optical to Analog Audio Converter
Specifications
Maximum Operating Temperature:
+40°C
Converter Type:
Digital to Analog
Applications:
Converting Digital Optical Audio into Analog, Stereo Converting Digital Audio for Output on Analog, Stereo Active Speakers, HDTV with Digital Audio only Output to Analog, Amplifier Input, Improving the Digital to Analog Conversion, Quality from any Stereo
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Optical to Analog Audio Converter, Mini-USB to USB Type A Cable, Operation Manual
Performance
Signal-to-Noise Ratio:
>80dB
Bit Depths:
24bits
Frequency Rating:
<±1dB
Sample Rate:
L/R: 48kHz
Crosstalk Level:
<-80dB
Inputs and Ports
Input Audio Format Type:
LPCM 2 CH
Number of Ports:

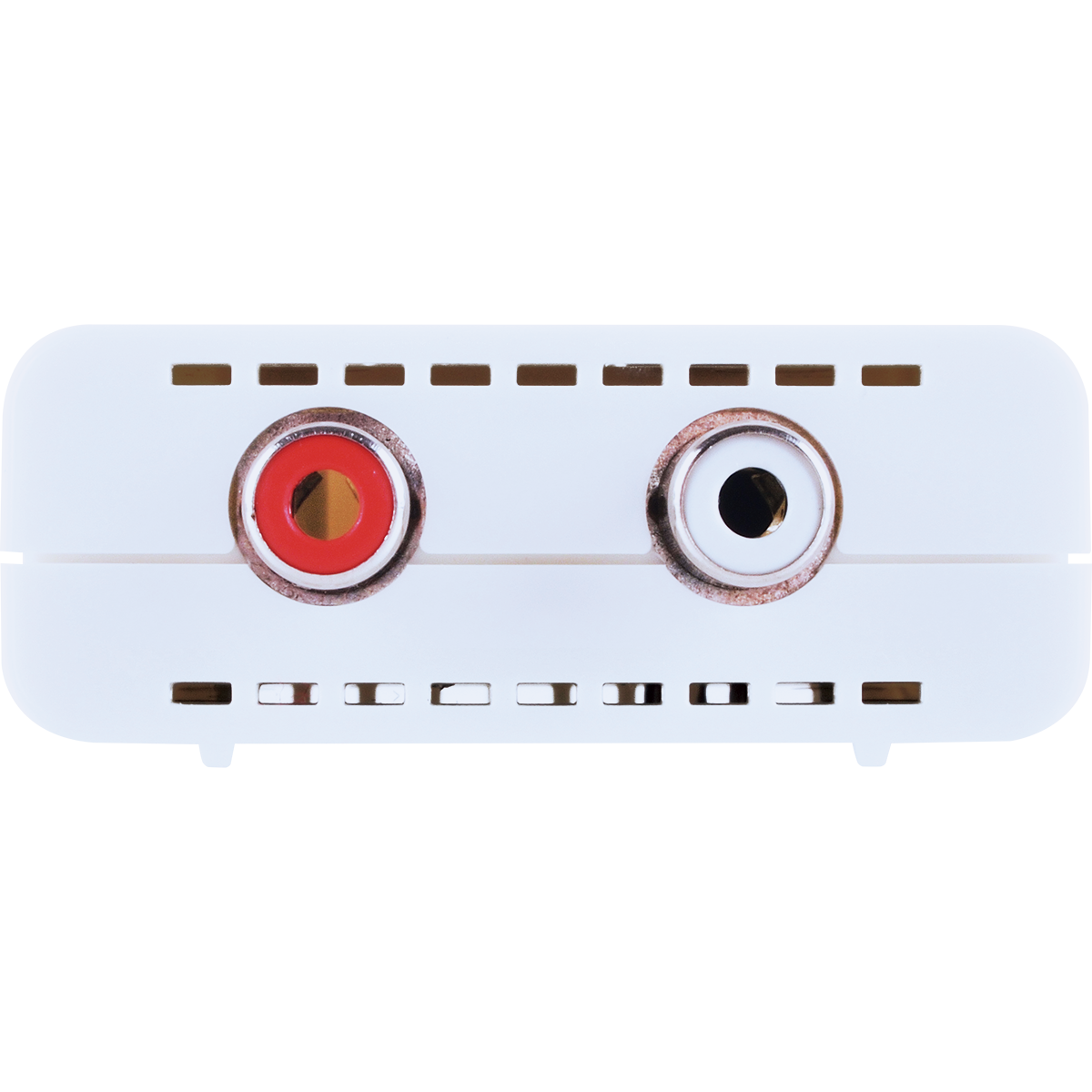

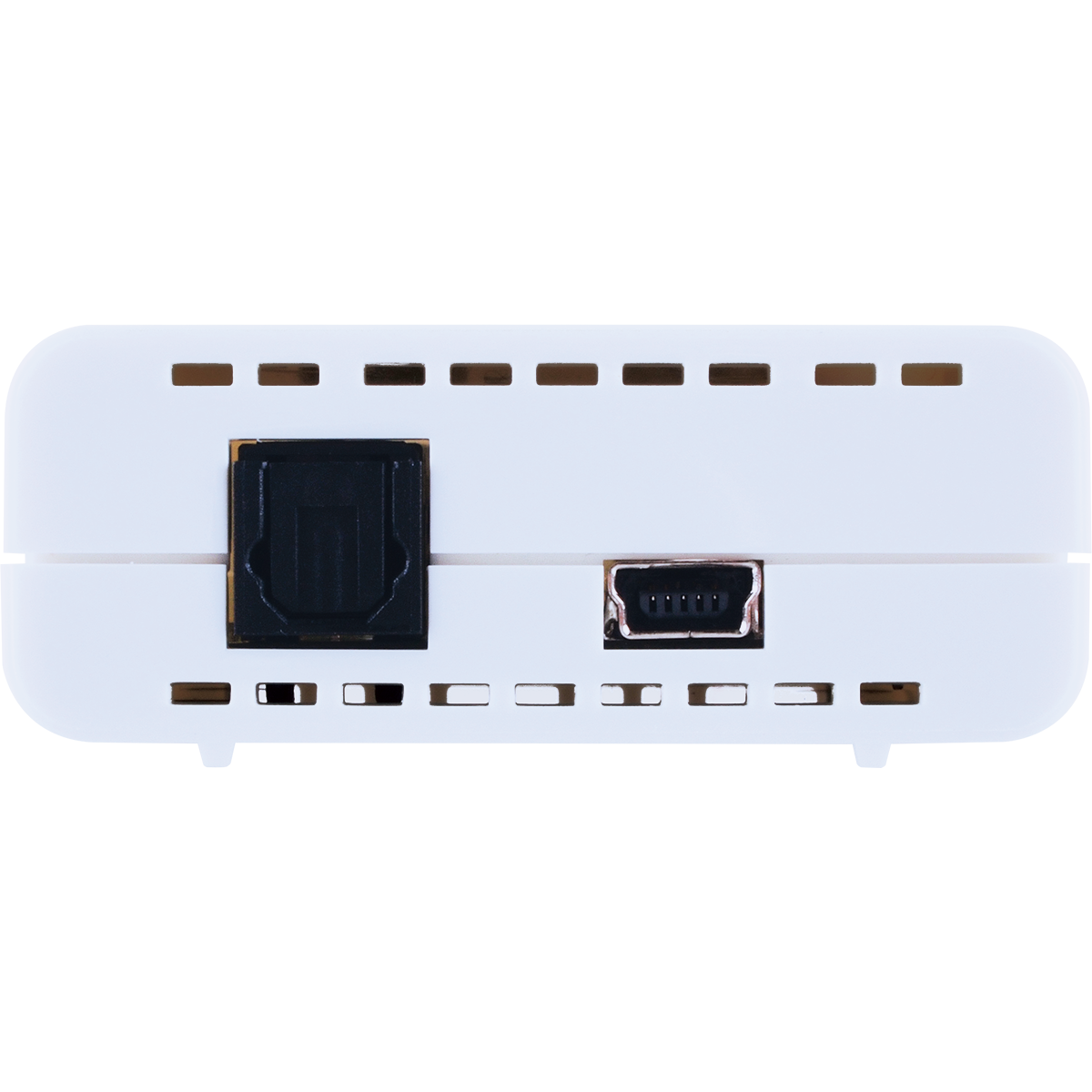

1 (Input), 1 (Output)
Dimensions
Width:
5.5cm
Depth:
8.05cm
Height:
2.2cm
Weight:
40g
