CS-HHP HDMI Surge Protection Tool
Please sign in so that we can notify you about a reply
The voltage spikes may happen sometimes which is not under our expectation. This compact surge protector designs to protect connected source and sink devices for blocking or shorting to ground any unforeseen voltage spikes. This surge protector is compact design and come with general HDMI input and output interface which can fit most of electronic devices covers from displays to DVD players in the market.
Features

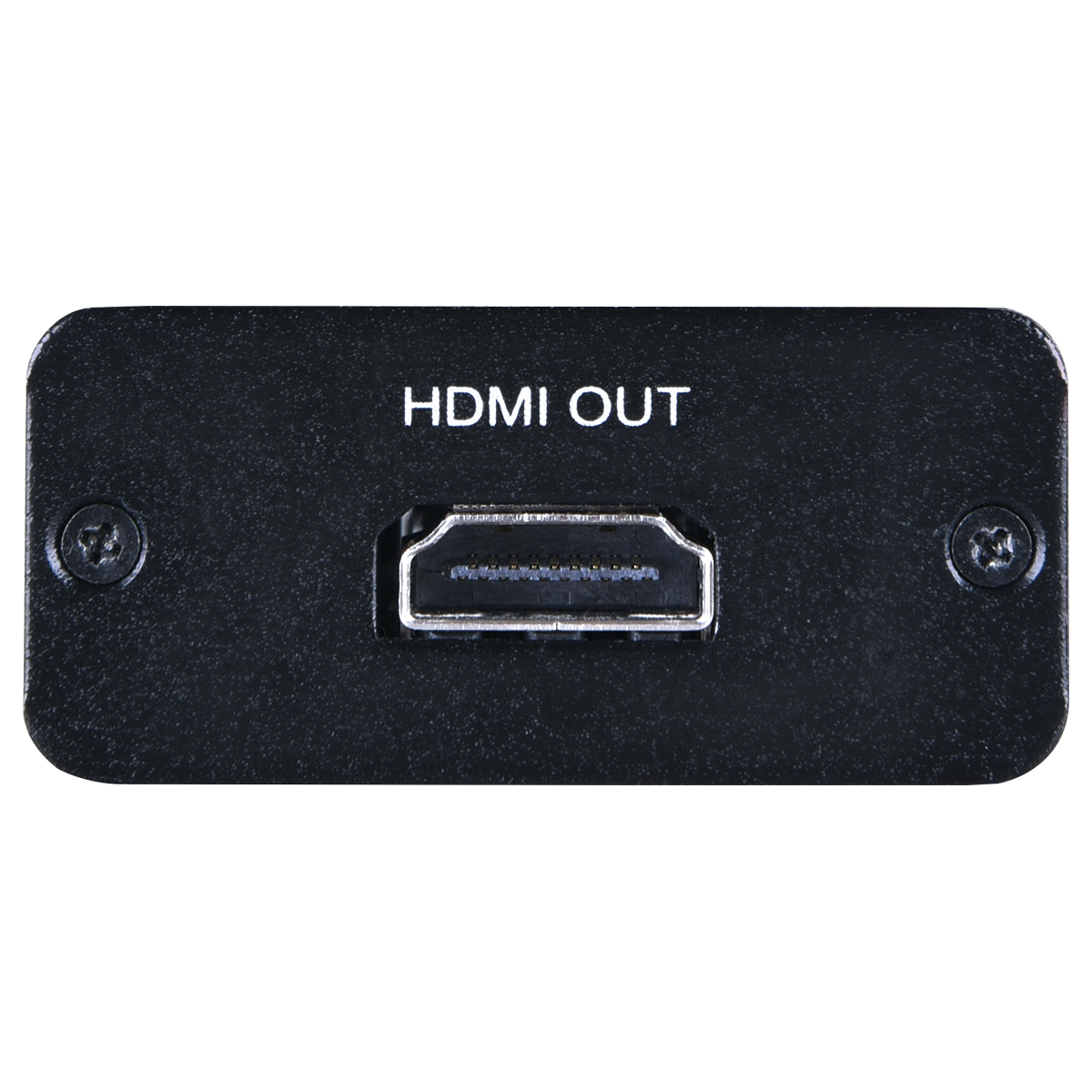

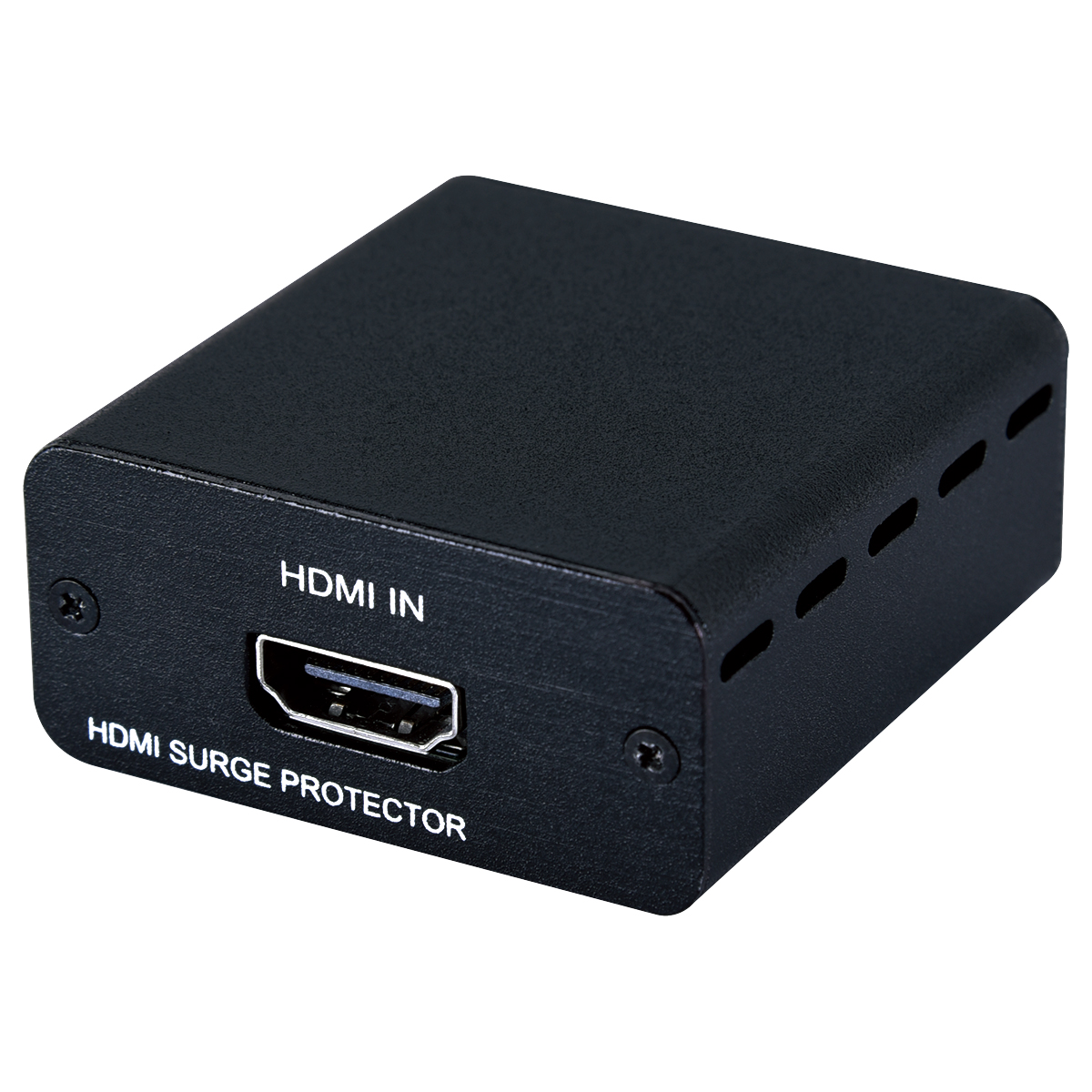

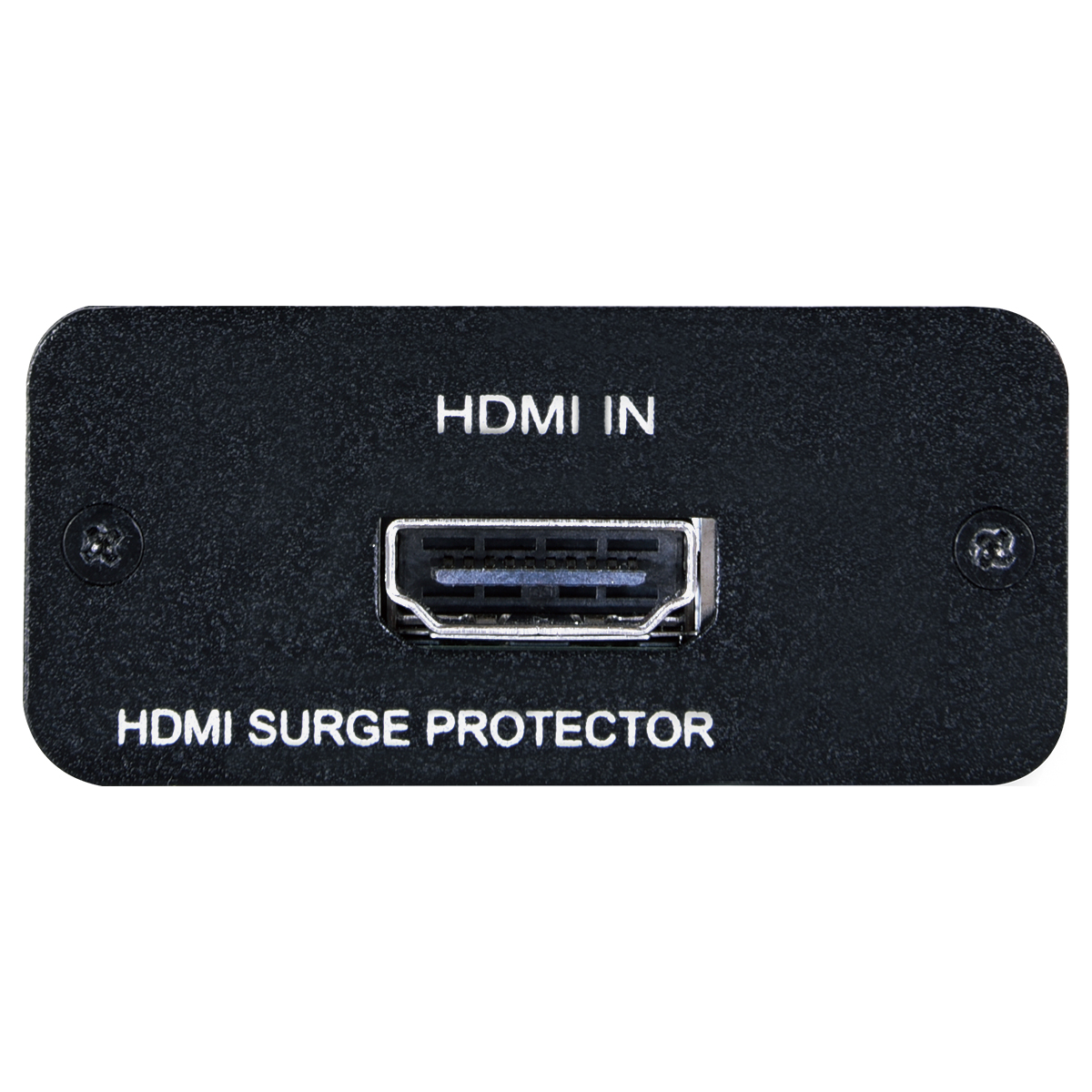

- Compact design with HDMI input and output interface to fit most of electronic devices
- Maximum supported pass through resolution up to 3840x2160@24/25 and 30
- 3D contents pass through supported
- LPCM, Dolby and DTS audio formats pass through supported
- CEC pass thought supported
- Easily installation only connects it between source and sink devices
- 5V overvoltage protection circuit design to prevent higher voltage damaged devices
Brand:
Cypress Technology
Product Type:
HDMI Surge Protector
Specifications
Colour:
Black
Special Features:
3D Contents Pass Through Supported, LPCM, Dolby and DTS Audio Formats Pass Through Supported, CEC Pass Though Supported
Chassis Material:
Metal
Includes:
Surge Protector Unit, Operation Manual
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096×2160pixels@60Hz
Maximum Output Resolution:
4096×2160pixels@60Hz
Output Signal Type:
4096x2160pixels@60Hz (YUV 4:2:0)
Inputs and Ports
Input Port Type:
HDMI
Output Port Type:
HDMI
Input Signal Type:
4096x2160p@60Hz YUV 4:2:0
Dimensions
Length:
2.3cm
Width:
5cm
Height:
5.2cm
Weight:
56g
