VA-102P12/220V 10-Output 12V DC Power Supply, 220V

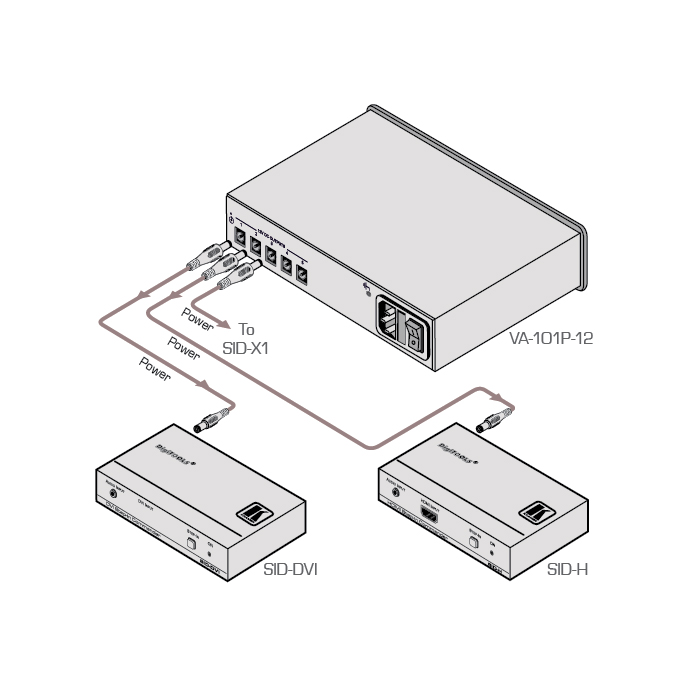

The VA−102P12 is a 10−output power supply that powers 12V DC powered devices. The VA−101P12 can supply a maximum of 1A of current to each of ten devices for a total of 10A. The power supply is especially useful in high−population installations for saving space and eliminating a large number of 12V DC power adapters. The MD model is suitable for medical applications.

Features

  • Space Saving - Replaces up to 10 individual 12V DC power supplies for Kramer TOOLS™, Kramer PicoTOOLS™, and Kramer 12V DC Desktop modelsOutputs - 10 12V DC outputs that supply 1A max. Current for each output for a total of 10A total
  • Indicator - Power LED
Brand:
Kramer
Part number:
60-80161320
Product Type:
DC Power Supply
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Version:
220V
Special Features:
Space Saving
For Use With:
Kramer TOOLS™, Kramer PicoTOOLS™, Kramer 12V DC Desktop Model
Status Indicator:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
10 DC to DC Cables, 95cm (3.1ft) Per Cable, AC Power Cord, RK-1 19in Rack Adapter
Power
Input Voltage:
100 to 240V AC
Output Voltage Rating:
12V DC
Current Rating:
2A
Dimensions
Length:
21.4cm
Width:
16.3cm
Height:
4.3cm
Weight:
1.2kg

VA-102P12/220V 1 (VA-102P12.pdf, 140 Kb) [Download]
