CSR-8PSU-24V 8-Port 24V DC Power Manager
Please sign in so that we can notify you about a reply

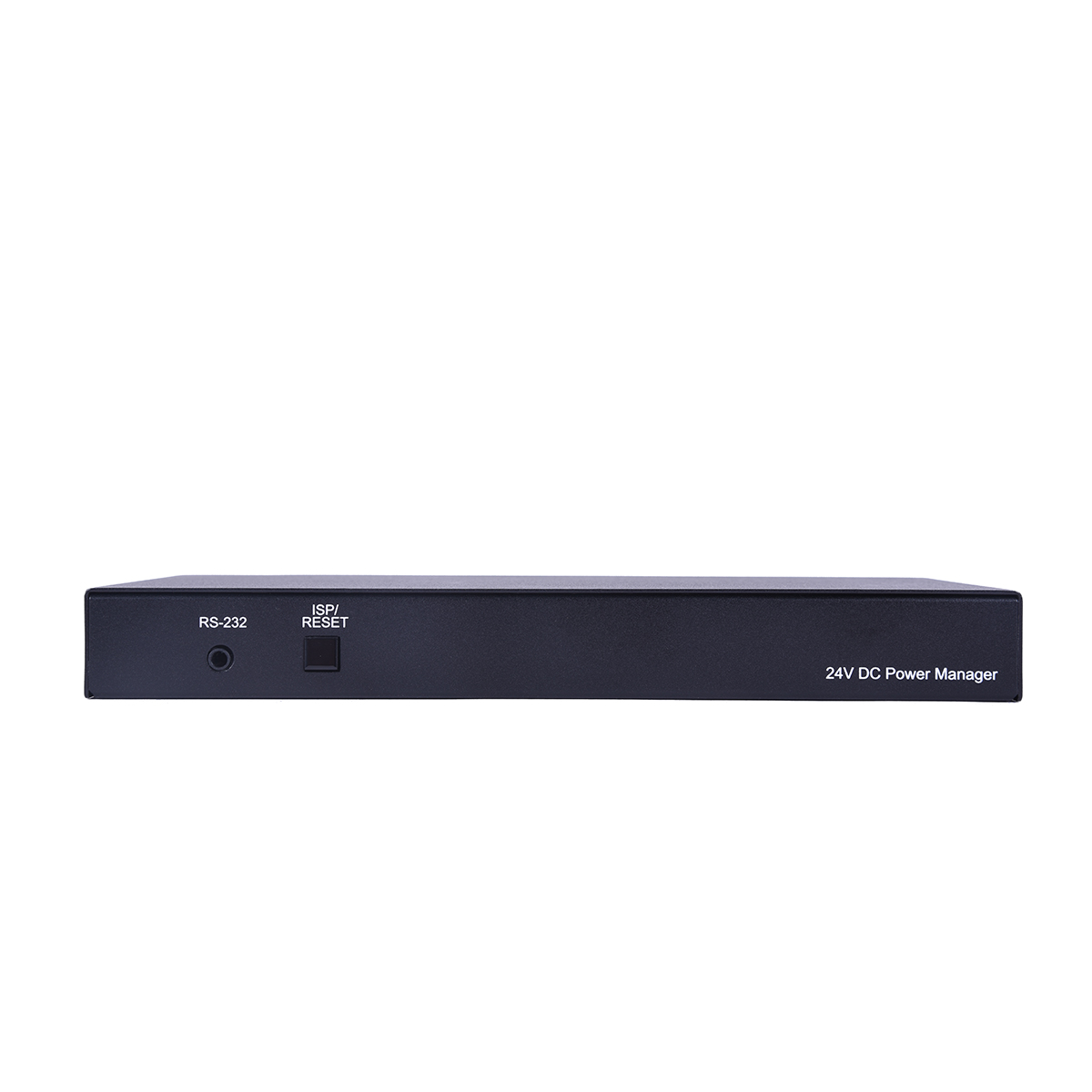

This 8-Port 24V DC Power Manager is a DC power splitter which can distribute up to 625 milliamps of 24 volt power to up to eight connected devices via 2-pin terminal block connections (115 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.
Features
- Power management system providing voltage-controlled current (24V) on each output
- Battery backed up clock for scheduling power events
- Integrated WebGUI for control and power analysis
- Unit’s overall maximum power consumption is only 150 watts

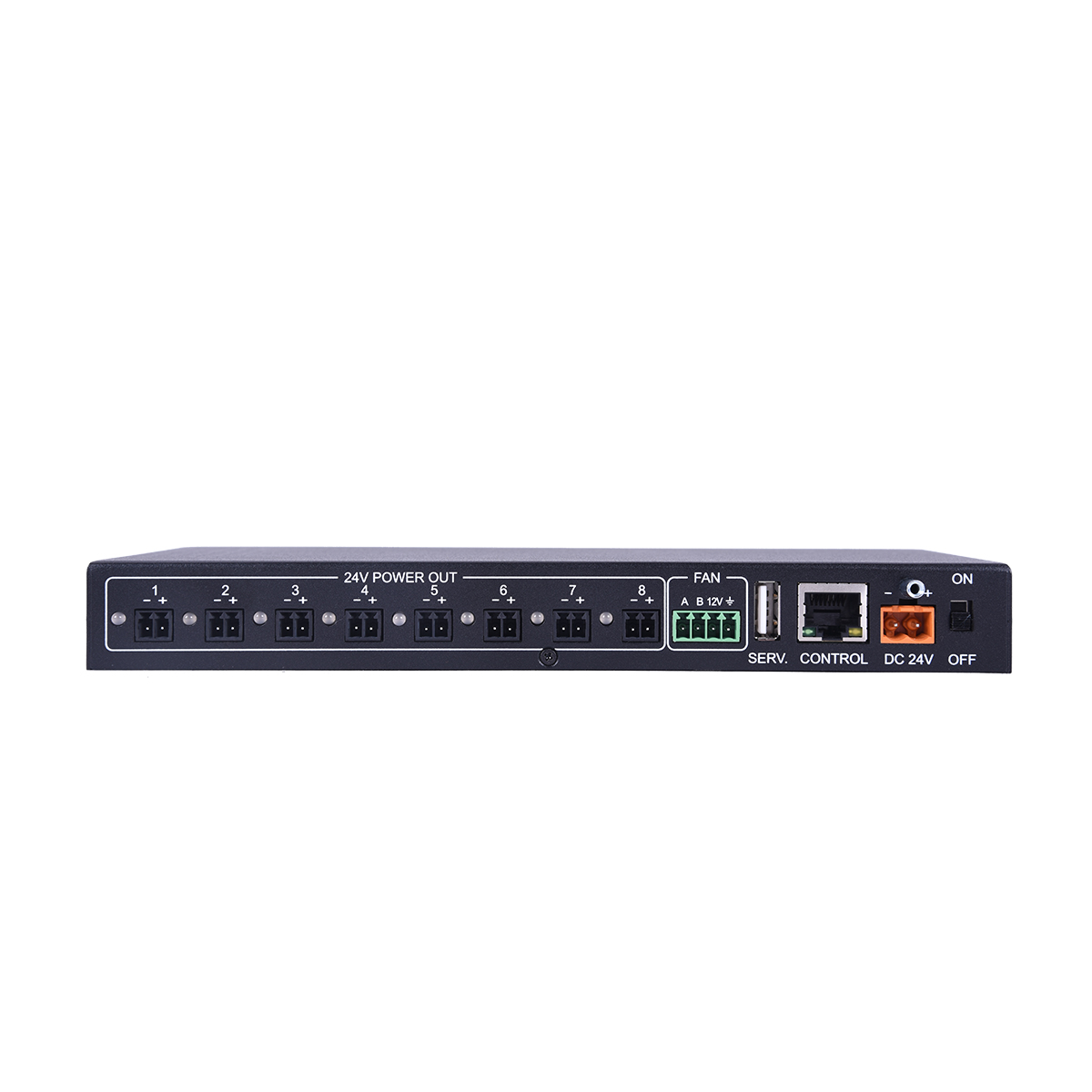

- Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors
- 115 watts of total power provided across all 8 outputs
- Dynamic loading function balances the power provided to each DC output
Brand:
Cypress Technology
Product Type:
DC Power Manager
Specifications
Terminal Type:
2-Pin
Mounting Type:
Rack Mount
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Battery Backed Up Clock For Scheduling Power Events
Power Rating:
150W
Case Material:
Aluminium
Status Indicator:
LED
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
8-Port 24V DC Power Manager, 24V/6.25A DC Power Adapter, Power Cord, (8) 2-pin Terminal Block to 24V DC Power Adapter Cable, Fan Power/Control Cable, 3.5mm to 9-pin D-sub Adapter Cable, Operation Manual
Power
Input Voltage:
24V
Output Voltage Rating:
24V
Current Rating:
6.25A
Dimensions
Length:
21.1cm
Width:
11.7cm
Height:
2.5cm
Weight:
285g
Other
Standards Met:
US/EU, CE/FCC/UL Certified
