CPOWER-80W 8-Way DC Power Manager
Please sign in so that we can notify you about a reply

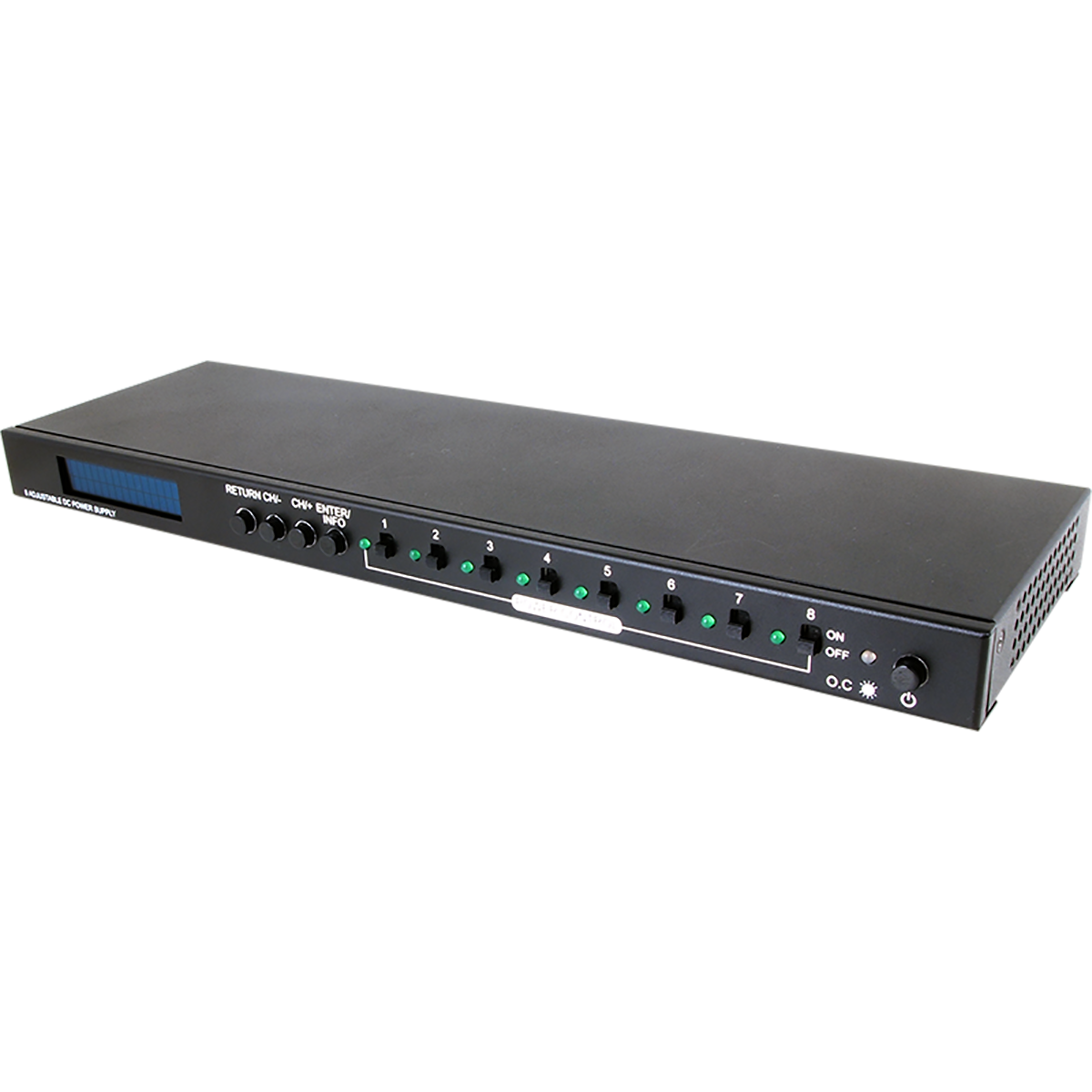

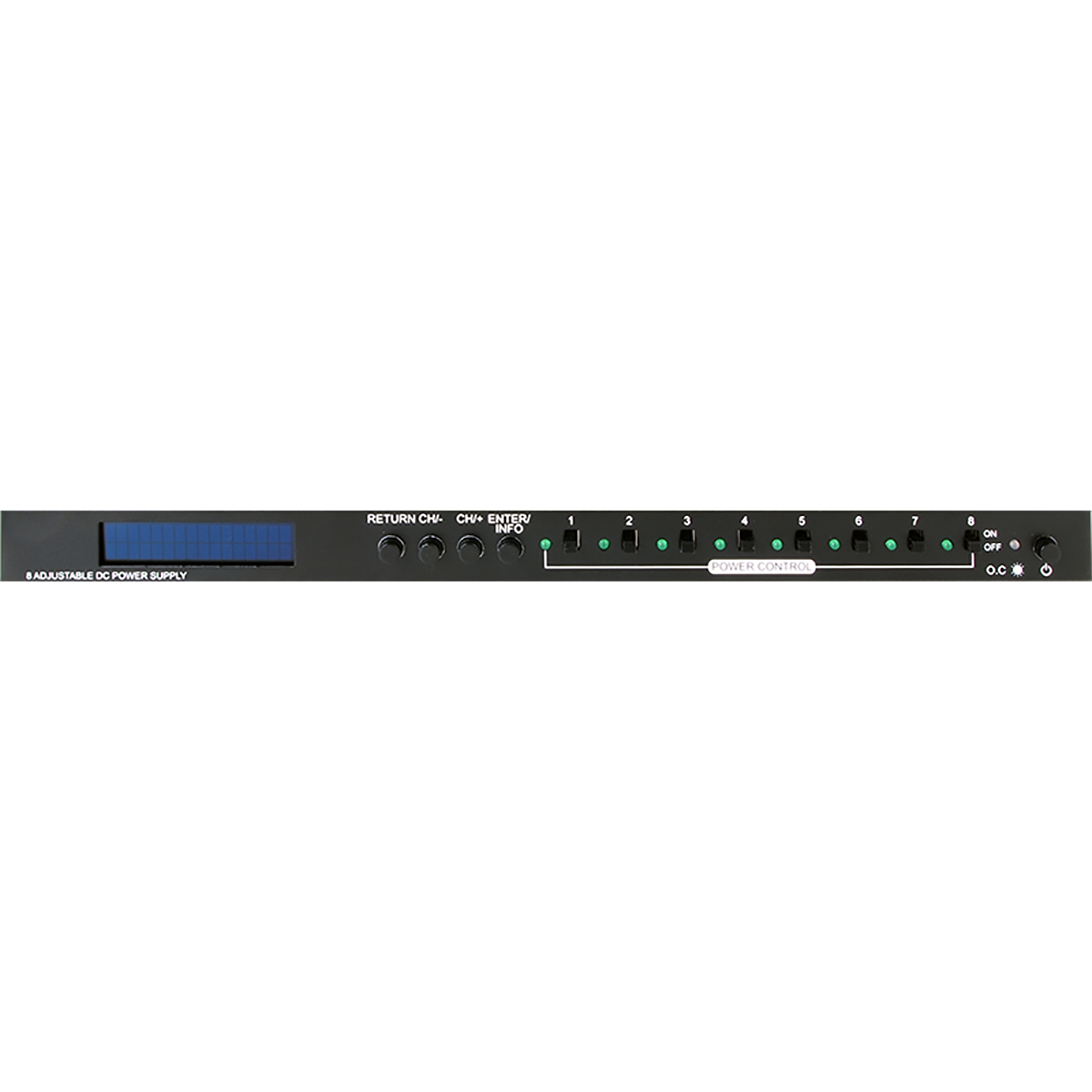

The 8 Adjustable DC Power Supply is an 8-way DC power splitter which can distribute electrical power up to 10.2Volt/3.2Amp each port with overall power consumption of 80 watts over Terminal Block(3.5mm, 2 poles). Ideal for professional applications, this device provides smart control over each individual port, with adjustable voltage and On-Off switching features both supported, through on-panel buttons or RS- 232 protocol. It also comes with an OLED display which can give the status of all ports or single port separately.
Features
- Power management system can provide voltage-controlled current on each port, with the result of real-time measurement shown on the OLED screen
- PC software application can collect data of voltage current variation with time, through RS-232 protocol, and create history table and chart
- Adjustable voltage and current to allow the maximum usage on each channel
- Support 12V/6.67A power input
- Support overall power consumption up to 80watts

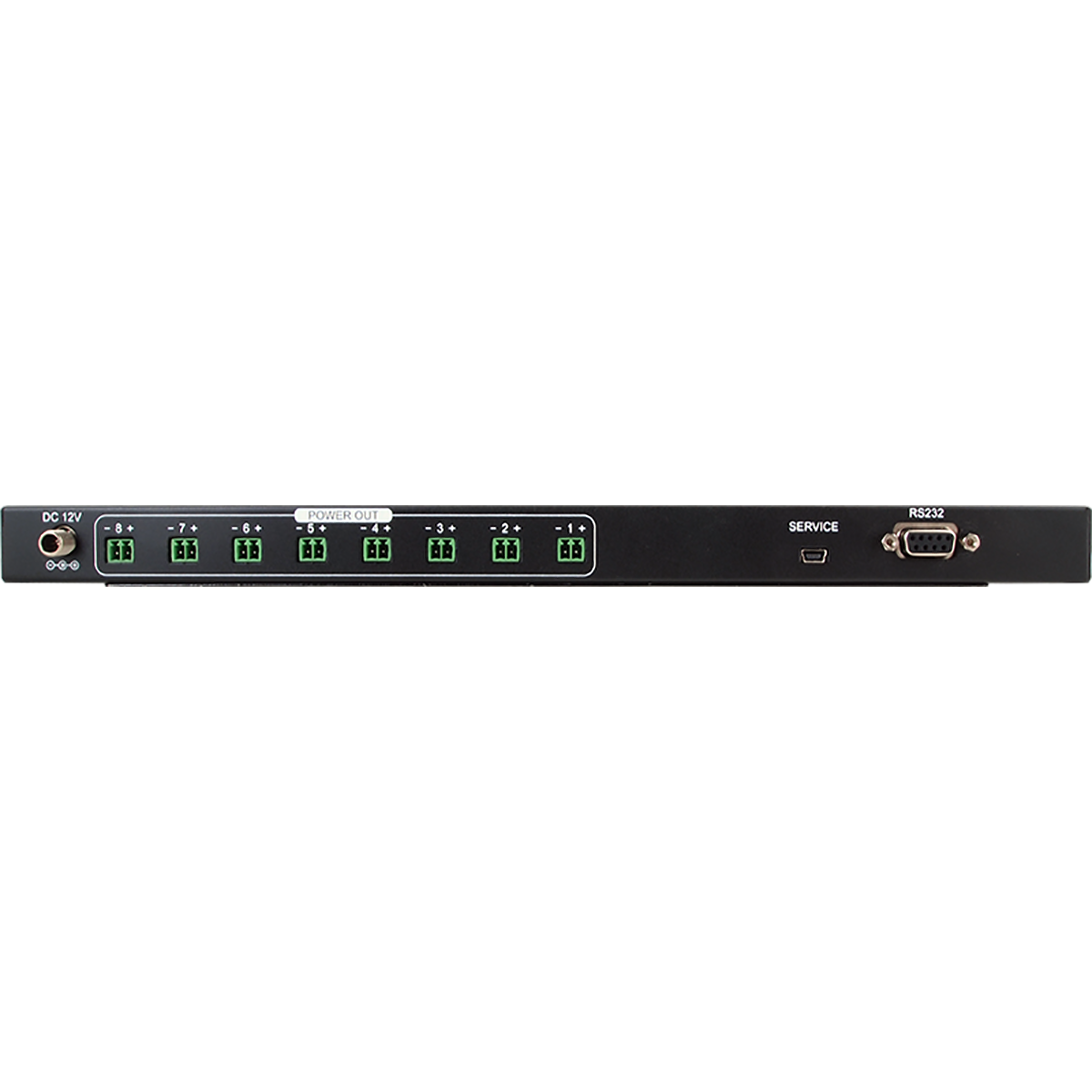

- Support 8 output ports power with professional pluggable 2-pole 3.5mm Terminal Block
Brand:
Cypress Technology
Product Type:
DC Power Supply
Specifications
Terminal Type:
2-Pole
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Adjustable Voltage and Current to Allow the Maximum Usage on each Channel
Power Rating:
80W
Case Material:
Metal
Status Indicator:
LED
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
8 Adjustable DC Power Supply, (8) Screw Type, 3.5mm, 2-Pole Terminal Black, (4) DC Lock Cable, (2) Rack Ear, 12V DC Power Supply Adaptor, Power Cord, Operation Manual
Power
Input Voltage:
12V
Output Voltage Rating:
3.2 to 10.2V
Current Rating:
0.10 to 3.20A
Dimensions
Length:
34cm
Width:
11.1cm
Height:
3cm
Weight:
935g
