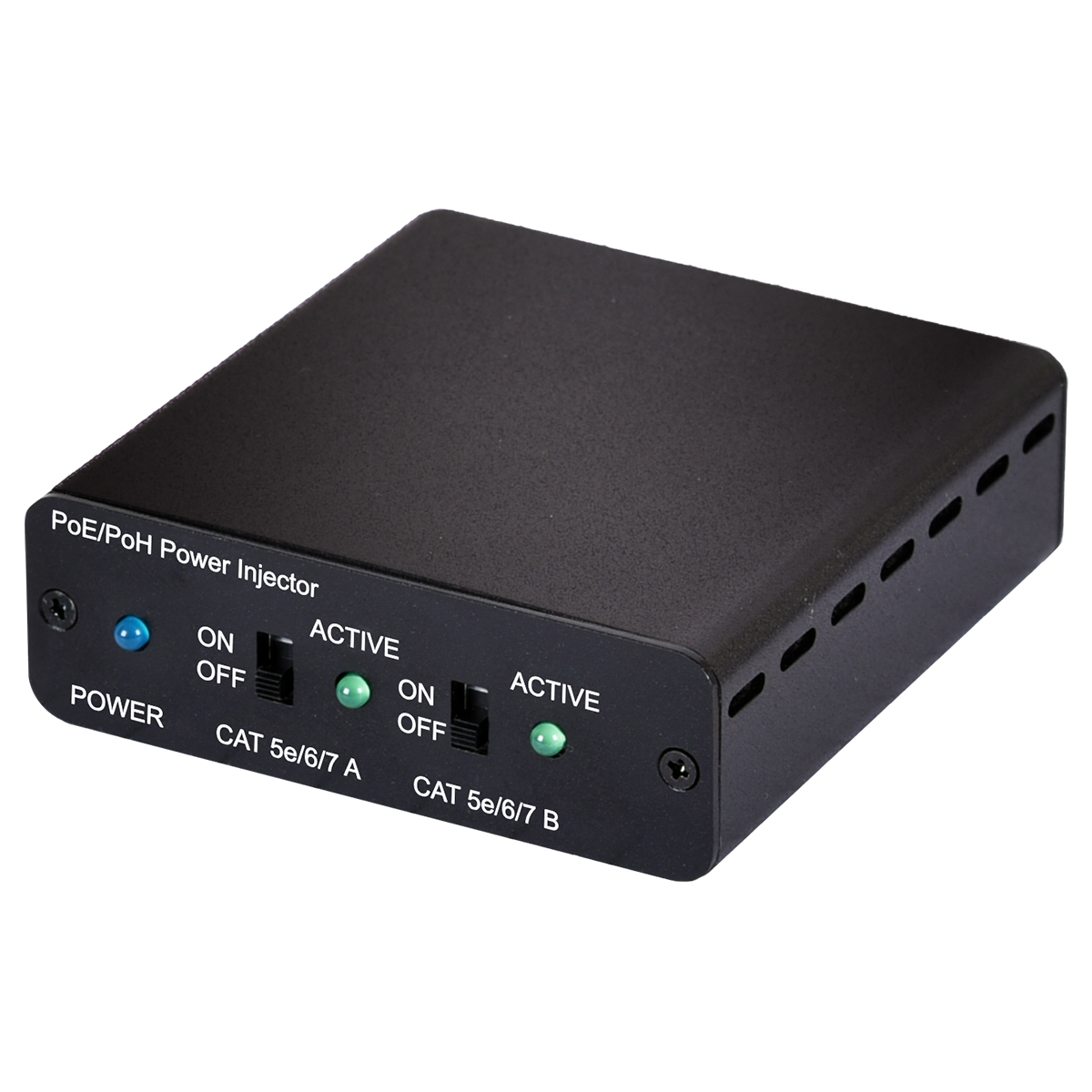

CH-POE PoE/PoH Power Injector

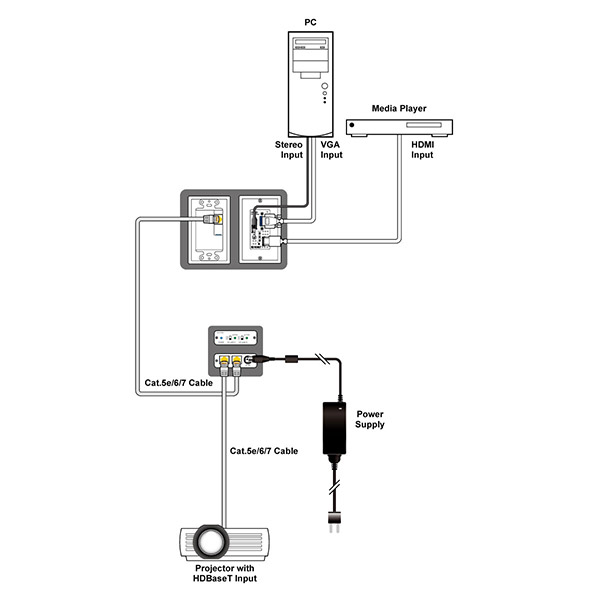

HDBaseT has a large share in the transmission market of uncompressed images. In consideration of simplified installation, we designed and manufactured CH-POE products, allowing SI to simplify installation complexity and improve the practicality of HDBaseT products. This Power Over Ethernet (PoE) injector is designed to easily deliver power to HDBaseT products through Ethernet cables using standard IEEE 802.3af Power over Ethernet. The CHPOE can send power only in the required direction by the two power switches, it also allows to route powers to up-stream and down-stream and can be operated simultaneously. The power supply is a cost saving equipment and can be conveniently installed anywhere when used with HDBsaeT-equipped products.

Features

  • Supports DC 48V to products using IEEE 802.3af Power over Ethernet
  • Supports power over Ethernet with a distance of up to 100 meters

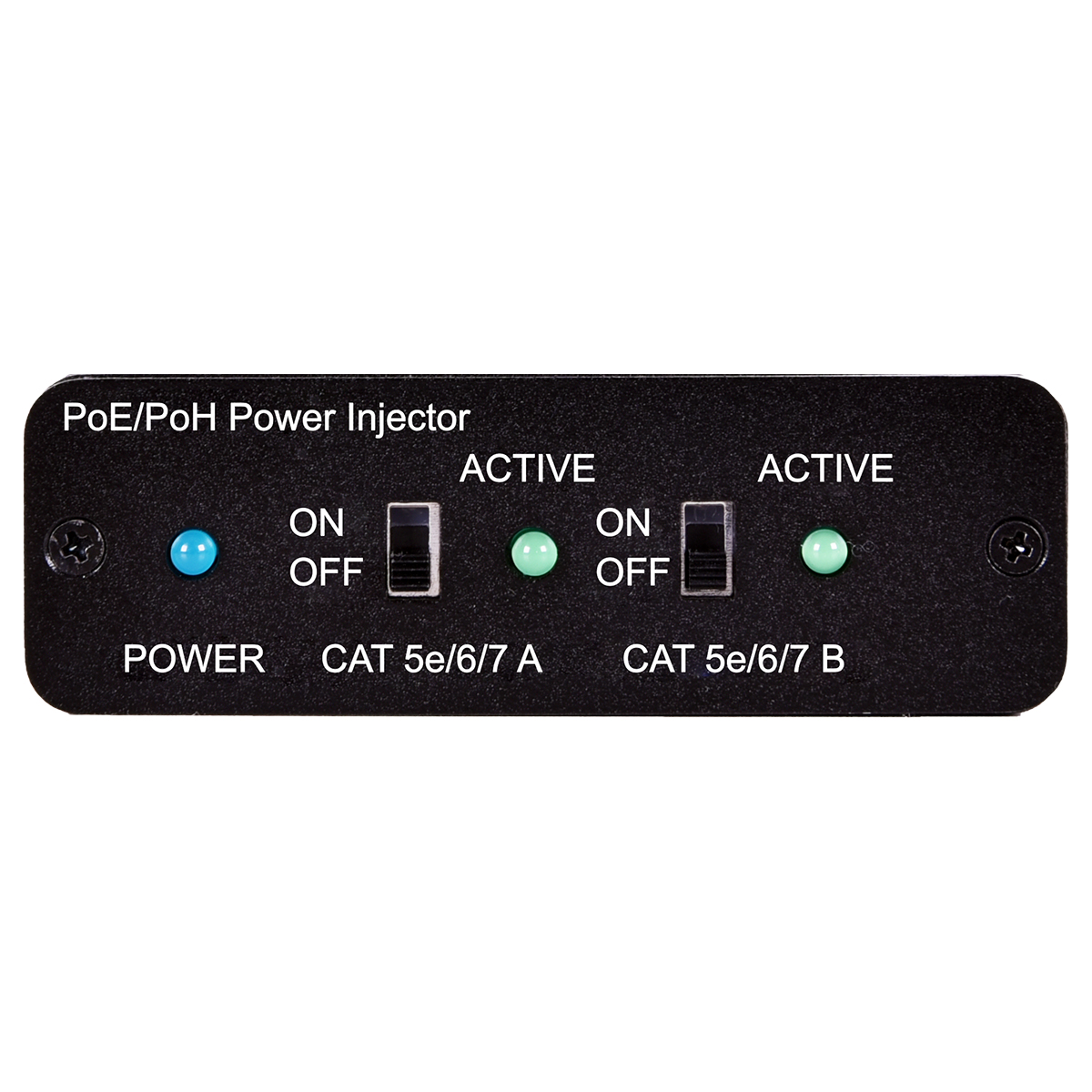

  • Features power switches to selectively the power direction
  • Supports interoperable powered devices (PD) and power sourcing equipment (PSE)
  • Supports 10.2 Gbp bandwidth, 4K ultra-high resolutions signals and multichannel audio formats
Brand:
Cypress Technology
Product Type:
PoE/PoH Power Injector
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Features Power Switches to Selectively the Power Direction
Power Rating:
10.6W
Case Material:
Metal
Status Indicator:
LED
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Over Ethernet/HDBaseT Power Injector, 48V/0.83A DC Power Supply
Power
Input Voltage:
48V
Current Rating:
0.83A
Dimensions
Length:
7.1cm
Width:
2.3cm
Height:
7.6cm
Weight:
130g
Other
Standards Met:
US/EU, CE/FCC/UL Certified
