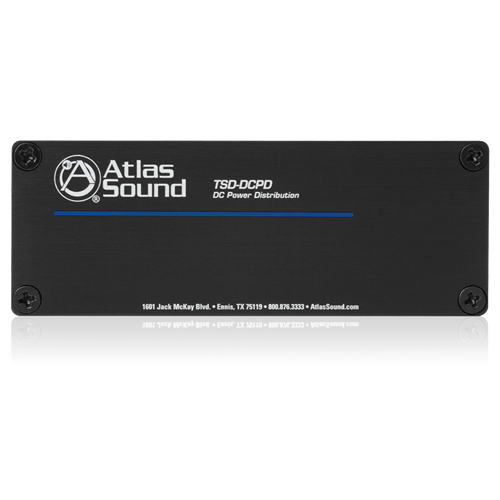

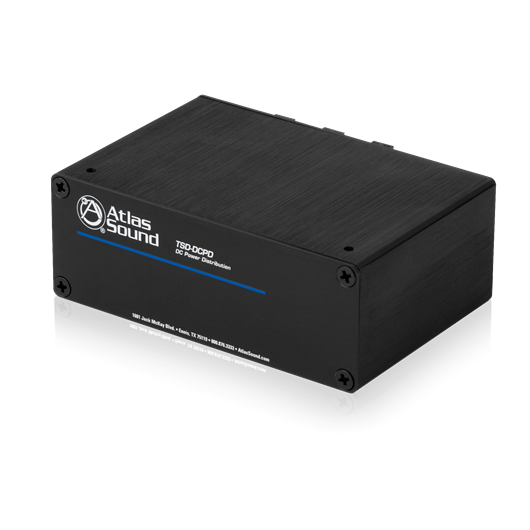

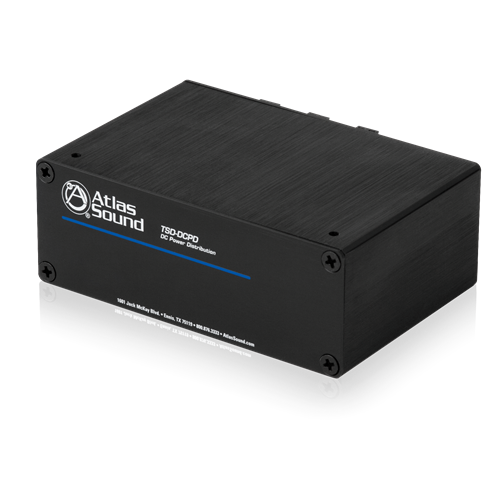

TSD-DCPD DC Power Distribution
Please sign in so that we can notify you about a reply
The TSD-DCPD is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. One 9-24V PSU input is distributed to 6 independent, isolated outputs. The compact TSD-DCPD will help remove rack clutter and free up power strip space.Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 20mA but the power requirements of attached TSDs must be accounted for when selecting the proper power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- Power Distribution for Up to 6 TSD's From a Single PSU

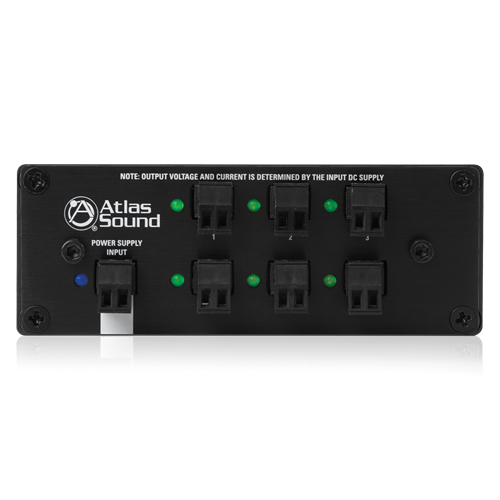

- 1 in 6 Out Configuration
- Six (6) Independent 9-24V Outputs
- DC Filtering and Isolation Per Channel
- 9 - 24VDC Input Voltage (Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required)
- Energy Efficient
Brand:
Atlas IED
Product Type:
DC Power Distribution
Specifications
Colour:
Black
Number of Channels:
Special Features:
DC Filtering and Isolation per Channel, Energy Efficient
Power
Current Rating:
5A
Dimensions
Width:
10.1cm
Depth:
6.3cm
Height:
3.8cm
Weight:
0.1kg
Other
Voltage Rating:
9 to 24V DC
