PUA 9516 Girder H-Beam Clamp 15 to 30cm, Black, For Mounting Display/Projector

Write a review
PUA 9516
Vogels
Log in to see price Add to wish list Add to Project

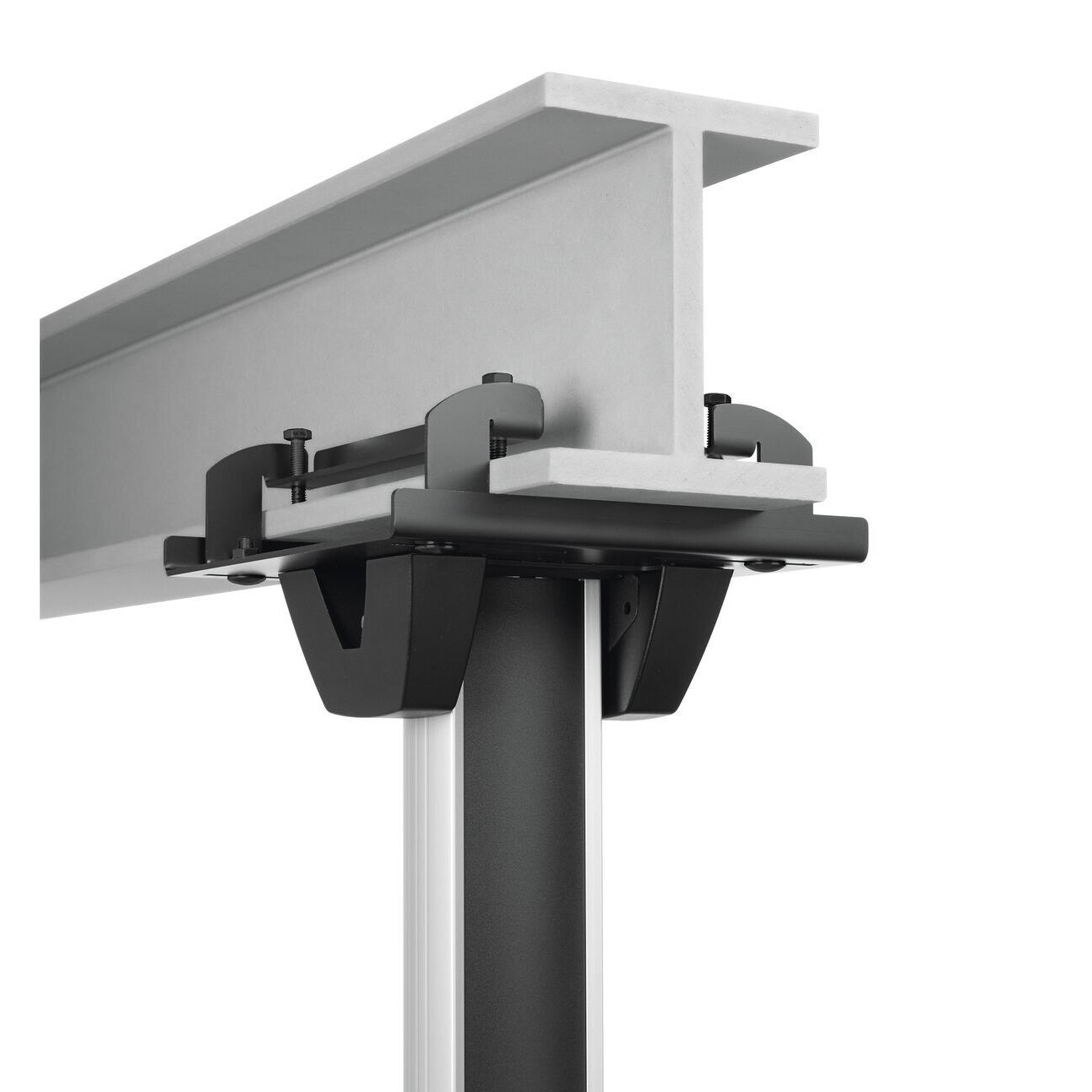

The PUA 9516 is part of the modular Vogel's display/projector mounting system which enables you to easily create your own (H-beam/girder) mounting solutions for medium- to large-sized displays. The PUA 9516 is designed for mounting flat displays and projectors on Girder/H-beams without drilling. The PUA 9516 is suitable for girders with a width between 140 mm and 310 mm. The PUA 9516 needs to be used in combination with the ceiling plates (PUC 1011/1035/1045/1060/1065/1070/1080) and the PUC 21xx, PUC 24xx, PUC 25xx poles.

Brand:
Vogels
Product Type:
15 to 30cm Girder H-Beam Clamp
Specifications
Colour:
Black
Series:
Connect-It
For Use With:
Mounting Display, Projector
Size:
40.2x25x7.2cm
Includes:
(4) DIN125-1A Plain Washer M8x16x1.6, (4) DIN933 Hexagon Head Bolt M8x20, (4) DIN933 Hexagon Head Bolt M8x30, (8) Hex Flange Nut with Serration M8, (4) DIN603 Carriage Bolt M8x20
Dimensions
Shipping Weight:
4.5kg (Carton)
Other
Standards Met:
TUV Certified

PUA 9516 1 (7295164_PUA9516_Datasheet_Document.pdf, 74 Kb) [Download]

PUA 9516 2 (7295164_PUA9516_Leaflet_Document_EN.pdf, 241 Kb) [Download]
