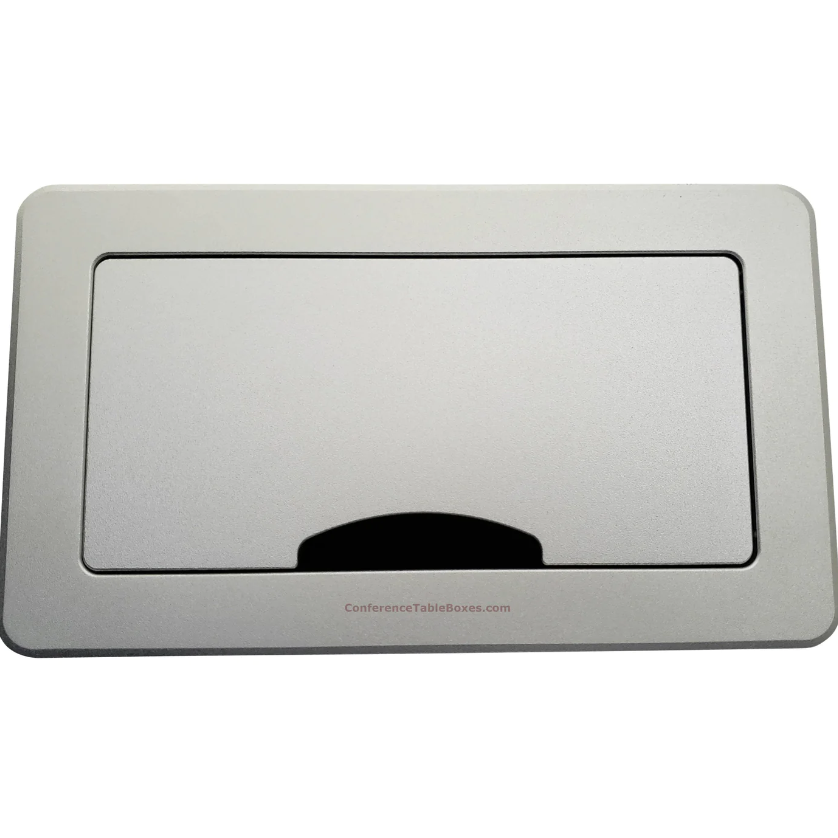

TBUS-6XL(BC) Table Top Modular Enclosure, Silver Sand Blasted Anodized Aluminium
Please sign in so that we can notify you about a reply
The TBUS−6xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
Features
- Inner Frame — 3 different "T6F" inner frame options are available.
- Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
- Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
- Retractable Lid — Manually slides into unit.
- Connector Depth — Adjustable.
- Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85").
- Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
- Weight — 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
Brand:
Kramer
Part number:
80-004299
Product Type:
Table Mount Modular Multi-Connection Solution
Specifications
Mounting Type:
Table Mount
Cut-Out Size:
22.5 x 12.3cm
Number of Connection Sockets:
8 Different Ts Single Power Socket
Colour:
Silver
Series:
TBUS
Lid Included (Yes/No):
Yes
Lid Type:
Retractable Lid
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Includes:
Power Cord, Table Clamp, Self Locking Tie, Template, Template Screw
Dimensions
Width:
22.1cm
Depth:
10.2cm
Height:
13cm
Weight:
1.35kg
