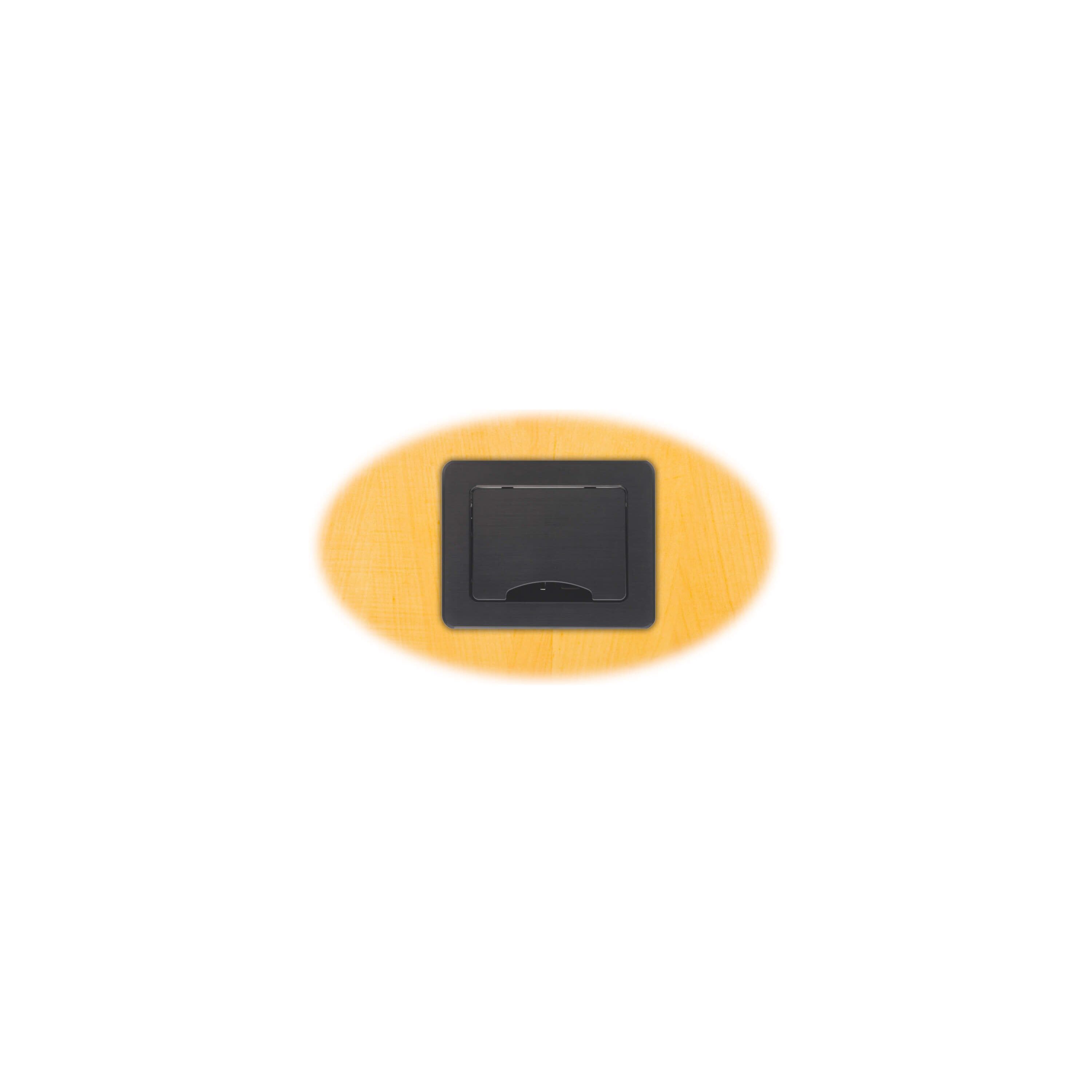

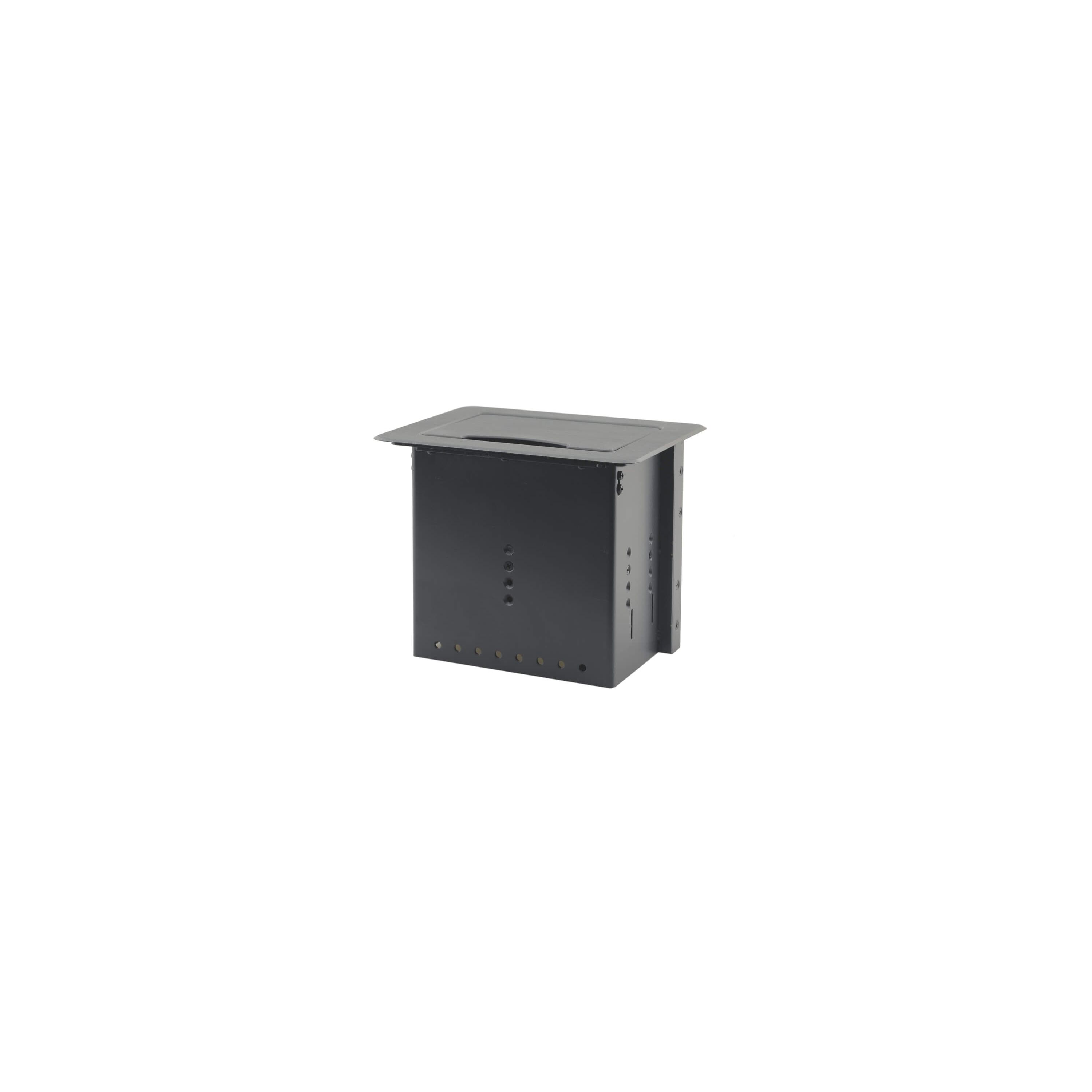

TBUS-5XL(B) Table Top Enclosure, Black Sand Blasted Anodized Aluminium, Manually Retracting Lid
Please sign in so that we can notify you about a reply
The TBUS−5xl is the enclosure of a new modular system with a retractable lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
Features
- Inner Frame - 2 different "T5F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cords - 8 different "C–AC" single power cords for each power socket.
- Optional Accessories - TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.

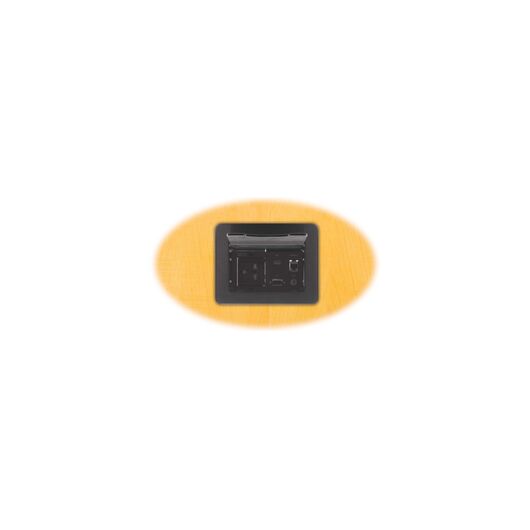

- Retractable Lid — Manually slides into unit.
- Connector Depth — Adjustable.
- Installation Requirement — Table cutout of 158mm x 123mm (6.23" x 4.85").
- Dimensions — Top plate: 17.6cm x 14.0.4cm (6.9" x 5.5") W, D; Enclosure: 15.4cm x 10.2cm x 13.0cm (6.1" x 4.0" x 5.1") W, D, H.
- Weight — 0.9kg (2.0lbs) approx.; table clamps: 0.25kg (0.55lbs) approx.
Brand:
Kramer
Part number:
80-003799
Specifications
Product Type:
Table Mount Modular Multi-Connection Solution
Mounting Type:
Table Mount
Cut-Out Size:
15.8 x 12.3cm
Number of Connection Sockets:
8 Different Ts Single Power Socket
Colour:
Black
Series:
TBUS
Lid Included (Yes/No):
Yes
Lid Type:
Retractable Lid
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Includes:
6xSelf-Locking Tie, Cut Out Template, Template Screw
Dimensions
Width:
15.4cm
Depth:
10.2cm
Height:
13cm
Weight:
0.9kg
