TBUS-203XL(B) Table Top Enclosure, Black Sand Blasted Anodized Aluminium, Removable Insert
Please sign in so that we can notify you about a reply

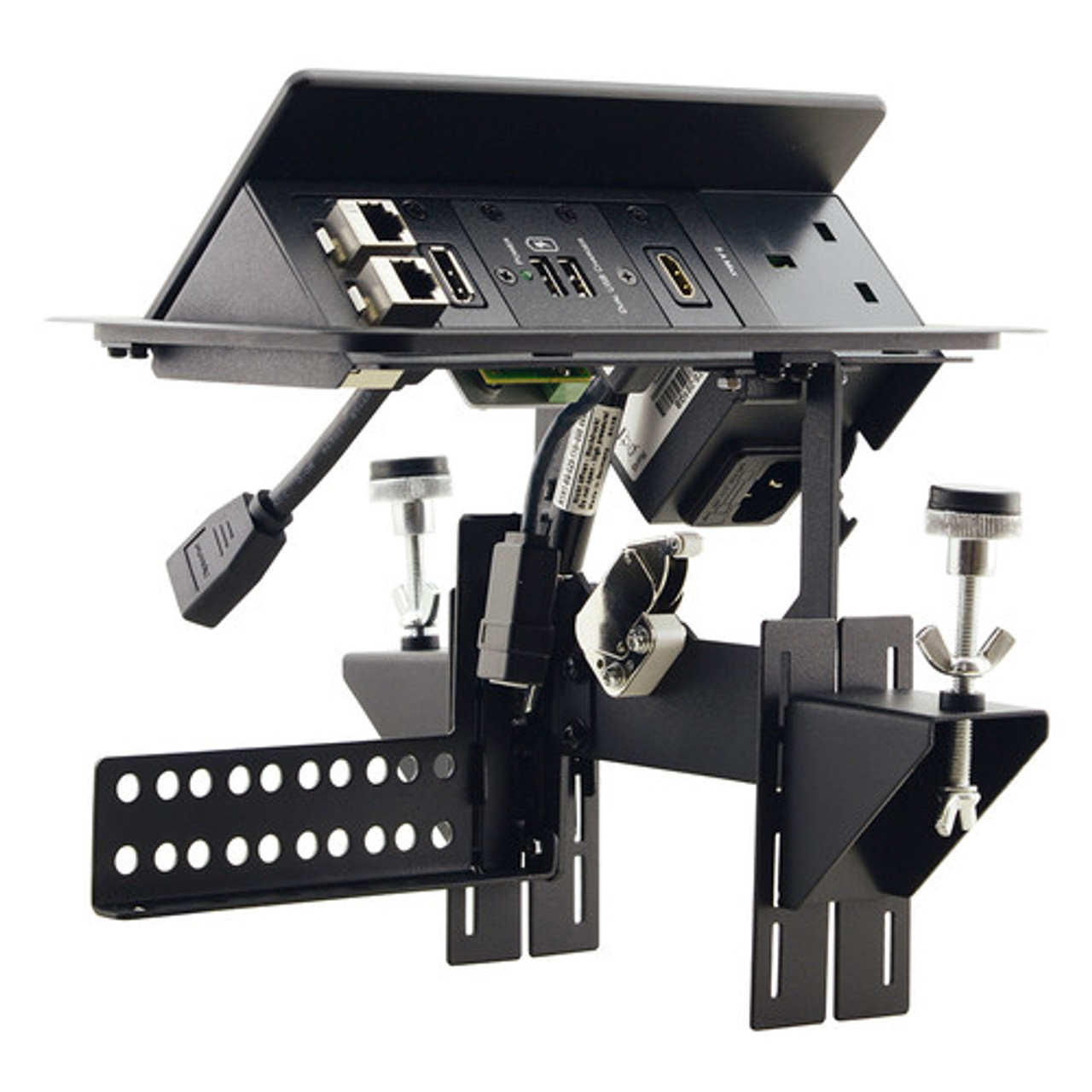

The TBUS−203xl is a furniture−mounted pop−up connection bus that is easily installed into a table or podium top. The TBUS−203xl interface enables you to connect any equipment to systems installed in a room via five single inserts or two dual inserts and one single insert.
Features
- Pneumatic Lift - Easy opening & closing by pressing down gently on the cover. When not in use, it lowers flush with the table.
- Power Input - Universal, USA, European and many other worldwide power sockets available..
- Elegant and Rugged Rectangular Design - The sturdy and attractive anodized aluminum enclosure provides maximum connectivity in the smallest possible footprint, and at the same time is cost effective and easy to install.
- Installation - Requires tools and expertise to cut a 21.2cm x 12.2cm (8.4” x 4.8”) rectangular hole in the surface of the furniture. Maximum table thickness is 7.6cm (3").
- Note - The power socket module is not included. Purchase the country–specific module separately.
Brand:
Kramer
Part number:
91-011999
Product Type:
Pop-Up Table Mount Multi-Connection Solution
Specifications
Mounting Type:
Table Mount
Cut-Out Size:
21.2x12.2cm
Colour:
Black
Series:
TBUS
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Humidity:
10 to 90%
Operating Temperature Range:
+5 to +45°C
Includes:
Cut Out Metal Template
Storage Temperature Range:
-20 to +70°C
Storage Humidity Range:
5 to 95%
Dimensions
Width:
46.5cm
Depth:
22.6cm
Height:
17.05cm
Weight:
2kg
