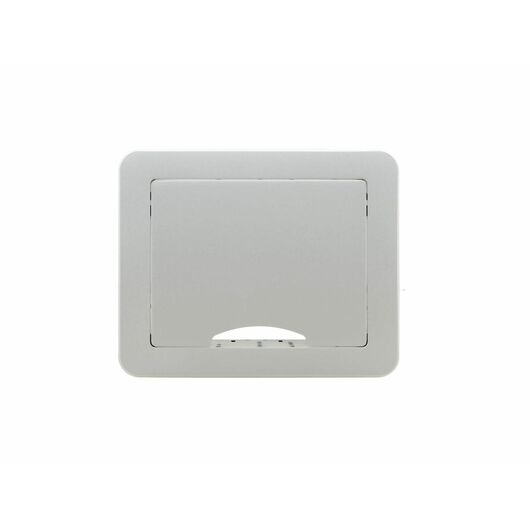

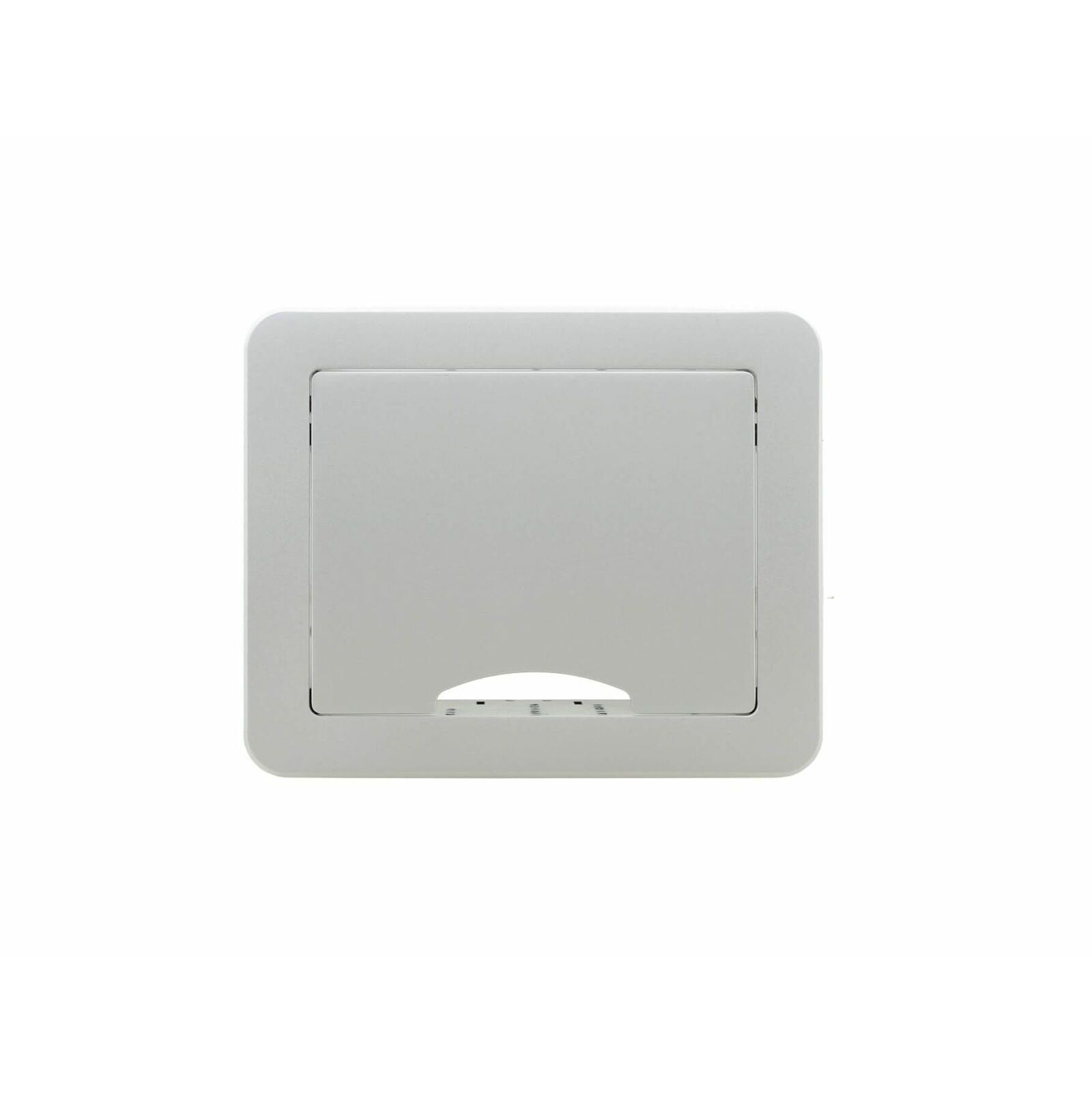

TBUS-1N(BC) Table Top Enclosure, Silver Sand Blasted Anodized Aluminium, Retractable Lid
Please sign in so that we can notify you about a reply
TBUS−1N is a modular furniture−mounted connection bus enclosure that easily installs into a table or podium top. Once assembled, TBUS−1N enables you to connect any equipment to the room’s presentation system via cable access or passive interfaces. When the cables are not in use, they can be stored inside the unit, covered by the lid and out of sight. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
Features
- Modular Design - Tailors to your requirements.
- Cover - Black sand–blast or silver sand–blast anodized aluminum lid with a special opening for cable pass–through. (Note, other customized colors can be ordered).
- Height Adjustment - Use screw holes to set the inner frame (ordered separately) to the desired heigh.
- Power Sockets - Single or dual power socket openings are suitable for any of the following power sockets: USA, UK, Switzerland, Germany (the Europlug), Belgium–France, Italy, Australia, Israel, Brazil, South Africa or “Universal” for use anywhere.
- Cutout Dimensions - 195 +2mm x 173 +2mm (7.68 +0.08in x 6.82 +0.08in).
Brand:
Kramer
Part number:
80-000244
Specifications
Product Type:
Table Mount Modular Multi-Connection Solution
Mounting Type:
Table Mount
Number of Connection Sockets:
Single and Dual Power Socket
Colour:
Silver
Series:
TBUS
Lid Included (Yes/No):
Yes
Lid Type:
Tilt-Up Lid
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Humidity:
10 to 90%
Operating Temperature Range:
+5 to +45°C
Includes:
6xSelf-Locking Tie, Metal Template
Storage Temperature Range:
-40 to +70°C
Storage Humidity Range:
5 to 95%
Dimensions
Width:
21.4cm
Depth:
19.2cm
Height:
13.6cm
Weight:
2kg
