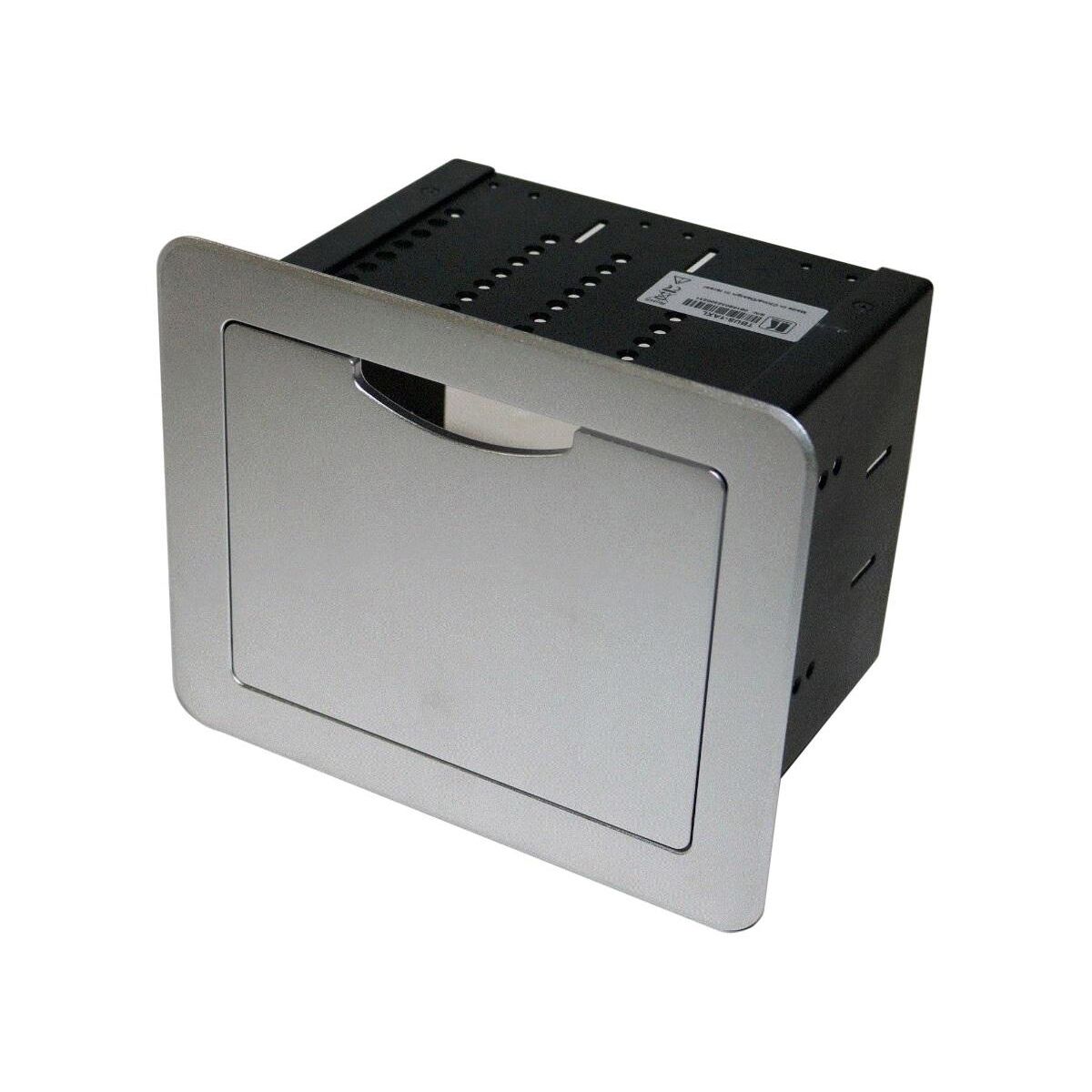

TBUS-1AXL(BA) Table Top Enclosure, Silver Brushed Anodized Aluminium
Please sign in so that we can notify you about a reply
The TBUS−1Axl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
Features
- Cover - Manually opens & closes.
- Inner Frame - 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets - 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.
- Power Cord - 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
- Optional Accessories - TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
- UL and CE Qualified.
- Connector Depth - Adjustable.
- Installation Requirement - Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).
- Dimensions - 20.5cm x 17cm x 13.2cm (8.1" x 6.7" x 5.2") W, D, H.
- Weight - TBUS–1Axl: 1.5kg (3.3lbs) approx.;table clamps: 0.26kg (0.57lbs);metal template: 0.125kg (0.28lbs).
Brand:
Kramer
Part number:
80-000196
Product Type:
Table Mount Modular Multi-Connection Solution
Specifications
Mounting Type:
Table Mount
Cut-Out Size:
19.1x15.2cm
Number of Connection Sockets:
4 Power Socket, 6 Cable Pass-Through
Colour:
Silver Brushed
Series:
TBUS
Lid Included (Yes/No):
Yes
Lid Type:
Tilt-Up Lid
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Humidity:
10 to 90%
Operating Temperature Range:
+5 to +45°C
Includes:
6xSelf-Locking Tie
Storage Temperature Range:
-20 to +70°C
Storage Humidity Range:
5 to 95%
Dimensions
Width:
20.5cm
Depth:
17cm
Height:
13.2cm
Weight:
1.5kg
