TBUS-10XL(B) Table Top Enclosure, Aluminium, Black Sand
Please sign in so that we can notify you about a reply

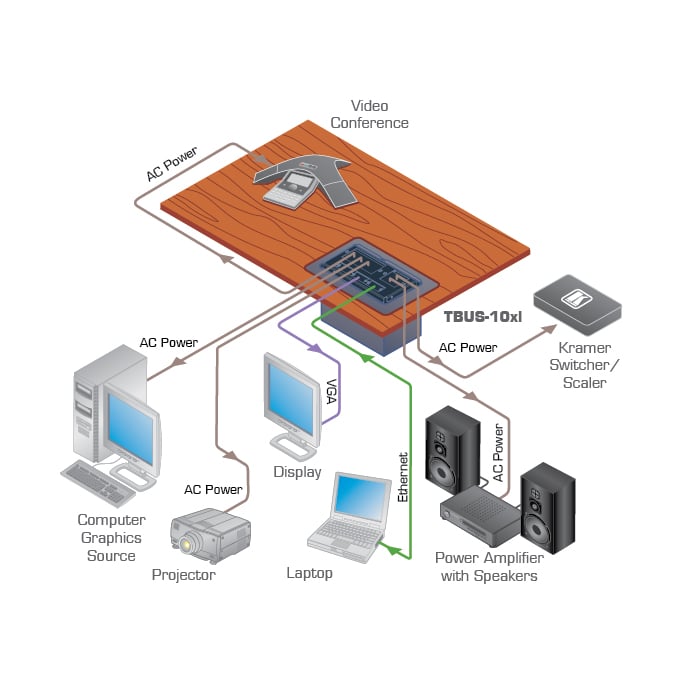

The TBUS−10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, inner frame, power socket(s), power cord & inserts are purchased separately.
Features
- Cover — Manually opens & closes.
- Inner Frames — T10F–22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID–X1N; T10F–33 contains 3 power sockets and 3 inserts.
- Power Sockets — 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
- Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
- Connector Depth — Adjustable.
- Installation Requirement — Table cutout of 245mm x 154mm (9.65" x 6.07").
- Dimensions — Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.
- Weight — TBUS–10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
- Accessories — TBUS clamps (part of the TBUS enclosure), cut–out template, template screws, self–locking ties.
- Options — Inner frames, passive wall plates and interfaces, power socket kits, power cord, T–2INSERT kit, T–RC–8IR kit, T–RC–76 kit, T–RC–78 kit, Kramer K–Able Box (furniture–mounted cable extension).
Brand:
Kramer
Part number:
91-000037
Product Type:
Table Mount Modular Multi-Connection Solution
Specifications
Mounting Type:
Table Mount
Cut-Out Size:
24.5 x 15.4cm
Number of Connection Sockets:
Single and 10 Dual Power Socket
Colour:
Black Sand
Series:
TBUS
Lid Included (Yes/No):
Yes
Lid Type:
Retractable Lid
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Humidity:
10 to 90%
Includes:
TBUS Clamp, Cut-Out Template, Template Screw, Self-Locking Tie
Storage Temperature Range:
-20 to +70°C
Storage Humidity Range:
5 to 95%
Dimensions
Width:
26cm
Depth:
28.2cm
Height:
17.3cm
Weight:
1.35kg
