2F21F1B7 Port El Series Power Module with 1xSchuko Socket/1xUSB (A+C) Charger/1xRJ45/Cat6A/1xHDMI/White Fascia
Please sign in so that we can notify you about a reply

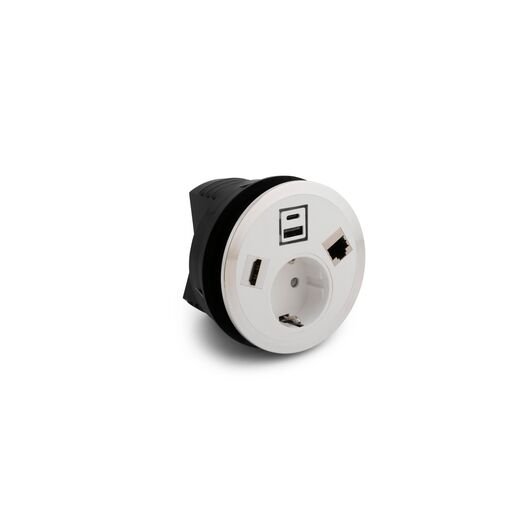

2F21F1B7 – built-in socket of the Port El series for installation in a table with 1xUSB connectors, type A; 1xUSB, type C; 1xHDMI and 1xRJ45 for Cat6A twisted pair. Tabletop thickness: 15–45 mm. Mounting hole diameter: 80 mm. Overall dimensions (⌀xH): 96x77 mm. Connector for GST18i3 power cable (female). White color. The Port El is the in-desk grommet power module designed to fit into a standard 80mm porthole in the desk. With a variety of available configurations, it is an excellent fit for any office, home, leisure, or educational environment as it is easily installed in the desk, sofa lounge or table. Power, design, and connectivity right where you need it.
Features
- Choice of configurations available with one socket, one USB A+C fast charging port, and media connections
- G type sockets are individually fused with 3.15A or 5A fuse in compliance with BS6396 which is related to electrical systems in furniture
- Designed to fit desk thickness between 15 and 45mm
- Elegant aluminium ring enables quick installation and fitting with no effort
- Modular parts available in white, grey and black
- Certified with the BSI Kitemark KM 686563 (UK), IEC 60884-1:2002 + A1:2006 and IEC 60884-2-7:2011 + A1:2013 (Europe)
Brand:
ABL
Specifications
Number of IMP Slots:
1
Number of Modules:
3
Type of Power Socket:
Schuko
USB Power Charger:
A+C PD35W
Product Type:
Power Module
Mounting Type:
In desk
Color:
White
Colour:
White (Fascia)
Number of Power Sockets:
1
Series:
Port EL
Includes:
1xSchuko Socket, 1xUSB (A+C) Charger, 1xRJ45, Cat6A, 1xHDMI, White Fascia
Dimensions
Width:
9.6cm
Height:
7.3cm
Other
Standards Met:
BSI Kitemark KM 686563, IEC 60884-1:2002+A1:2006, IEC 60884-2-7:2011+A1:2013
