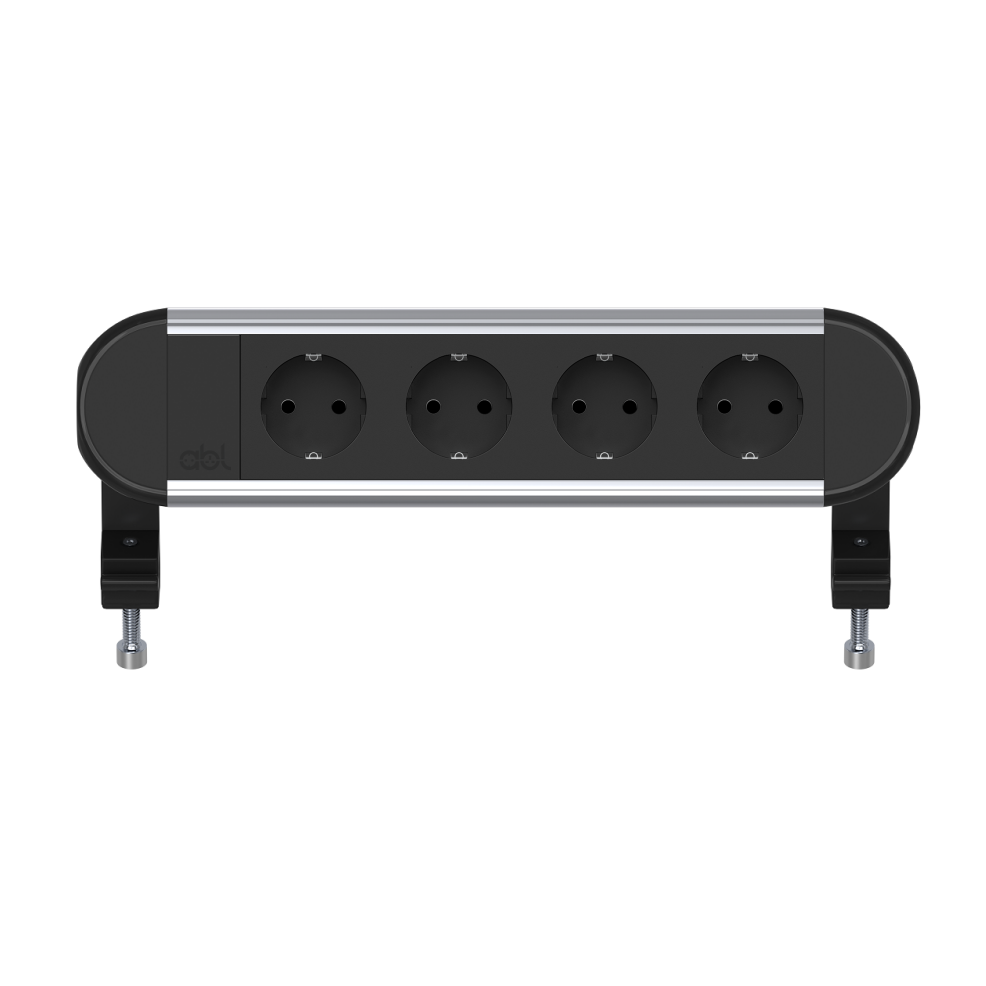

2A00F4A0 Chroma Series Power Module with 4xSchuko Socket/Black Fascia/End Cap
Please sign in so that we can notify you about a reply
Chroma is the on-desk power module that provides power when you need it via its selection of USB Type A+C for fast charging (35W), and power socket ports. The Chroma is supplied with data and media connections which allows the end-user to connect various devices quickly and efficiently. This popular on-desk office power solution from ABL is certified with the BSI Kitemark KM 686563. It is manufactured according to the international standards IEC 60884-1:2002 + A1:2006 and IEC 60884-2-7:2011 + A1:2013 related to plugs and socket-outlets for household and similar purposes.
Features
- Available in up to six sockets, USB A+C port for fast charging, and media connections
- G type sockets are individually fused with 3.15A or 5A fuse in compliance with BS6396 which is related to electrical systems in furniture
- The Chroma power module uses universal clamps that can be easily installed either on top of the desk or under the desk
- Designed to fit desk thickness between 10 and 34mm
- All standard options come with 0.5m drop lead to 3 Pole Connector
- The module is available in black or white with silver, black or white aluminium profile
- Certified with the BSI Kitemark KM 686563 (UK), IEC 60884-1:2002 + A1:2006 and IEC 60884-2-7:2011 + A1:2013 (Europe)
Brand:
ABL
Product Type:
Power Module
Specifications
Number of Modules:
4
Type of Power Socket:
Schuko
Mounting Type:
On desk
Color:
Black
Colour:
Black (Fascia/End Cap), Silver (Body)
Number of Power Sockets:
4
Series:
Chroma
Includes:
4xSchuko Socket, Black Fascia, End Cap
Dimensions
Width:
30.6cm
Depth:
6.2cm
Height:
10cm
Other
Standards Met:
IEC 60884-1:2002+A1:2006+A2:2013
