PPL 2035-120V Projector Lift System, Silver, 13 to 48x56.7x55.4cm

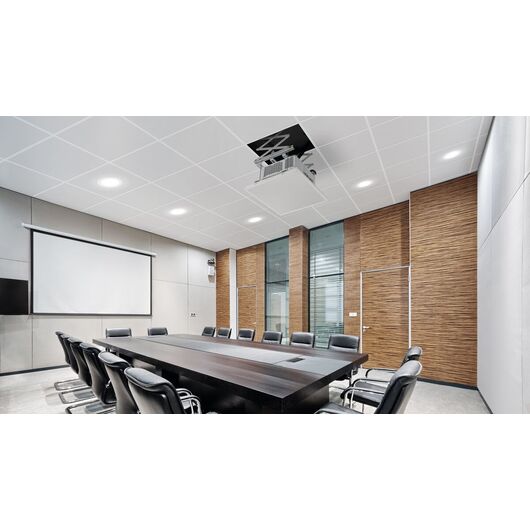

The PPL 2035-120V projector lift system is the perfect solution for the integration of a projector into a ceiling where an aesthetical solution is required. Not only is the projector neatly hidden, it is also theft delaying. The lifts runs silently and offers two adjustable positions: top and show.

This lift has been developed to be installed inside a false ceiling where very few space is available. Inside the false ceiling only a minimum height of 13 cm is required to install lift and projector. The motor allows a drop of 35 cm and the maximum weight capacity of the projector lift is 15 kg.

The PPL 2035-120V is supplied with extendable side brackets in order to position the ceiling tile exactly in the ceiling tile grid. The lift is equipped with two safety screws that prevent the lift to extent further to the preset end stop.

This lift is also available as a 230 V, 50 Hz version.

Brand:
Vogels
Specifications
Product Type:
Projector Lift System
Colour:
Silver
Series:
General

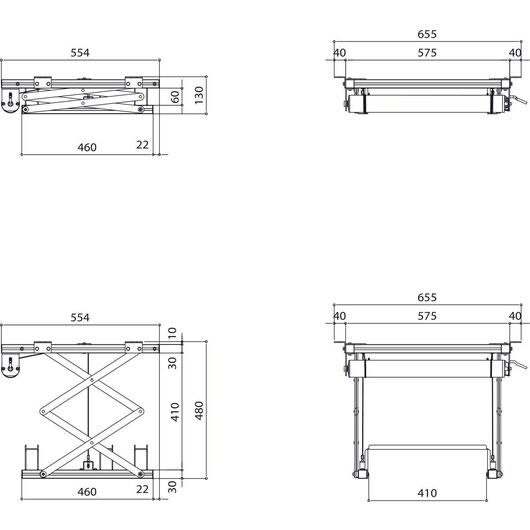

Dimensions
Width:
56.7cm
Depth:
55.4cm
Height:
13 to 48cm
Other
Standards Met:
CE, TUV Certified

PPL 2035-120V 1 (PPL-2035-PPL-2035-120V-installation-and-operation-manual.pdf, 3,988 Kb) [Download]

PPL 2035-120V 2 (7020364_PPL2035-120V_Leaflet_Document_EN.pdf, 309 Kb) [Download]
