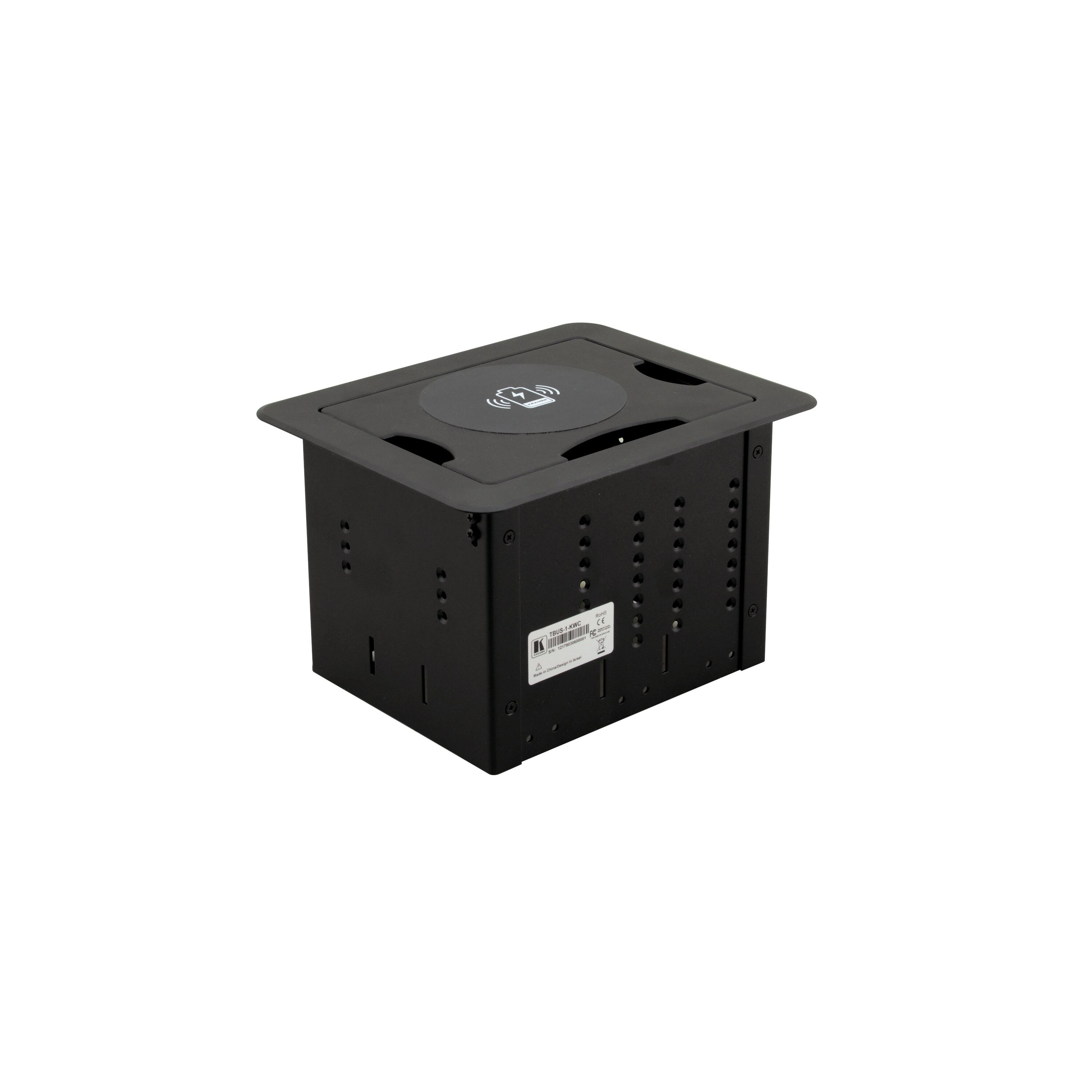

TBUS-1-KWC(BC) Wireless Charging Spot, Aluminium, Anodized, Silver Sand
Please sign in so that we can notify you about a reply
TBUS-203XL(B)TBUS−1−KWC is a modular enclosure using the same inner frames as the TBUS−1Axl and TBUS−1N with an integrated, surface mount, wireless charging spot flush−mounted on the TBUS bezel.
Features
- Integrated Wireless Charging Spot - For mobile phones integrated in the TBUS.
- Flush Surface.
- Power Supply - Requires a supply voltage of 12V DC at 2.0A.
- Current Input - 1A, IEEE 802.15.4 based RF channels.
- Power Output - 6 to 15W.
- Regulatory Compliance - PMA type 3 compliant.
- EMC Emission - EN5502/CISPR22.
- Safety - EN60950-1, EN60950-1, UL60950-1, IEC 60950-1, RoHS, REACH.
- Qi Standard Compliant.
- Cutout Dimensions - 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).
Brand:
Kramer
Part number:
91-011690
Product Type:
TBUS With Wireless Charging Spot
Specifications
Maximum Operating Temperature:
+70°C
Colour:
Silver
Special Features:
Integrated Wireless Charging Spot
Finish:
Anodized
Material:
Aluminium
Humidity:
10 to 90%
Minimum Operating Temperature:
-40°C
Includes:
(6) Self-Locking Ties, Metal Template, Power Supply, Power Supply Bracket
Power
Charging Power Output:
900mA
Charging Efficiency:
73%
Current Rating:
1.25A
Fuse Rating:
6.3A, 250V
Standards
Power Standard Compliance:
Qi
Dimensions
Length:
27.3600cm
Width:
17cm
Height:
13.1cm
Weight:
1.6kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
