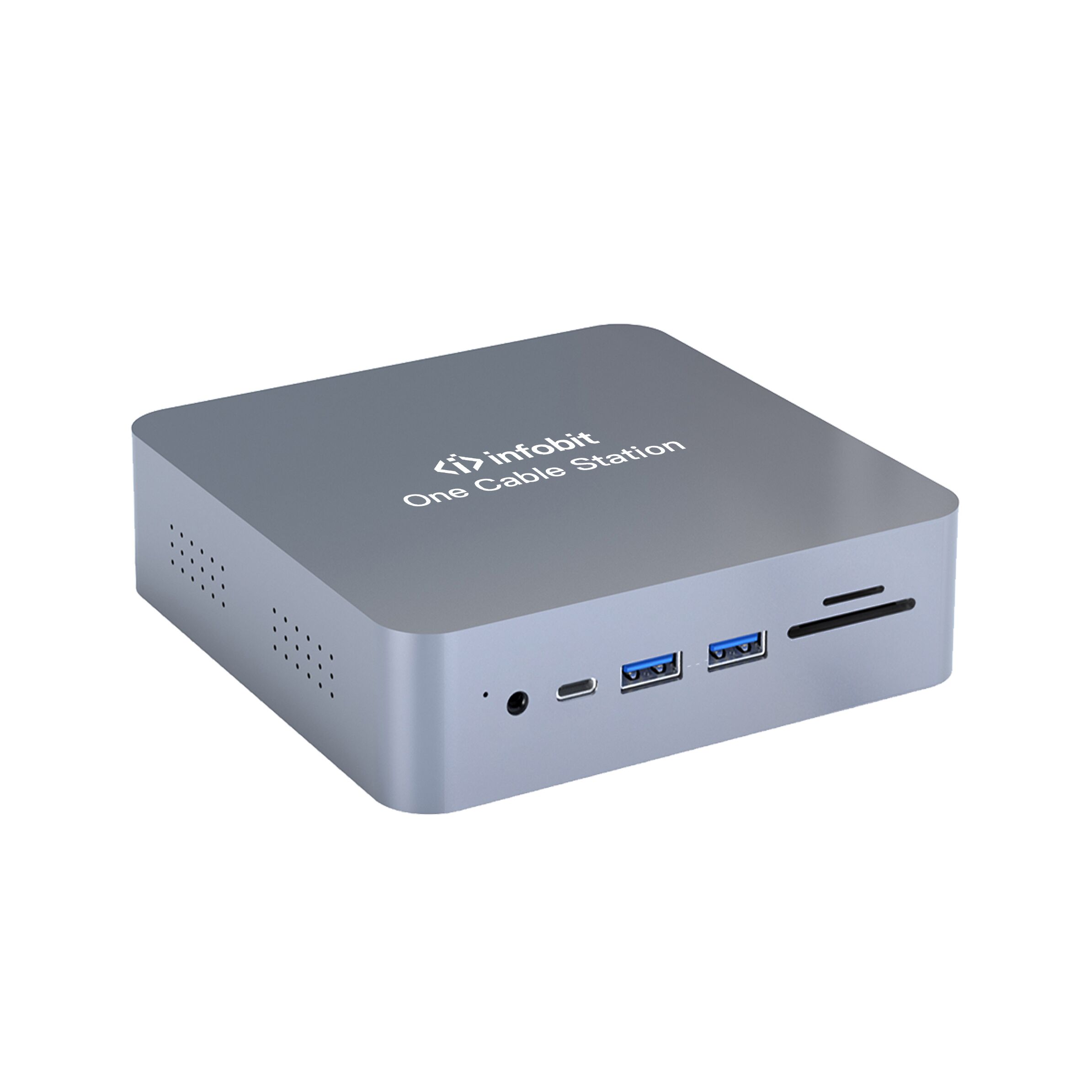

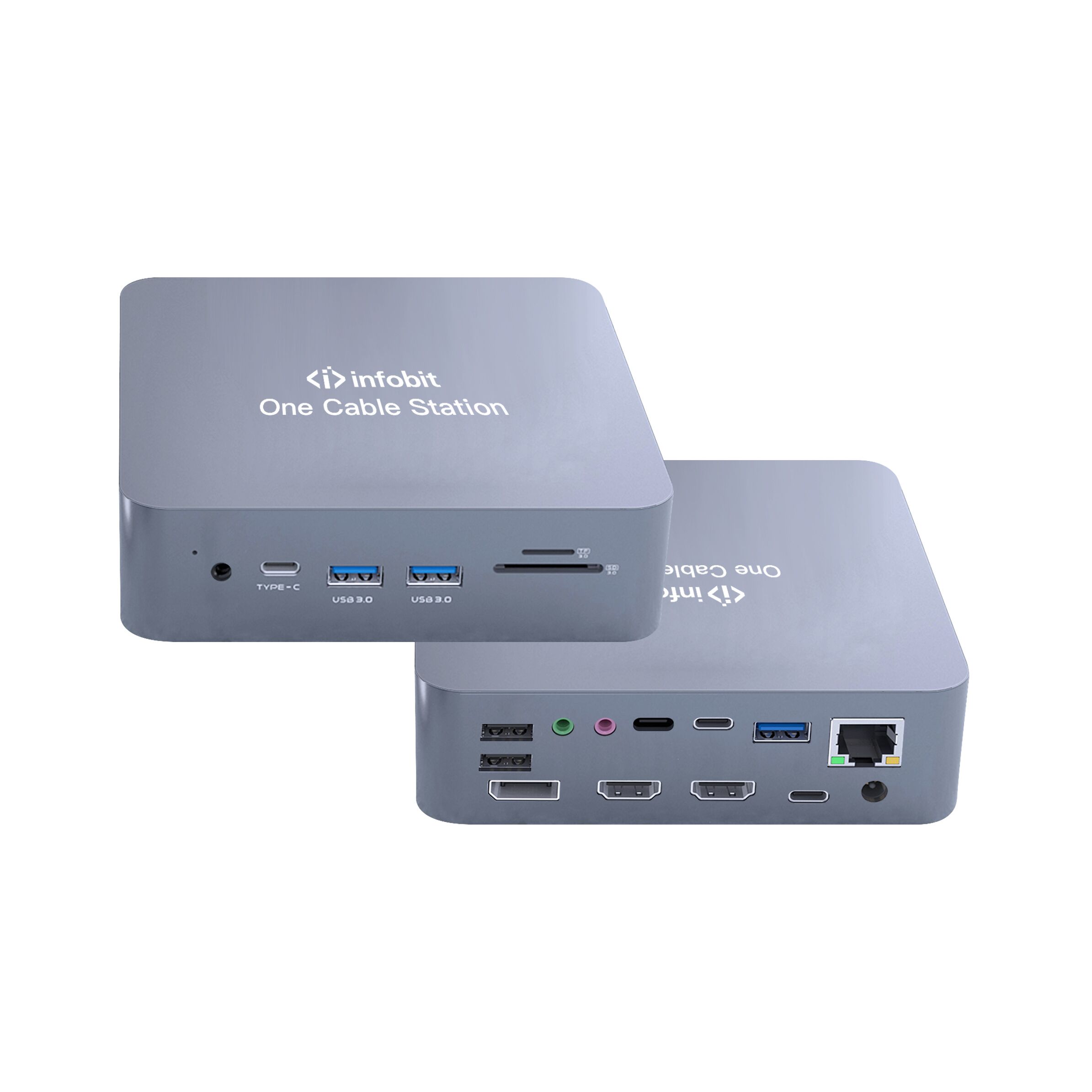

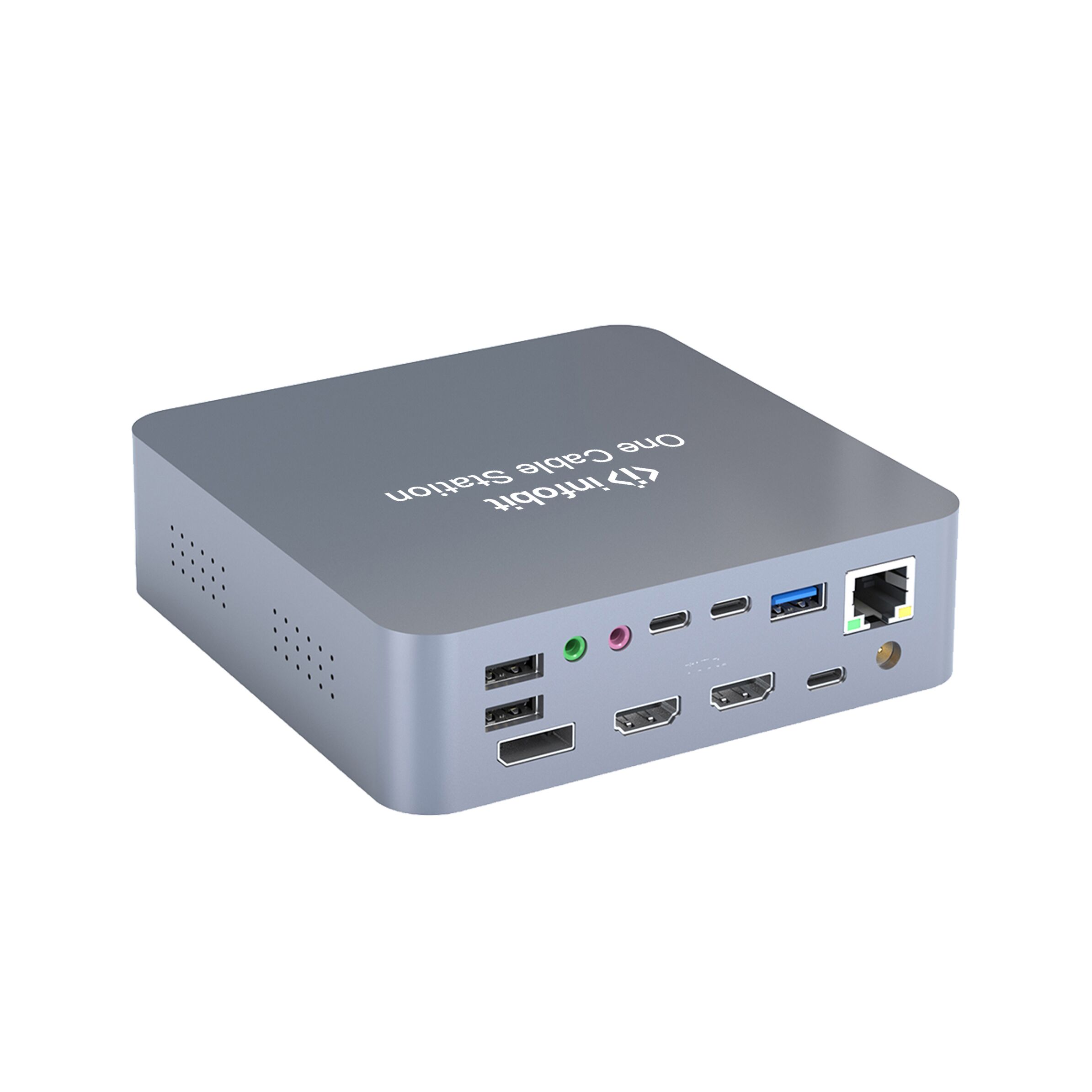

iTrans OCS 181 18 in 1 Cable Station, 4K, 3840x2160pixels
Please sign in so that we can notify you about a reply
The One Cable Station- OCS 181 is a docking station, which is used for port expansion through the TYPE-C port. It expands multiple USB-A ports and USB-C ports for users to choose, and expands 1 DP and 2 HDMI ports at the same time ,it also support 1000/100/10Mbps adaptive RJ45 network port, SD/TF card slot, USB audio 4 section 3.5 interface and 3.5 audio interface with audio/microphone separation. After the product is connected to the power adapter, it provides 60W PD charging to the computer, and the video output supports a maximum of 1 4K/30HZ or two outputs, 1 4K/30HZ and one 1080P
Features- 1x TYPE-C upstream female port: Connects to the host PC, with 60W Power Supply passthrough
- 2x USB-A ports (USB 2.0, 480Mbps): Connect to USB devices like camera, microphone, USB drive, Keyboard/mouse, printer
- 3x TYPE-C female ports (USB 3.0, 5Gbps): for USB data
- 1x 3.5mm audio female port (Audio+Mic): 3.5mm audio head 3-pole/ 4-pole adaptive
Brand:
Infobit
Product Type:
One Cable Station
Specifications
Special Features:
Support Charging the PC
Supported Operating Systems:
Microsoft Windows XP , MAC OS 10.6.2, Linux Fedora FC8
Power Rating:
60W
Humidity:
10 to 90%
Operating Temperature Range:
0 TO +40°C
Performance
Resolution:
3840x2160pixels
Display Resolution:
4Kpixels
Inputs and Ports
Number of Cable Ports:
18
Port Type:
4xUSB Type-C, 5xUSB Type-A, 1x3.5mm Audio, 1x3.5mm Audio/ Mic, 1xRJ45, 2xHDMI, 2xDP Outputs, 1xTF, 1xSD, 1xDC 24V
Power
Current Rating:
4A
Dimensions
Width:
13.3cm
Depth:
3.7cm
Height:
13.3cm
Other
Voltage Rating:
24V DC
Warranty:
1 year
