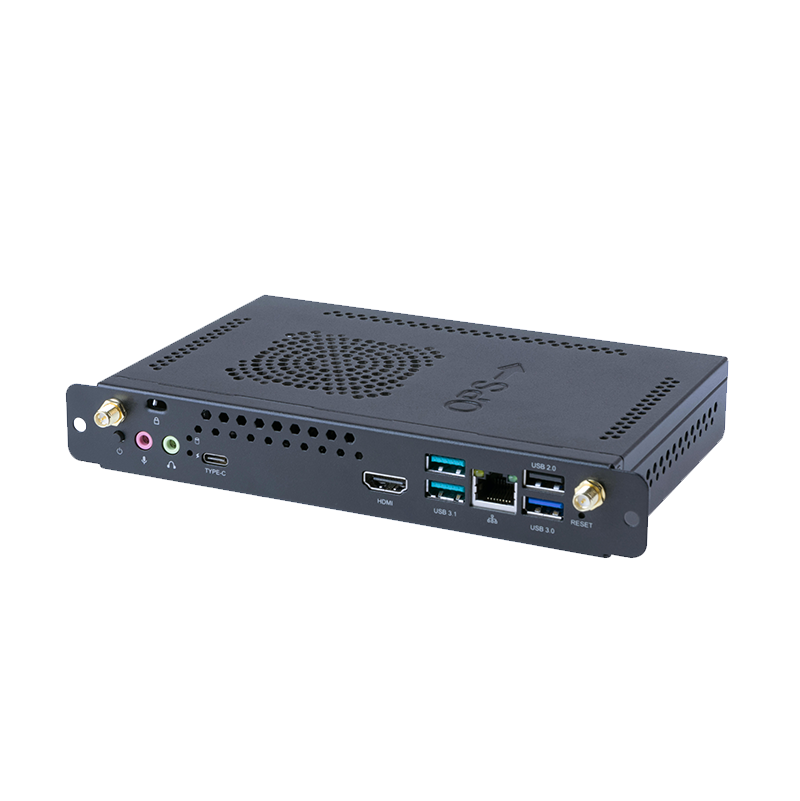

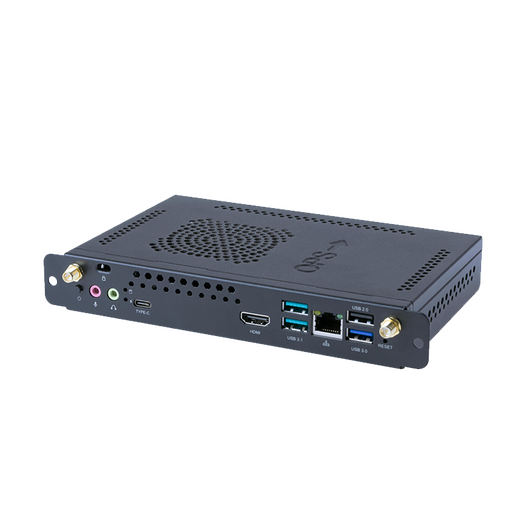

AVC-OPSi7-G10 Avocor OPS PC Module (i7, Windows 10 Pro)
Please sign in so that we can notify you about a reply
Introducing the 10th Generation Intel® Core™ i7 Processor. The Intel® Open Pluggable Specification (OPS) PC is designed to turn your Avocor interactive display into a big-screen all-in-one touch PC.
Features
- 10th Generation “Comet Lake” Intel® Core™ CPU
- 256GB SSD Storage
- 8GB RAM DDR4 2133MHz
- 4K Imagery and playback @ 60Hz
- HDMI Out - Secondary Display Connection
- Windows 10 Pro
- 2 year return to base warranty
- OPS (open pluggable specification) compliant
Brand:
Avocor
Specifications
Product Type:
PC Module
Antenna Type:
External
Maximum Operating Temperature:
45°C
Storage Memory:
256GB
Memory Size:
16GB (RAM)
OS Compatibility:
Windows 10 Pro
Processor Type:
Intel® Core i7-10510U Quad Core (8 Thread)/1.8GHz (4.9GHz Turbo)/6 MB Cache
Maximum Storage Temperature:
70°C
Material:
Metal
Minimum Storage Temperature:
-20°C
Minimum Operating Temperature:
-5°C
Inputs and Ports
Audio Port Type:
Realtek ALC662 HD Audio IC
Input Port Type:
1xGigabit Ethernet RJ45, 2xUSB 3.1 Type A, 1xUSB 3.0 Type A, 1xUSB 2.0 Type A, 1xUSB 3.1 Type C, 1x3.5mm Mic, Dual External Antennas
Output Port Type:
1xHDMI 2.0, 1x3.5mm Line
Connectivity
Wireless Communication Type:
Intel AX200, WiFi Dual Band, Bluetooth 5.0
Networking Port:
Gigabit Ethernet
Dimensions
Width:
18cm
Depth:
11.8cm
Height:
3cm
Weight:
1kg
Shipping Weight:
1.5kg
Other
Voltage Rating:
12 to 19V DC
Warranty:
2yrs
