WP-572/EU(W)-86 Wall Plate Receiver, 1xHDMI, 8 x 8 x 2.9cm, EU/UK, White
Please sign in so that we can notify you about a reply

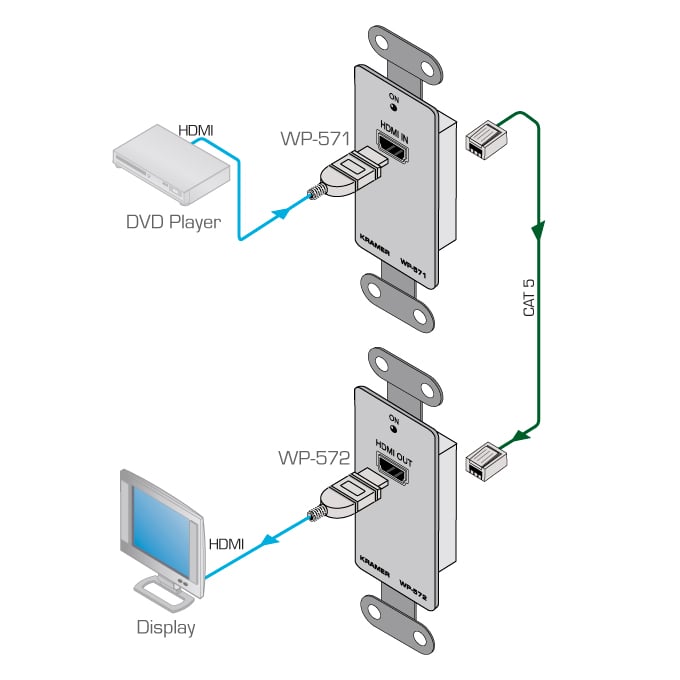

The WP−572 is a PoC DGKat™ twisted pair receiver for HDMI signals. The WP−571 converts an HDMI signal to a single twisted pair signal and the WP−572 converts the twisted pair signal back to an HDMI signal.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- HDMI Support — x.v.Color™, up to 7.1 Uncompressed Audio Channels.
- 3D Pass–Through.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. - EDID PassThru — Passes EDID signals between the source and display.
- ON LED — Lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
- Power Connect™ System — A single connection to the transmitter powers the receiver.
- Dimensions — 3.3cm x 3.6cm x 10.4cm (1.3" x 1.42" x 4.1") W, D, H.
- Wall Plate Size — 1 gang US.
Brand:
Kramer
Part number:
50-80171490
Product Type:
Wall Plate Receiver
Specifications
Colour:
White
Version:
EU 86
Number of Output Connector:
1
Number of Gangs:
1
Performance
Bandwidth:
Up to 4.95Gbps
Inputs and Ports
Output Connector Type:
1xHDMI
Input Port Type:
1xDGKat™ Twisted Pair on a RJ45 Connector
Number of Input Connector:
1
Power
Current Rating:
190mA
Dimensions
Width:
8cm
Depth:
2.9cm
Height:
8cm
Weight:
0.1kg
Other
Voltage Rating:
12V DC
