iTrans USB2-TR100 USB 2.0 Extender, USB 2.0 480Mbps, 100m, Black
Please sign in so that we can notify you about a reply

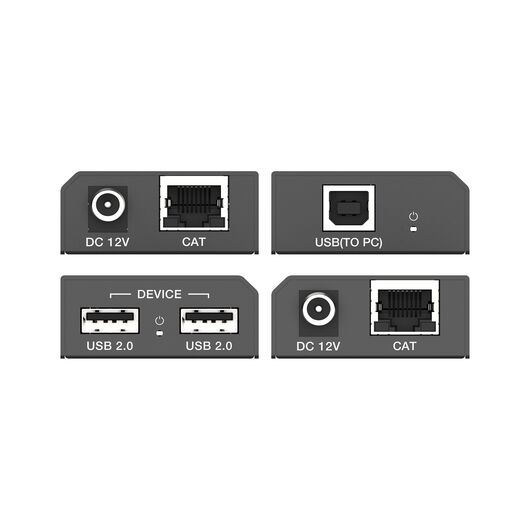

The USB 2.0 Extender can extend USB signal up to 100 meters / 328ft via Cat 5e/6 cable. In transmitter, the USB-B port is connected a PC. In receiver, you can connect a device with USB port at the two USB ports such as U disk or printer, etc. Transmitter and Receiver support PoC (Power over Cable) function. The product can be widely used long distance signal transmission between a PC and USB device. Simple plug and play, no drive and setting installation required.
Features- Supports USB 2.0 protocol, transmission rate up to 480Mbps
- Supports extend distance up to 100 meters / 328ft via CAT 5e/6 cable
- Supports one USB-B port input in the transmitter
- Supports two USB 2.0 ports output in receiver
- Supports the PoC function, which means that either transmitter or receiver is connected powered supply by a 12V/1A power adapter
- Simple plug and play, no drive and setting installation required
- Compact design for easy and flexible installation
Brand:
Infobit
Product Type:
USB 2.0 Extender Kit
Specifications
Cable Type:
CAT6, CAT5e
USB Port Receiver:
USB 2.0 480Mbps
USB Port Transmitter:
USB 2.0 480Mbps
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Easy and Flexible Installation
Maximum Cable Length:
100m
Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×USB 2.0 Extender, 1×USB 2.0 Extender, 1×USB Cable, 1×12V/1A Locking Power Adapter, 1×User Manual
Inputs and Ports
Input Port Type:
1×USB, 1×CAT
Output Port Type:
1×CAT, 2×USB
Power
Current Rating:
1A
Current Rating:
1A
Dimensions
Width:
4.9cm
Width:
4.9cm
Depth:
4.9cm
Depth:
4.9cm
Height:
2cm
Height:
2cm
Weight:
100g
Weight:
100g
Other
Voltage Rating:
100 to 240V AC (Input), 12V DC (Output)
Warranty:
3 year
