CON-FIELD Field Assembly Shielded RJ−45 Connectors for CAT Cable
Please sign in so that we can notify you about a reply

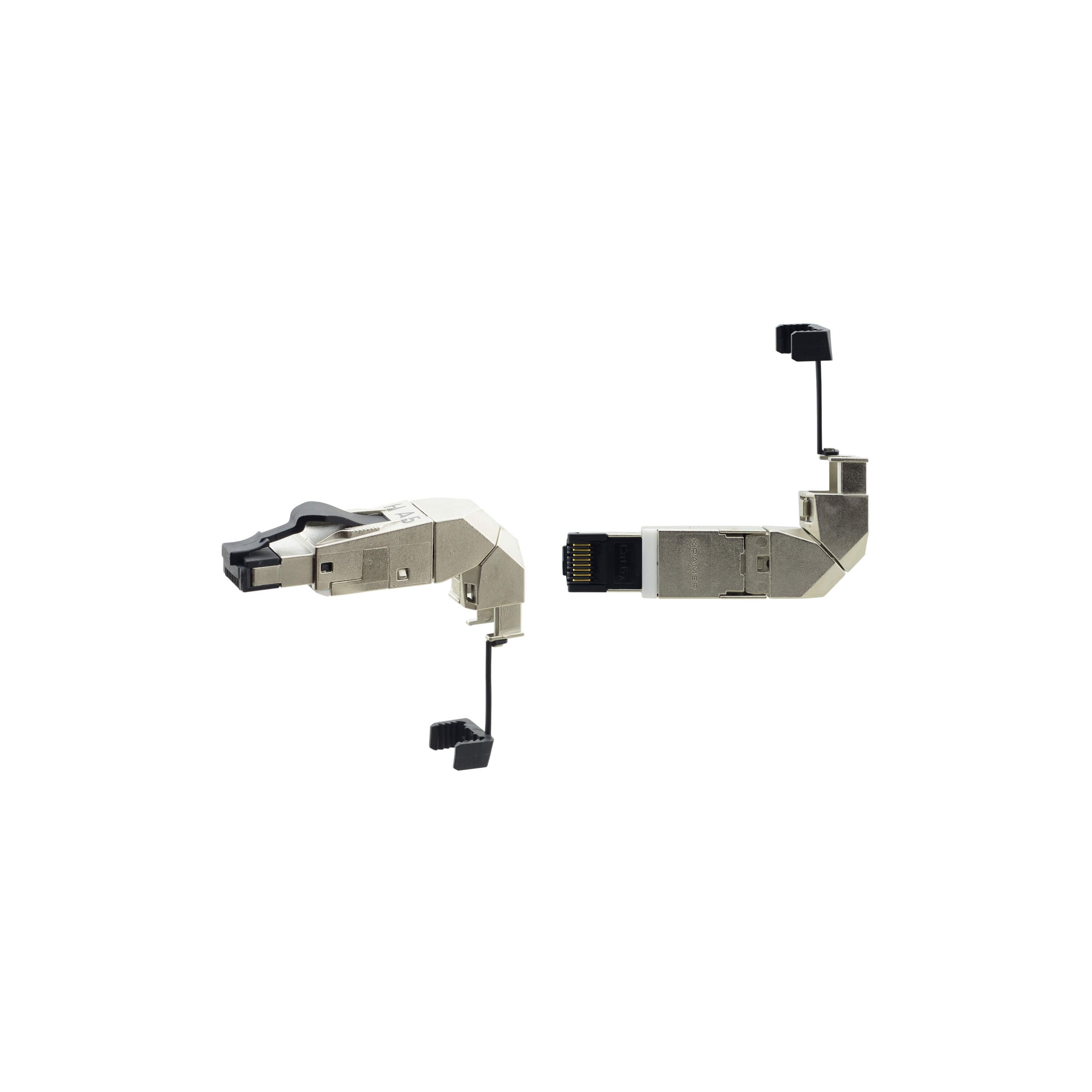

CON−FIELD and CON−FIELD−360 are high−bandwidth, shielded RJ−45 connectors used for terminating Kramer LAN cables. This connector requires no crimping tool to install, and provides fast and reliable termination of shielded twisted−pair cables in the field. The connector is suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE) and HDBaseT.
Features
- CON-FIELD -Fixed connector.
- CON-FIELD-360 -With variable cable entry, 8 positions possible.
- Robust Zinc Die-cast Housing -For industrial use and a protected latch.
- Compact Design -Makes the connector multiport-capable while being fully shielded.
- Easy Assembly -Strain relief snapped on directly to stuffer cap and protected catch, no crimping tool needed.
- Reconnectable for Reuse.
- Transmission Characteristics -CAT 6A per ISO/IEC 11801 Ed.2.2:2011-06.
- Wide Uses -Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT.
- Availability -Both connectors sold in packages of 10.
Brand:
Kramer
Part number:
99-9210180
Product Type:
RJ45
Specifications
Cable Sheath Diameter:
0.5 to 1.05cm
Cable Access/Outlet Type:
180°
Colour:
Black
Contact Material:
Tinned Bronze
Contact Plating:
Nickel-Gold
Series:
Con-Field
Version:
FIELD
Shielded (Yes/No):
Yes
Multi-Port Capability (Yes/No):
Yes
Compatibility:
CAT Cable, Kramer LAN Cables, 10Gb Ethernet, HDBaseT
Latch Material:
Plastic
Strain Relief Type:
Latching Clip
Housing Material:
Die-Cast Zinc
Transmission Technology:
Copper
Operating Temperature Range:
-40 to +70°C
Package Quantity:
10/Pack
Storage Temperature Range:
-40 to 70°C
Performance
Contact Resistance:
20mΩ
Dielectric Strength:
1500V DC
Insulation Resistance:
500MΩ
Power
Current Rating:
1A
Other
Voltage Rating:
50V
Standards Met:
ISO 6A, TI 6A, CLASS (ISO/IEC): EA
