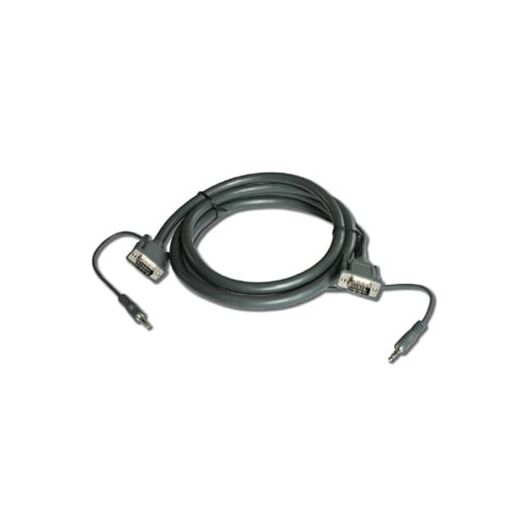

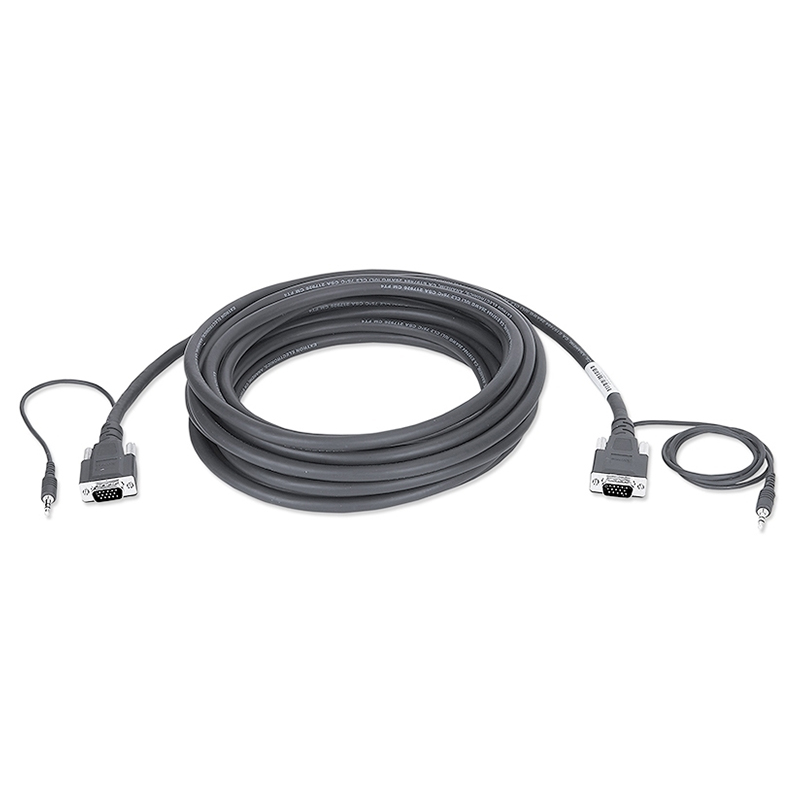

C-GMA/GMA-25 VGA Cable with Stereo Audio 3.5mm Mini Jack, 7.6 m
Please sign in so that we can notify you about a reply
Kramer’s C−GMA/GMA is a high−performance cable with male 15−pin HD and 3.5mm stereo audio connectors at each end. It is perfect for computer graphics video to display installations that require an audio signal as well.
Features
- Quality Construction - Constructed using our rugged and flexible 14–conductor cable
- Easy Connection - Pre–terminated with molded 15–pin HD connectors (male to male), gold–plated pins and thumbscrews and a 3.5mm stereo mini jack
- Easy Installation - Audio leads extend 24in (61cm) beyond the 15–pin HD head at one end, and 2cm (8in) at the other
- All Pins Connected for DDC2 and EDID Support
- Varied Selection of Lengths - Available in versions of 3 to 75ft (.9 to 22.9m)
- Cable Specs - For detailed cable specs, see Kramer BC–3X2T7S
Brand:
Kramer
Part number:
92-2202025
Specifications
Product Type:
VGA Cable with Stereo Audio 3.5mm Mini Jack
Wire Gauge:
26AWG
Coaxial Diameter:
0.26cm
Connector A Type:
VGA, 3.5mm
Connector A Gender:
Male
Connector B Type:
VGA, 3.5mm
Connector B Gender:
Male
Conductor Diameter:
0.048cm
Conductor Material:
Tinned Copper
Outer Diameter:
1cm
Jacket Material:
PVC
Shielding Material:
Aluminium Mylar Foil
Colour:
Black, Dark Grey with White Lettering (Outer Jacket)
Shielding Type:
Spiral
Performance
Impedance Rating:
75Ω
Attenuation:
-14.0dB@400MHz
Capacitance:
57pF
Dimensions
Length:
7.6m
Other
Standards Met:
CL2 UL, c(UL) CL2 CSA
